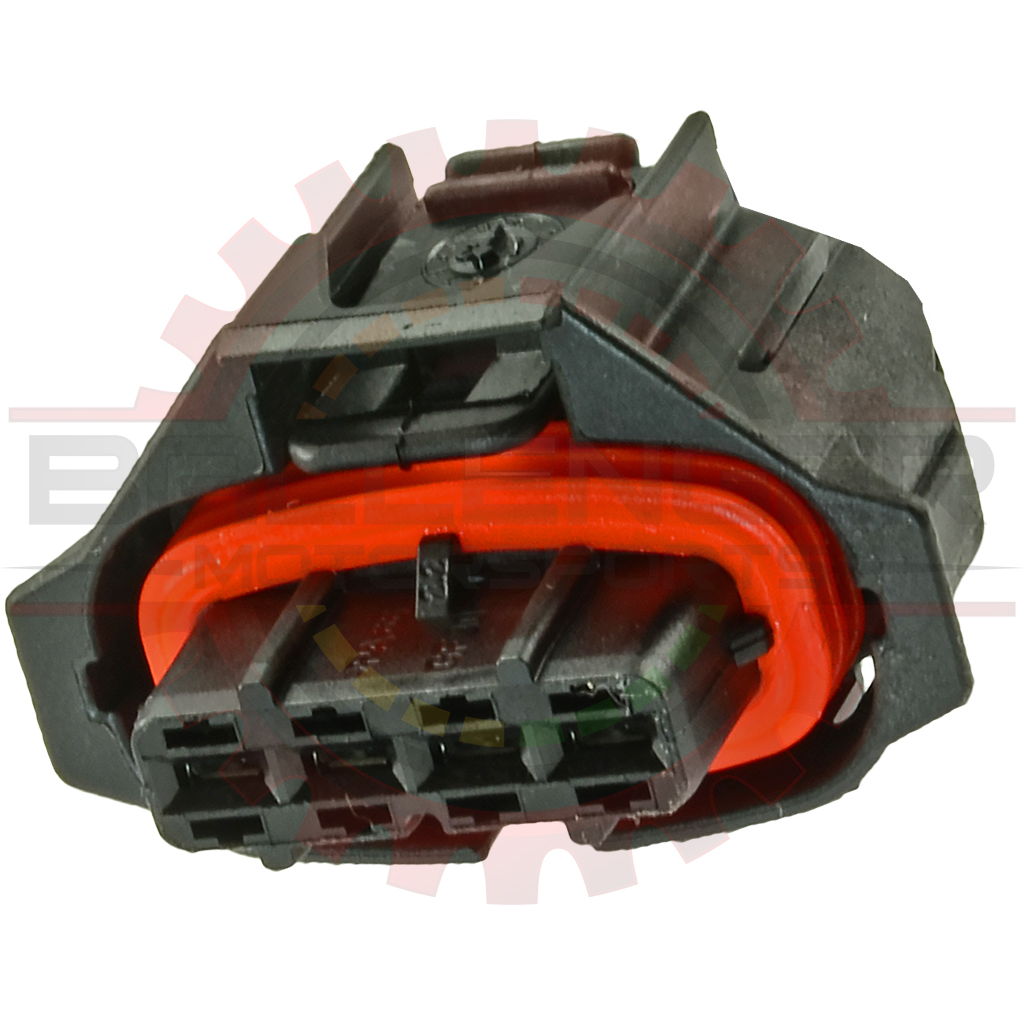

4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)	Part # CONN-100245

Pricing
1 +	$18.99
25 +	$16.99
50 +	$14.99
100 +	$12.99
250 +	$9.99
1000 +	$7.99
Information
Bmotorsports Part #	CONN-100245
Availability	In Stock
Shipping Weight	0.017 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

4-way sealed Plug Bosch BSK Connector Assembly for Bosch MAP Sensor (Connector ONLY!)

Connects to the Bosch sensor sometimes also referred to as the Bosch TMAP Sensor due to the additional of a temperature sensor combined with the MAP sensor.

Bosch Connector# 1 928 403 736 Applications Include:

Bosch MAP Sensor for Saturn Sky / Pontiac Solstice upgrade Kit

Cross References:

Compatible with ACDelco Pigtail PT 1863 & GM Pigtail Part# 88988320
Harley-Davidson Part# 72406-07

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector only	CONN-100245	4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Connector kit	CONN-75722	4-way sealed Plug Bosch BSK Connector Kit for Bosch MAP Sensor
Connector Pigtail	CONN-85722	4-way sealed Plug Bosch BSK Connector Pigtail for Bosch MAP Sensor
Bosch TMap Extension	CONN-85827	4 Way Sealed Receptacle Bosch BSK Connector Extension for Bosch MAP Sensor
Mating Parts
Connector only	CONN-100592	4 Way Sealed Receptacle Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Connector kit	CONN-75826	4 Way Sealed Receptacle Bosch BSK Connector Kit for Bosch MAP Sensor
Connector pigtail	CONN-85826	4 Way Sealed Receptacle Bosch BSK Connector Pigtail for Bosch MAP Sensor
Bosch 1 Bar TMap MAP Sensor	SNSR-03091	Bosch 1 Bar TMap Map Sensor with IAT
Bosch 2.5 Bar TMap MAP Sensor	SNSR-03083	Bosch 2.5 Bar TMap Map Sensor with IAT
Bosch 3 Bar TMap MAP Sensor	SNSR-03085	Bosch 3 Bar TMap Map Sensor with IAT
Bosch 3.5 Bar TMap MAP Sensor	SNSR-03088	Bosch 3.5 Bar TMap Map Sensor with IAT
Bosch 4 Bar TMap MAP Sensor	SNSR-03089	Bosch 4 Bar TMap Map Sensor with IAT

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 2.8mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Part Compatibility

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year Start Year End Make Model Trim Engine Code

1999 2004 Volvo V70

2001 2009 Volvo S60

2001 2009 Volvo S60

2001 2009 Volvo S60

2005 2007 Chevrolet Cobalt SS LSJ

2005 2006 Chevrolet Cobalt LS, LT L61

2006 2006 Chevrolet Cobalt SS LE5

Used In

Part #	Description
CONN-75722	4-way sealed Plug Bosch BSK Connector Kit for Bosch MAP Sensor
CONN-85722	4-way sealed Plug Bosch BSK Connector Pigtail for Bosch MAP Sensor
CONN-85846	Polaris Specific Bosch TMAP Pigtail
CONN-85827	4 Way Sealed Receptacle Bosch BSK Connector Extension for Bosch MAP Sensor
CONN-85824	Ford / Mazda TMAP to Bosch TMAP Adapter
CONN-85935	4 Way MAP to TMAP Adapter for GM Applications
CONN-86199	N55/N54/S55 BMW Harness to Bosch 4 Bar TMAP Adapter
CONN-86223	ND Miata MX-5 TMAP to Bosch TMAP Sensor Adapter
CONN-86331	MCON 1.2 to Bosch BDK TMAP Adapter Harness
