Description

235 lb/hr MRE Adjustable PowerTip 5 Racing Billet Injector (150 - 235 lb/hr range)

THIS PRODUCT IS DISCONTINUED, PLEASE SEE
MOTR-05066 - Atomizer 3 Billet Racing Injectors
FOR UPDATED PRODUCTS

These injectors flow 235 lbs/hr at 43.5 PSI ( 3 BAR ) and are adjustable from 150 to 235! These units are low-impedance and require peak and hold injector drivers or additional resistors for saturation drivers. Despite the high flow rate, they are linear and controllable at low pulse widths compared to other extreme flow injectors!

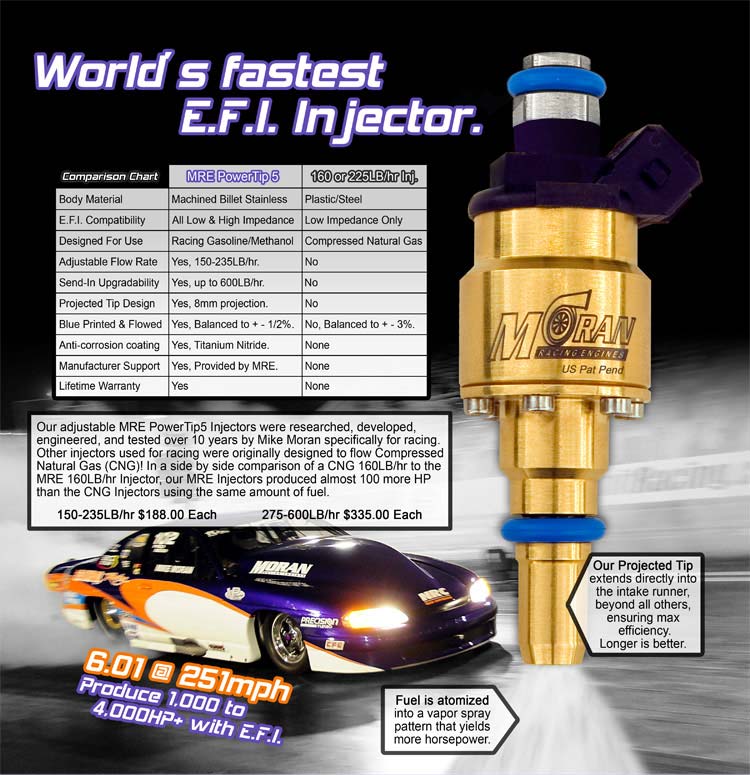

These injectors were designed from the ground up as racing specific injectors by Mike Moran of M.R.E. and have been tested on extreme horsepower applications. The new M.R.E. PowerTip 5 fuel injectors make it easy for EFI engines to produce 1,000 to 4,000 HP with either gasoline or methanol. Machined from a proprietary material, coated with titanium nitride, the PowerTip injectors flow from 150 lb/hr up to 600 lb/hr. The PowerTip 5 was designed as the first purpose built racing fuel injector. The injectors operate linearly with a pulse width as small as 1.5 milliseconds

Features:

• Race Specific Extreme Flow Design
• Excellent response characteristics
• Robust Proprietary, TiN coated Design
• Low Impedance
• Fits in most many applications

• Coil Resistance: 2.4 Ohms / Low Impedance / Low-Z (ECM peak & hold driver or modifications required)
• Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 235 lb/hr = 2466 cc/min
• Turn on time: 1.5ms
• Connector: Bosch EV1
• Series: MRE Powertip 5
• Orifice Type: Single Orifice / Pintle
• Spray Pattern: Large Fog w/Semi-Cone Pattern

• Lifetime Conditional Warranty
• Click here for Instructions, Warranty & Disclaimer
• CRITICAL NOTE! These injectors have no filter basket and must be used with a fine 10 micron Filter!!!
  We strongly recommend using our MRE 10 Micron Stainless Steel Methanol Safe Filter - MOTR-05054 - click here

Mating Parts

Connector only:

• CONN-10659 - GM Delphi / Packard - Bosch EV1 Type Injector Connector ( connector only ) Push to seat

• CONN-75660 - GM Delphi / Packard - Bosch EV1 Type Injector Connector Kit Push to seat

• CONN-85660 - GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat

Specifications

Specifications:

• Coil Resistance: 2.4 Ohms / Low Impedance / Low-Z (ECM peak & hold driver or modifications required)
• Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 235 lb/hr = 2466 cc/min
• Turn on time: 1.5ms
• Connector: Bosch EV1
• Series: MRE Powertip 5
• Orifice Type: Single Orifice / Pintle
• Spray Pattern: Large Fog w/Semi-Cone Pattern
