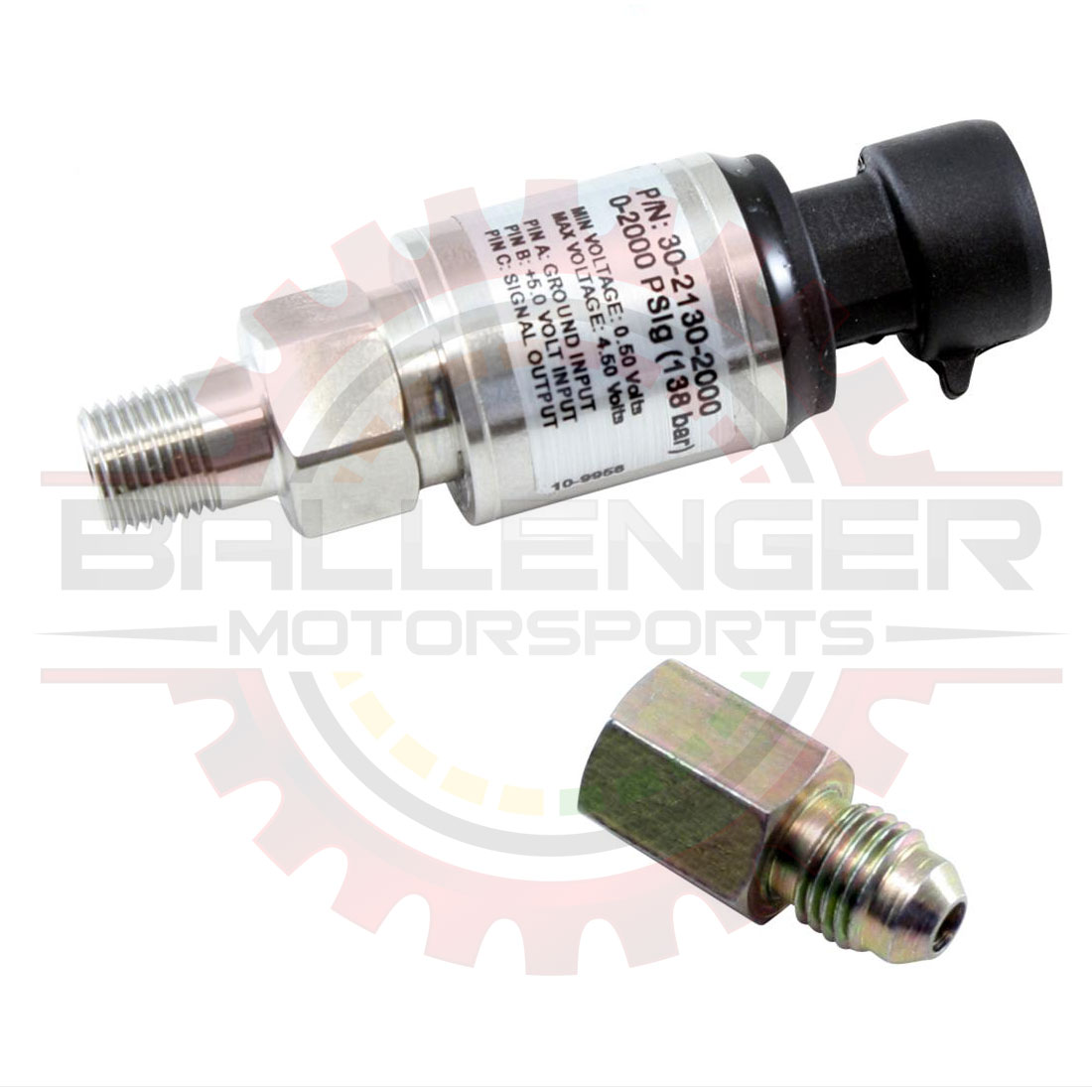

AEM 2000 PSIG Pressure Sensor Kit - PN 30-2130-2000 Part # SNSR-03086
AEM 2000 PSIG Pressure Sensor Kit - PN 30-2130-2000
Pricing
1 + $179.95
Information
Bmotorsports Part # SNSR-03086
Availability In Stock
Shipping Weight 0.5 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

FEATURES:

  • One-Piece Stainless Steel Construction
  • Cost Effective
  • Robust Design
  • Excellent Accuracy
  • Wide Operating Temperature Range
  • Industrial Grade Design Ideal for Harsh Environments
  • More precise, more accurate & more reliable as compared to OEM type sensors
Specifications:
  • 1/8 NPT Sealing Thread
  • 0.5 to 4.5 volt ratiometric output (0 psi at 0.5 volts and 2000 psi at 4.5 volts, linear between these points)
  • 3-way circular metripack connector
  • Includes mating connector with 12” leads, 1Red (Supply Voltage, 4.7-7.0 Vdc), Black (Ground), Green (Output)
  • Requires 5 volt DC supply voltage and analog ground
  • Accuracy: <0.50% Full Scale
  • Temp Drift: <0.50% Full Scale
  • Stability: <0.25% Full Scale/Year
  • Operating Temp: -40C to 105C
  • Burst Pressure: 5 x Full Scale
  • Response Time: < 1mS
  • Wetted Materials: 304L & 316L Stainless Steel
  • Vibration: 20G’s peak to peak sinusoidal
  • Weight: <85g
  • Supply Current: 5mA MAX. at 5 Vdc



Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector Only CONN-100890
Connector Kit CONN-759633 Way GM / AEM Pressure Sensor Receptacle Connector Kit
Connector Pigtail CONN-859633 Way GM / AEM Pressure Sensor Receptacle Connector Pigtail
Mating Parts
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Only CONN-51764GM Delphi / Packard - 3-way GT150 replacement assembly for 3-way MP 150.P2S (3 pin circular connector for sensors)
Connector Kit CONN-75732GM Delphi / Packard - 3-way GT150 replacement kit for 3-way MP 150.P2S (3 pin circular connector kit for sensors)
Pigtail CONN-85732GM Delphi / Packard - 3-way GT150 replacement Pigtail for 3-way MP 150.P2S (3 pin circular connector for sensors)
STi & RX-7 harness adapter CONN-859453 Way MAP / Pressure Sensor Adapter for Subaru STi, Mazda RX-7 & others
Extension
Extension CONN-859643 Way GM / AEM Pressure Sensor Extension
Associated Sensors
Stainless 0-100 PSIG Sensor SNSR-033550-100 psi Pressure Sensor / Industrial Stainless Steel Isolated Pressure Transducer
AEM Stainless 2 Bar MAP SNSR-03079AEM 2 bar MAP ( 30 PSIA ) Pressure Sensor Kit - PN 30-2130-30
AEM Stainless 3.5 Bar MAP SNSR-03078AEM 3.5 bar MAP ( 50 PSIA ) Pressure Sensor Kit - PN 30-2130-50
AEM Stainless 5 Bar MAP SNSR-03077AEM 5 bar MAP ( 75 PSIA ) Pressure Sensor Kit - PN 30-2130-75
AEM Stainless 100PSIG SNSR-03082AEM 100 PSIG Pressure Sensor Kit - PN 30-2130-100
AEM Stainless 150PSIG SNSR-03076AEM 150 PSIG Pressure Sensor Kit - PN 30-2130-150
AEM Stainless 500PSIG SNSR-03087AEM 500 PSIG Pressure Sensor Kit - PN 30-2130-500
AEM Stainless 1000PSIG SNSR-03092AEM 1000 PSIG Pressure Sensor Kit - PN 30-2130-1000
AEM Stainless 2000PSIG SNSR-03086AEM 2000 PSIG Pressure Sensor Kit - PN 30-2130-2000
AEM Brass 15 PSIG Sensor kit SNSR-03093AEM 15 PSIG Brass Pressure Sensor kit - PN 30-2131-15G
AEM Brass 2 Bar MAP SNSR-03094AEM 2 Bar MAP (30PSIA) Brass Pressure Sensor kit - PN 30-2131-30
AEM Brass 3.5 Bar MAP SNSR-03095AEM 3.5 Bar (50 PSIA) Brass Pressure Sensor kit - PN 30-2131-50
AEM Brass 5 Bar MAP SNSR-03096AEM 5 Bar MAP (75 PSIA) Brass Pressure Sensor kit - PN 30-2131-75
AEM Brass 100 PSIG SNSR-03097AEM 100 PSIG Brass Pressure Sensor kit - PN 30-2131-100
AEM Brass 150 PSIG SNSR-03098AEM 150 PSIG Brass Pressure Sensor kit - PN 30-2131-150

Specifications

Click here for PDF specifications
