2 Bar Late Model GM Style Map Sensor	Part # SNSR-03084

Pricing
1 +	$74.99
5 +	$68.99
10 +	$66.99
Information
Bmotorsports Part #	SNSR-03084
Availability	Out Of Stock
Shipping Weight	0.15 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

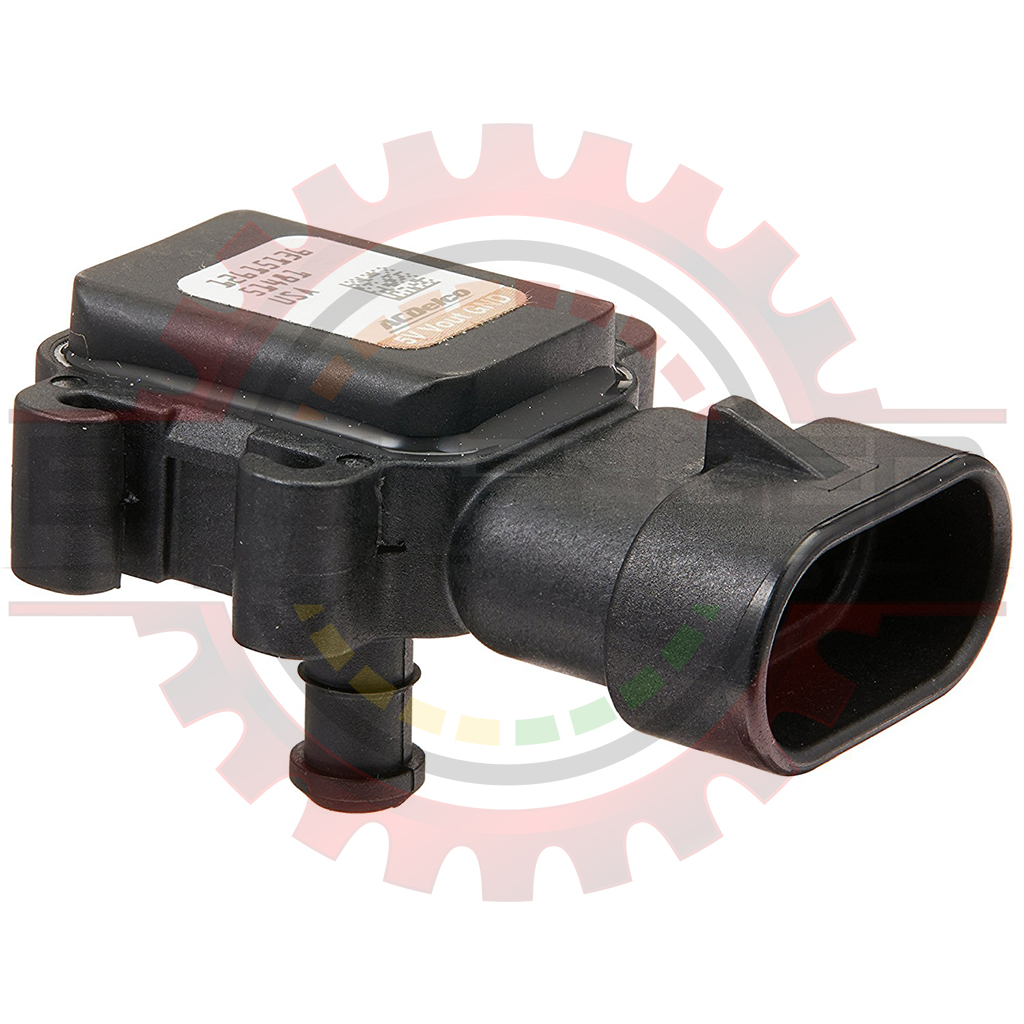

2 Bar Late Model GM Style Map Sensor

This 2 bar GM MAP sensor will fit many late model GM applications originally equipped with a 1 bar sensor. Some applications may require removal of some clips or additional retention methods to accommodate higher boost pressure compared to the 1 bar mounting system. Most sensors do not come with a replacement grommet.

Specifications

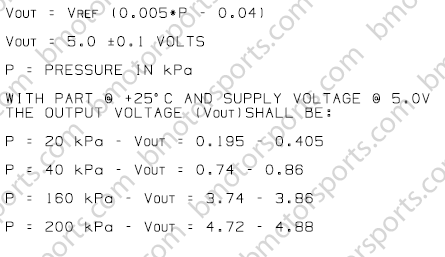

2 Bar Late Model GM Style Map Sensor Technical Specifications - Chart

Associated & Mating Parts

Relationship	Part #	Description
Mating Parts
1 Bar GM Style Map Sensor	SNSR-03099	1 Bar Late Model GM Style Map Sensor
2 Bar GM Style Map Sensor	SNSR-03084	2 Bar Late Model GM Style Map Sensor
Mating Parts
Terminals	CONN-56256	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector	CONN-52058	GM Delphi / Packard - 3 way flat metripack 150 connector for map & crank, gray
Connector Kit	CONN-75595	GM Delphi / Packard - 3 Way Metripack 150 Plug Connector Kit for MAP & Crank, Gray
Connector Pigtail	CONN-85595	GM Delphi / Packard - 3 Way Metripack 150 Plug Connector Pigtail for MAP & Crank, Gray
