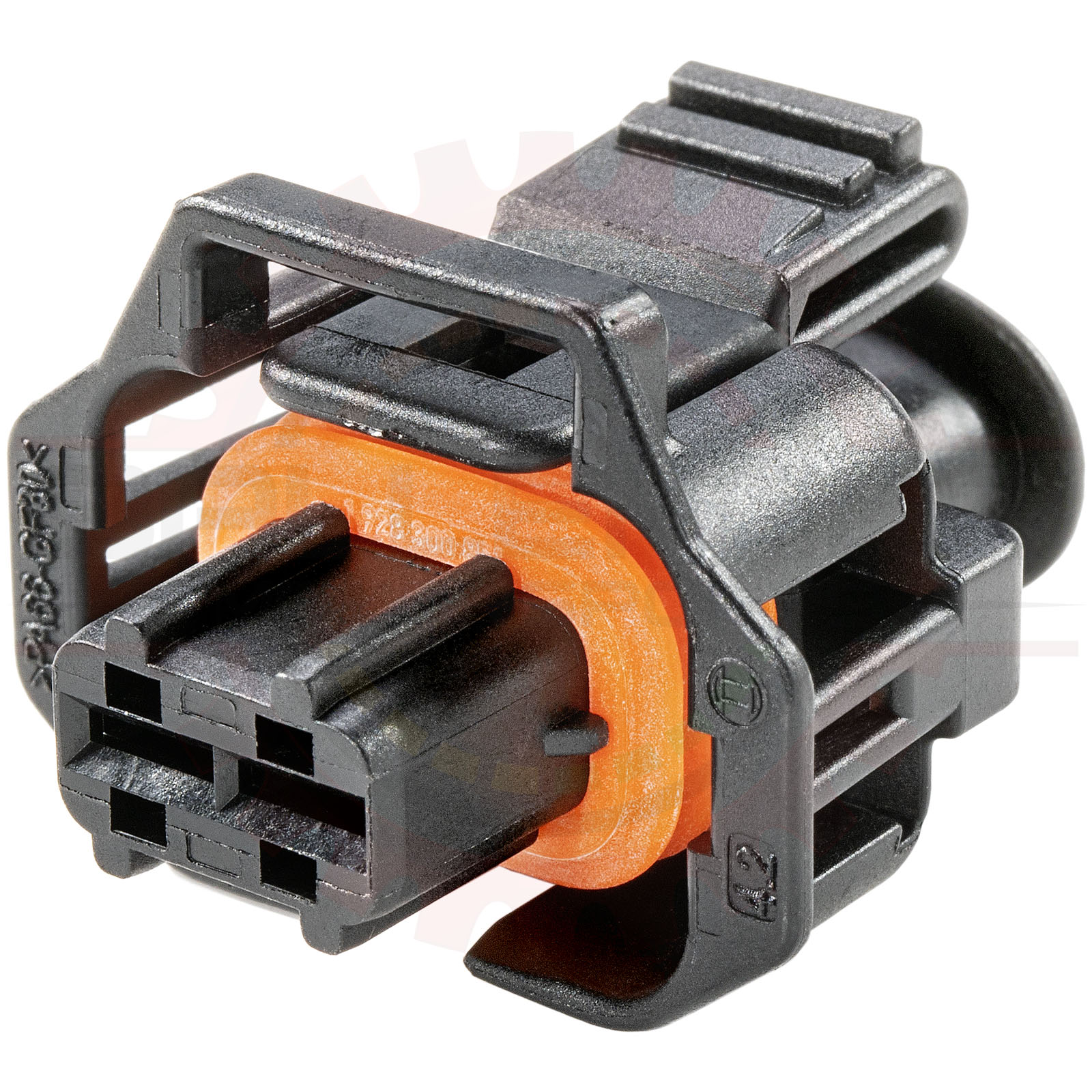

2 Way sealed Plug Bosch Connector Assembly for Solenoid	Part # CONN-11564

Pricing
1 +	$9.99
25 +	$7.99
50 +	$5.49
100 +	$3.99
250 +	$2.99
500 +	$1.99
Information
Bmotorsports Part #	CONN-11564
Availability	In Stock
Shipping Weight	0.03 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

2 Way sealed Plug Bosch Connector Assembly for Solenoid

Applications Include:

Bosch Common Rail Diesel Connector
Motorcycle Clutch Solenoid
Bosch Solenoid
Clutch Pressure Connector
Connects to Bosch temp sensor # 0 281 002 170
Connects to Bosch KS-P Knock sensor # 0 261 231 120
Connects to Bosch KS1-P Knock sensor # 0 261 231 120
Connects to Bosch KS4-P Knock sensor #0 261 231 173 (Bosch Kompact 1.1a style connector)
**JPT version Equivalent** of BSK/BDK connector F 02U B00 966-01 / 1928403874
**JPT version** **Shrouded version** of unshrouded BSK/BDK connector # 1928404072
also 1928403698 (JPT)

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
24-22 AWG Terminal	CONN-10574	Junior Power Timer Female Terminal for 0.20-0.35mm2 (24-22 AWG)
20-16 AWG Terminal	CONN-10575	Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
16-12 AWG Terminal	CONN-10576	Junior Power Timer Female Terminal for 16 - 12 gauge wire
Cable seal 20-16AWG	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Cable seal 16-14 AWG	CONN-56058	GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
Cavity Plug	CONN-56059	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug
Connector Plug	CONN-11564	2 Way sealed Plug Bosch Connector Assembly for Solenoid
Mating Parts
Connector Receptacle	CONN-11554	2-way sealed Receptacle Bosch Connector for Solenoid

Applications:

Applications:

Year	Make	Model	Engine / Trim	Application
1996-2001	Cadillac	Catera	V6	Water temperature sensor
2004	Polaris	MSX	110	Water temperature sensor
2006	Polaris	FST	Switchback, classic, Touring	Water temperature sensor
2012	Polaris	TURBO IQ	base, LX, LXT	Water temperature sensor
2013	Polaris	IQ TURBO	LXT	Water temperature sensor
2013	Polaris	FS Widetrack IQ	LXT	Water temperature sensor
2014	Polaris	IQ TURBO	LXT	Water temperature sensor
2014	Polaris	FS Widetrack IQ	LXT	Water temperature sensor

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 2.8mm
Terminal Type Flat

Part Compatibility

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year Start Year End Make Model Trim Engine Code

2001 2010 Chevrolet Silverado 2500HD LB7, LBZ, LLY, LMM

2011 2015 Chevrolet Silverado 2500HD LML
