EV1 Connector Pigtail (Rare) with offset keyway for some Nissan Applications	Part # CONN-85755

Pricing
1 +	$24.99
100 +	$22.50
1000 +	$18.50
Information
Bmotorsports Part #	CONN-85755
Availability	Special Order
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

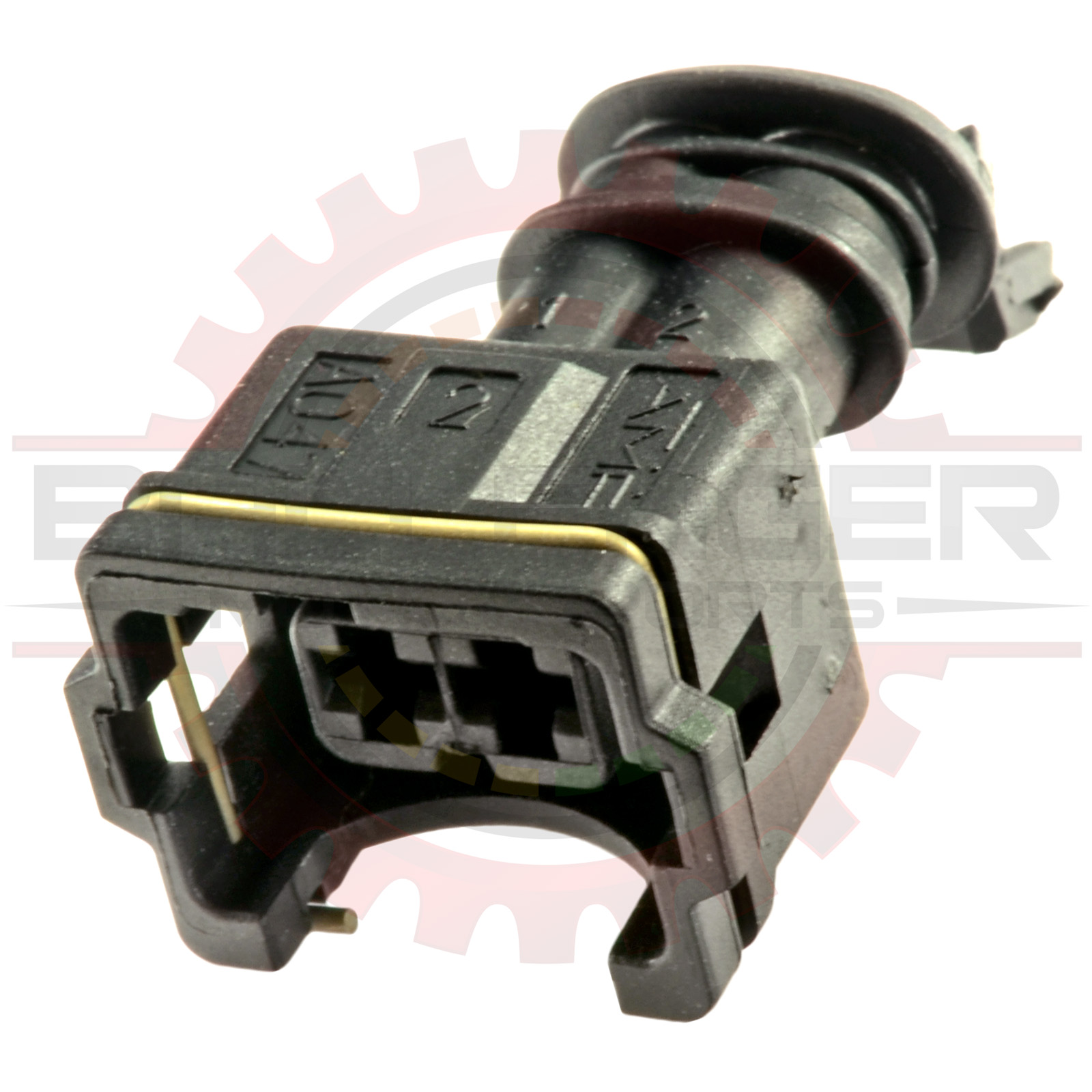

EV1 Connector Pigtail (Rare) with offset keyway for some Nissan Applications (see applications tab). Preassembled and includes connector, front lock, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-10575	Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Only	CONN-10662	EV1 Connector (Rare) with offset keyway for some Nissan Applications (2 way, connector only )
Connector Kit	CONN-75755	EV1 Connector Kit (Rare) with offset keyway for some Nissan Applications
Connector Pigtail	CONN-85755	EV1 Connector Pigtail (Rare) with offset keyway for some Nissan Applications

Applications

VG30DETT Injector Connector (Early Style)
Nissan 300zx 90-94 Twin Turbo
Nissan 300zx 90-92 (and 93 Convertible) Non Turbo
Nissan 300zx 84-89 300ZX
Nissan Maxima 1990-1992 V6

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 2.8mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 1 x 16AWG Automotive TXL Wire Black Part # WIRE-00460s
	» 2 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 2 x Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG) Part # CONN-10575
	» 1 x EV1 Connector (Rare) with offset keyway for some Nissan Applications (2 way, connector only ) Part # CONN-10662
