2 Way Sumitomo MT Receptacle Connector Kit	Part # CONN-75761

Pricing
1 +	$7.49
25 +	$7.25
50 +	$6.99
100 +	$5.49
400 +	$4.99
Information
Bmotorsports Part #	CONN-75761
Availability	In Stock
Shipping Weight	0.075 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

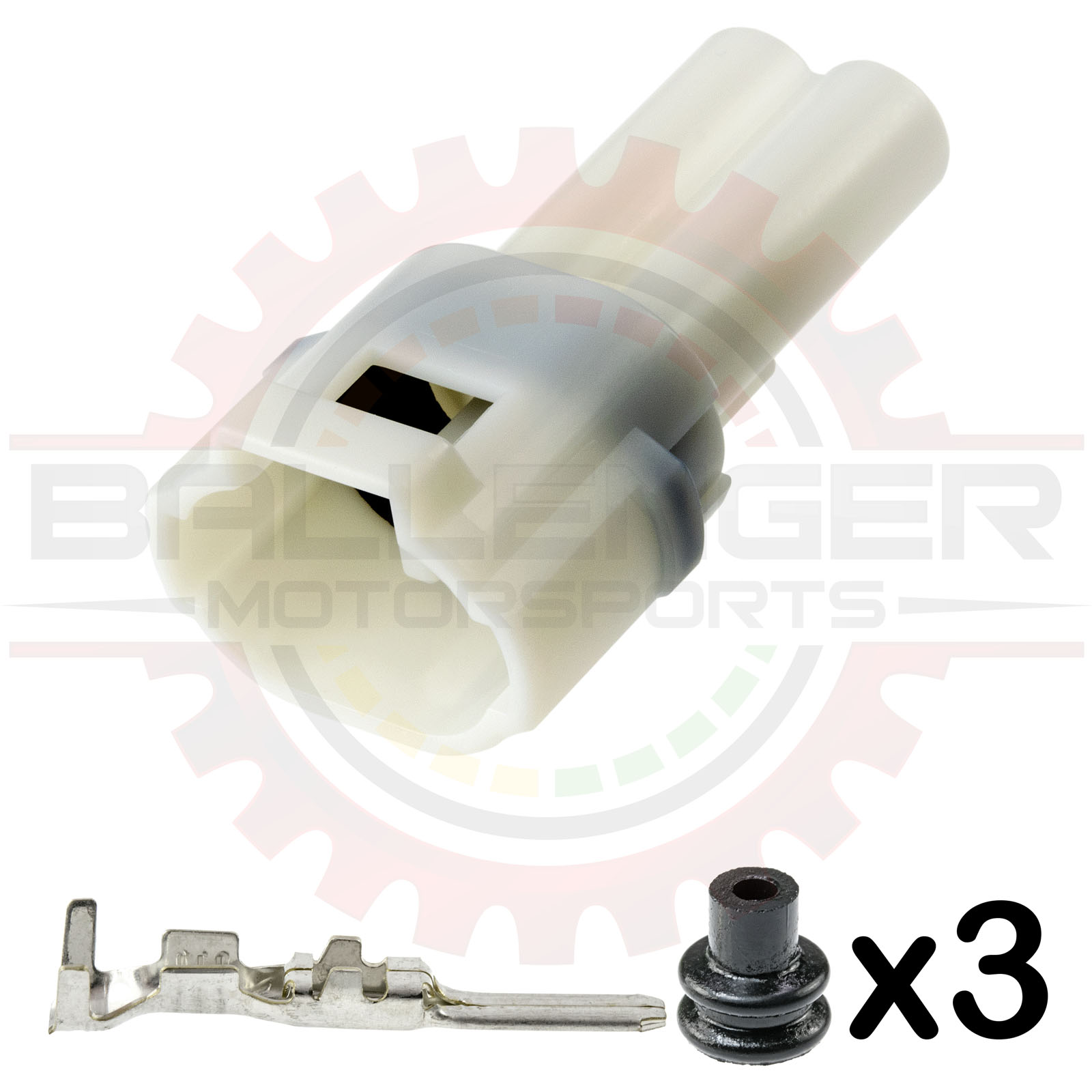

2 Way Sumitomo MT Receptacle Connector Kit. Connector Kit. Terminals and seals are included.

Used as the reverse sensor connector (device side) for some Toyota manual transmissions
Also used on 1989-1994 Suzuki Swift SOHC distributor harness connection.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Only	CONN-100517	2 Way Sumitomo MT Receptacle Connector
Terminals	CONN-00115	Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
High strain relief wire seals	CONN-00146	Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Kit	CONN-75761	2 Way Sumitomo MT Receptacle Connector Kit
Connector Pigtail	CONN-85761	2 Way Sumitomo MT Receptacle Connector Kit
Mating Parts
Connector Only	CONN-100516	2 Way Sumitomo MT Plug Connector 90980-11142
Terminals	CONN-11656	Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
High strain relief wire seals	CONN-00146	Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Kit	CONN-75760	2 Way Sumitomo MT Plug Connector Kit
Connector Pigtail	CONN-85760	2 Way Sumitomo MT Plug Connector Pigtail

Applications

Toyota R154 Reverse Sensor Connector
Toyota W58 Reverse Sensor Connector
Toyota Connector# 90980-11141
1989-1994 Suzuki Swift SOHC distributor harness connector
1989-1997 Geo Metro 1.0L distributor harness connector
1992-1997 Geo Metro 1.3L distributor harness connector

Specifications

Parameter Value
Number of Ways 2
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 16

This product contains the following items:
	» 3 x Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle Part # CONN-00115
	» 3 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 1 x 2 Way Sumitomo MT Receptacle Connector Part # CONN-100517
