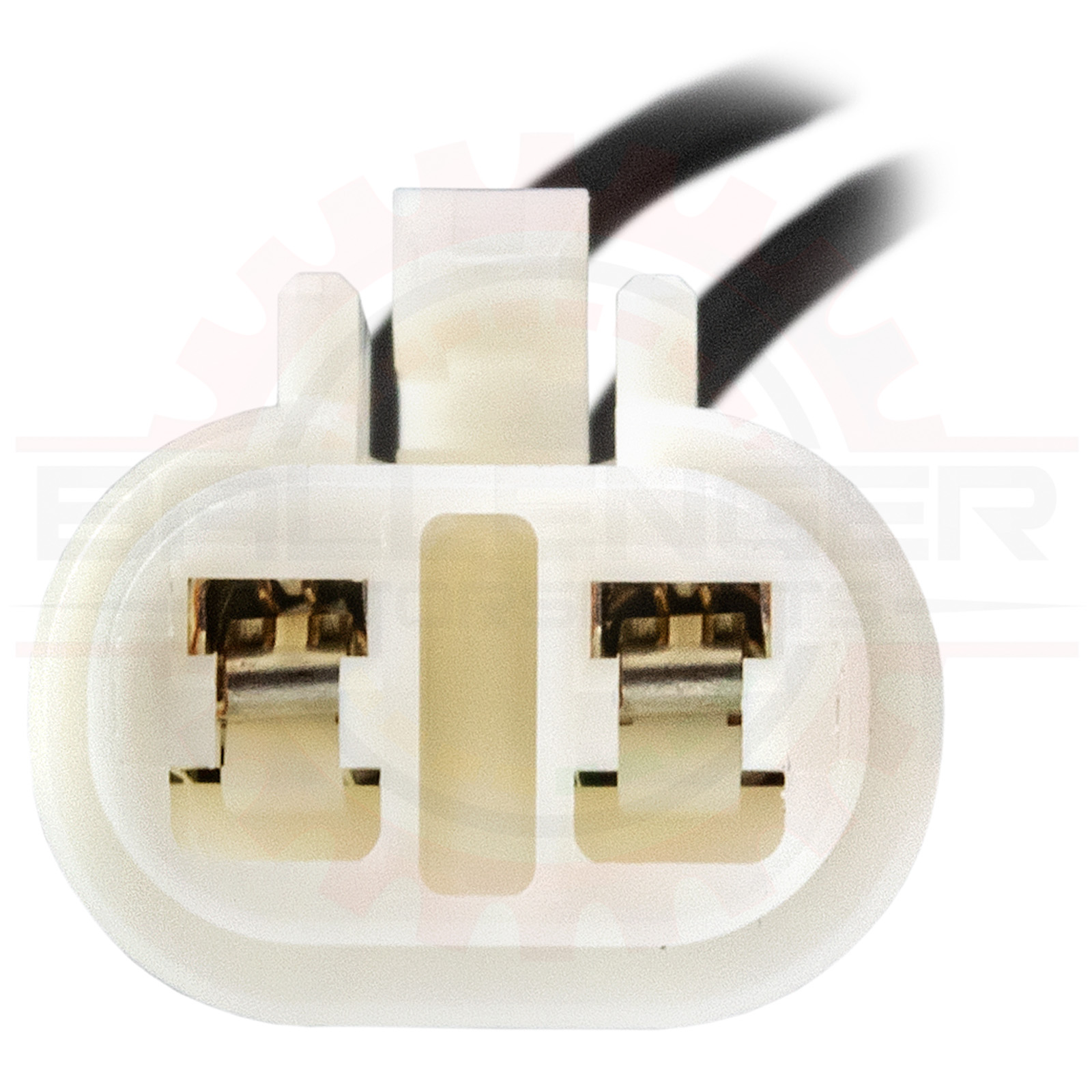

2 Way Sumitomo MT Plug Connector Pigtail Part # CONN-85760
2 Way Sumitomo MT Plug Connector Pigtail 2 Way Sumitomo MT Plug Connector Pigtail 2 Way Sumitomo MT Plug Connector Pigtail
Pricing
1 + $8.99
25 + $8.75
50 + $8.49
100 + $7.99
Information
Bmotorsports Part # CONN-85760
Availability In Stock
Shipping Weight 0.15 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

2 Way Sumitomo MT Plug Connector Pigtail. Connector Pigtail. A completed pigtail is provided with 12" leads.

Commonly used as the reverse sensor connector on some Toyota manual transmissions
Fits 2021 Polaris Matryx 850 Ignition Coil / Coilpack Part # 4017655
Also used as 1989-1994 Suzuki Swift SOHC distributor ignition connectors


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector Only CONN-1005162 Way Sumitomo MT Plug Connector 90980-11142
Terminals CONN-11656Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
High strain relief wire seals CONN-00146Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
Cavity Plug CONN-100550Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Kit CONN-757602 Way Sumitomo MT Plug Connector Kit
Connector Pigtail CONN-857602 Way Sumitomo MT Plug Connector Pigtail
Mating Parts
Connector Only CONN-1005172 Way Sumitomo MT Receptacle Connector
Terminals CONN-00115Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
High strain relief wire seals CONN-00146Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
Cavity Plug CONN-100550Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Kit CONN-757612 Way Sumitomo MT Receptacle Connector Kit
Connector Pigtail CONN-857612 Way Sumitomo MT Receptacle Connector Pigtail

Applications

  • Toyota R154 Reverse Sensor Harness Connector
  • Toyota W58 Reverse Sensor Harness Connector
  • Toyota Connector Repair # 90980-11142
  • 1989-1994 Suzuki Swift SOHC distributor connector
  • 1989-1997 Geo Metro 1.0L
  • 1992-1997 Geo Metro 1.3L
  • Polaris Ignition Coil Part # 4017655


Specifications

Parameter Value
Number of Ways2
GenderPlug/Male
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge22
Max. Wire Gauge16

This product contains the following items:
Labor $0.25/minute» 15 x Labor $0.25/minute
Part # LABR-00001
18AWG Automotive TXL Wire Black» 2 x 18AWG Automotive TXL Wire Black
Part # WIRE-00459s
Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]» 2 x Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Part # CONN-11656
Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 2 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Part # CONN-00145
2 Way Sumitomo MT Plug Connector 90980-11142» 1 x 2 Way Sumitomo MT Plug Connector 90980-11142
Part # CONN-100516
