2 Way Sumitomo HX 040 Plug Connector Kit	Part # CONN-75781

Pricing
1 +	$7.99
100 +	$6.49
500 +	$5.49
Information
Bmotorsports Part #	CONN-75781
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

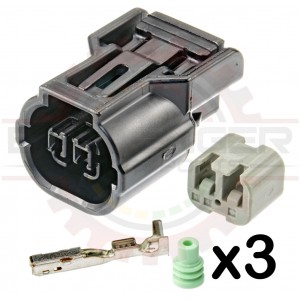

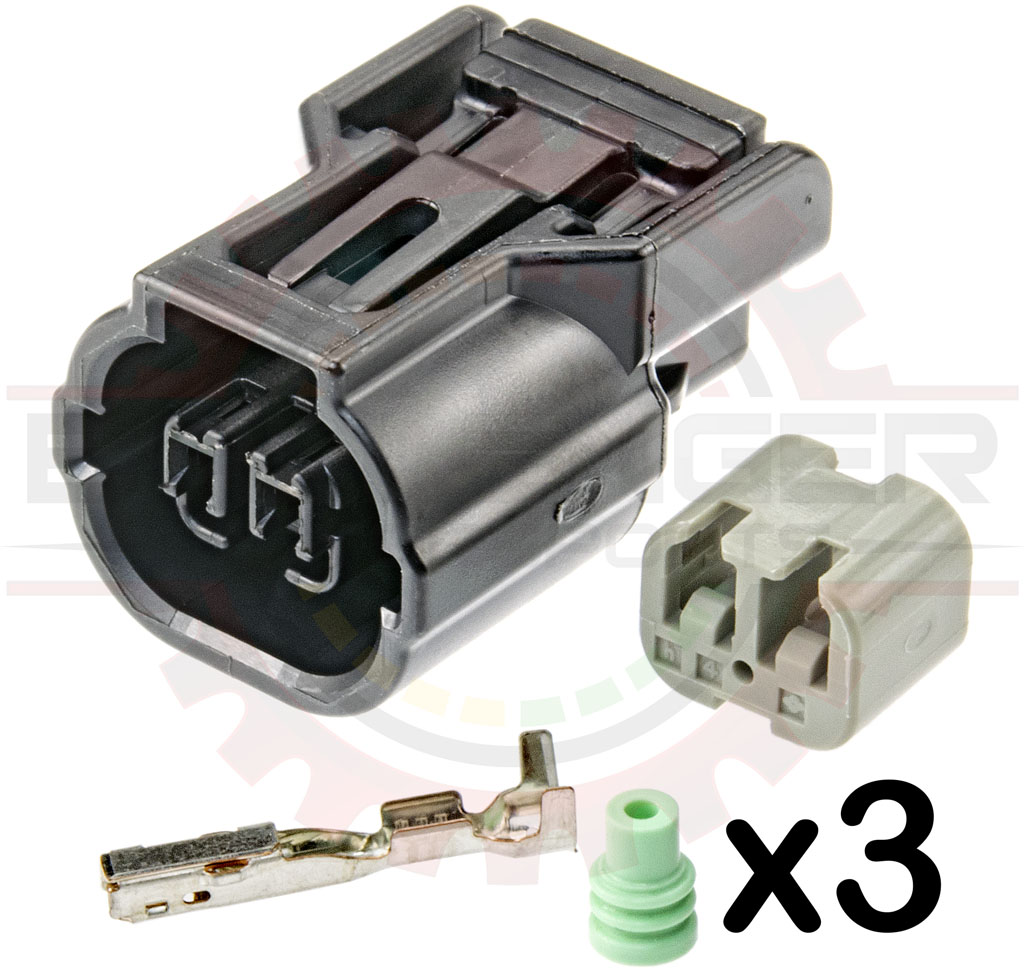

2 Way Sumitomo HX 040 Plug Connector Kit. Connector Kit. Terminals and seals ARE included.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100566	2 Way Sumitomo HX 040 Plug Assembly (Connector + Lock)
Terminals	CONN-100465	Sumitomo HX 040 Female Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals	CONN-100552	Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Kit	CONN-75781	2 Way Sumitomo HX 040 Plug Connector Kit
Connector Pigtail	CONN-85781	2 Way Sumitomo HX 040 Plug Connector Pigtail
Mating Connectors
Connector Only	CONN-100560	2 Way Sumitomo HX 040 Receptacle Assembly (Connector + Lock)
Terminals	CONN-100558	Sumitomo HX 040 Male Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals	CONN-100552	Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Kit	CONN-75873	2 Way Sumitomo HX 040 Receptacle Connector Kit
Connector Pigtail	CONN-85873	2 Way Sumitomo HX 040 Receptacle Connector Pigtail

Applications

Applications Include:

Fits Charcoal Can on 2005-2007 Impreza, WRX & STI
Many Honda vehicles

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 1mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 20

This product contains the following items:
	» 3 x Sumitomo HX 040 Female Terminal 0.3 - 0.5mm2 (22 - 20 AWG) Part # CONN-100465
	» 3 x Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG) Part # CONN-100552
	» 1 x 2 Way Sumitomo HX HV 040 Plug Front Lock Part # CONN-100565
	» 1 x 2 Way Sumitomo HX 040 Plug Connector Part # CONN-100564
