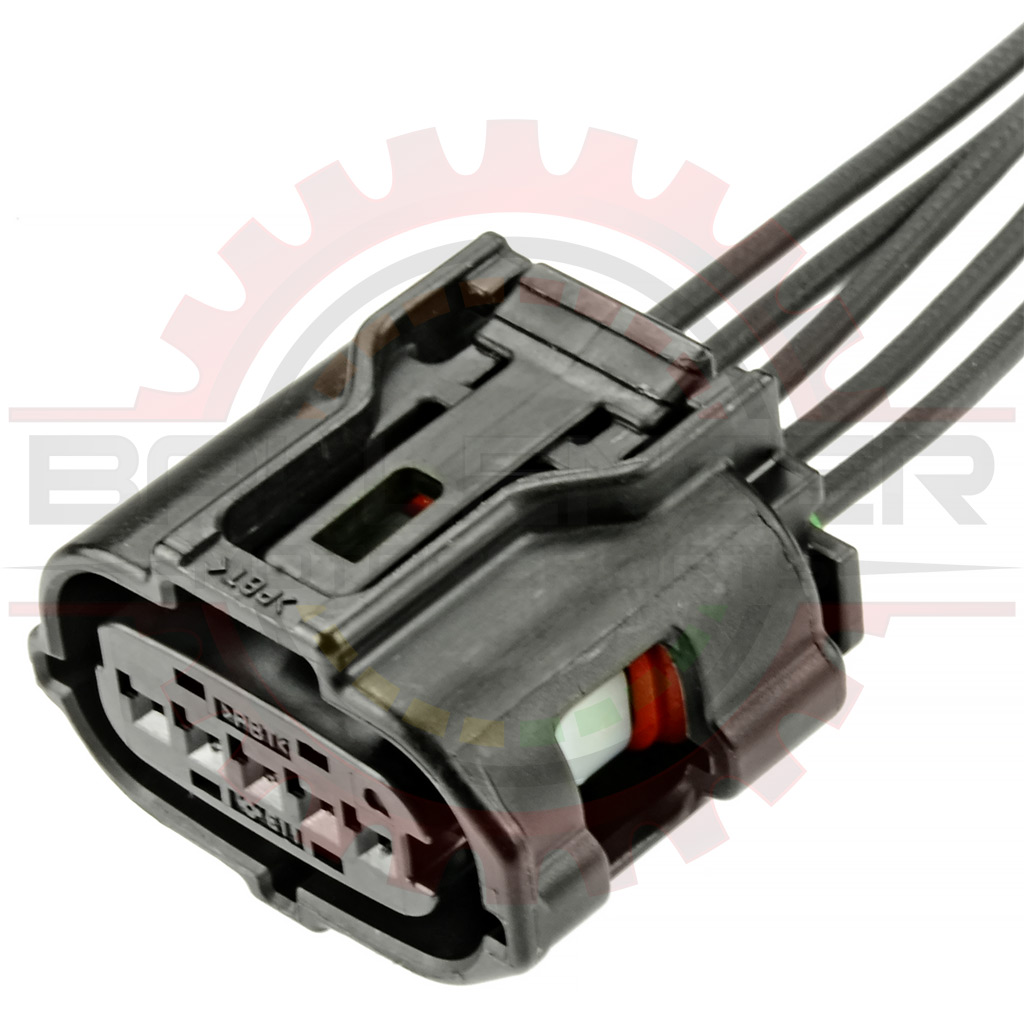

5 Way TS 025 Plug Connector Pigtail for MAF on Toyota, Subaru, GM Part # CONN-85788
5 Way TS 025 Plug Connector Pigtail for MAF on Toyota, Subaru, GM 5 Way TS 025 Plug Connector Pigtail for MAF on Toyota, Subaru, GM 5 Way TS 025 Plug Connector Pigtail for MAF on Toyota, Subaru, GM
Pricing
1 + $14.99
5 + $14.49
20 + $13.99
50 + Call for Pricing
Information
Bmotorsports Part # CONN-85788
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

5 Way TS 025 Plug Connector Pigtail for MAF on Toyota, Subaru, GM. A completed pigtail is provided.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100514Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Seals CONN-100515Sumitomo TS 025 Seal 1.6 - 1.7mm
Connector Housing Only CONN-1006005 Way TS 025 Plug Connector Housing ONLY for MAF on Toyota, Subaru, GM, ISUZU NPR
Connector Kit CONN-757885 Way TS 025 Plug Connector Kit for MAF on Toyota, Subaru, GM
Connector Pigtail CONN-857885 Way TS 025 Plug Connector Pigtail for MAF on Toyota, Subaru, GM
Mating Parts
Terminals CONN-100954Sumitomo TS 025 Male Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Seals CONN-100515Sumitomo TS 025 Seal 1.6 - 1.7mm
Connector Housing Only CONN-1007025 Way TS 025 Receptacle Connector Housing ONLY for MAF on Toyota, Subaru, GM
Connector Kit CONN-758295 Way TS 025 Receptacle Connector Kit for MAF on Toyota, Subaru, GM
Connector Pigtail CONN-858295 Way TS 025 Receptacle Connector Pigtail for MAF on Toyota, Subaru, GM
Extension
Extension CONN-858495 Way TS 025 Connector Extension for MAF on Toyota, Subaru, GM

Applications

    Fits many Toyota, Scion & Lexus small Denso MAF sensors, including:
  • Equivalent to ACDelco Pigtail PT 2268 & GM Pigtail Part# 19151506
  • '07+ TOYOTA TUNDRA 5.7 & 4.7
  • '11+ SCION TC 2.5
  • '13+ SUBARU 2.0 BRZ
  • '10+ TOYOTA TUNDRA 4.6
  • '13+ SCION FRS 2.0
  • '09+ SCION XB 2.4
  • '09 Toyota Matrix 1.8
  • '09-'10 Toyota Matrix 2.4
  • '09-'10 Pontiac Vibe 1.8
  • '09-'10 Pontiac Vibe 2.4
  • '09-'12 Chevrolet Malibu 2.4
  • '09-'12 Chevrolet Malibu 3.5
  • '09-'10 Chevy Cobalt 2.2
  • '09-'10 Chevy Cobalt 2.0
  • '09-'10 Buick Regal 2.4
  • '09-'10 Buick Regal 2.0
  • '07-'10 Duramax Diesel 6.6
  • '07-'10 Duramax Diesel 6.6 Silverado 2500 HD
  • '07-'10 Duramax Diesel 6.6 Silverado 3500 HD
  • '07-'10 Duramax Diesel 6.6 Express 2500
  • '07-'10 Duramax Diesel 6.6 Express 3500
  • '07-'10 Duramax Diesel 6.6 Express 4500
  • '07-'10 Duramax Diesel 6.6 Sierra 2500 HD
  • '07-'10 Duramax Diesel 6.6 Sierra 3500 HD
  • '07-'10 Duramax Diesel 6.6 Savanna 2500
  • '07-'10 Duramax Diesel 6.6 Savanna 3500
  • '07-'10 Duramax Diesel 6.6 Savanna 4500
  • '09 Pontiac G6 3.6
  • '09 Pontiac G6 3.9
  • '09 Pontiac G5 2.2
  • '09-'10 Pontiac G6 2.4
  • '09-'10 Pontiac G6 2.4
  • '09-'10 Pontiac G6 3.5
  • '09 Saturn Vue 2.4
  • '09 Saturn Aura 2.4
  • '09 Saturn Aura 3.6


Specifications

Parameter Value
Number of Ways5
GenderPlug/Male
Terminal Size0.63mm
Terminal TypeFlat
Min. Wire Gauge24
Max. Wire Gauge20

This product contains the following items:
20AWG Automotive TXL Wire Black» 5 x 20AWG Automotive TXL Wire Black
Part # WIRE-00458S
Labor $0.25/minute» 20 x Labor $0.25/minute
Part # LABR-00001
Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)» 5 x Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Part # CONN-100514
Sumitomo TS 025 Seal 1.6 - 1.7mm» 5 x Sumitomo TS 025 Seal 1.6 - 1.7mm
Part # CONN-100515
5 Way TS 025 Plug Connector Housing ONLY for MAF on Toyota, Subaru, GM, ISUZU NPR» 1 x 5 Way TS 025 Plug Connector Housing ONLY for MAF on Toyota, Subaru, GM, ISUZU NPR
Part # CONN-100600
