Japanese 3 way TPS Connector Plug Kit (Miata & Toyota # 90980-11261)	Part # CONN-75796

Pricing
1 +	$8.29
5 +	$7.99
25 +	$7.49
50 +	$6.49
100 +	$5.99
Information
Bmotorsports Part #	CONN-75796
Availability	In Stock
Shipping Weight	0.03 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

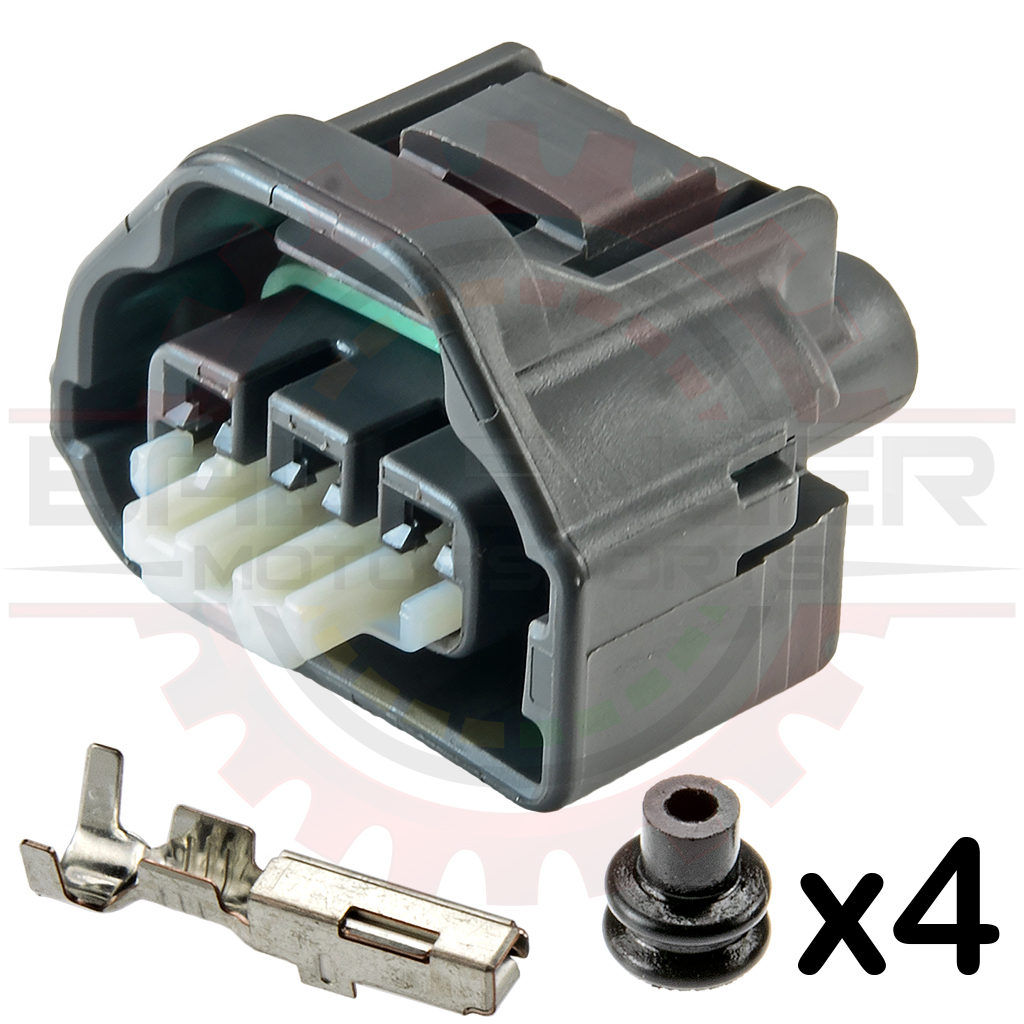

Japanese 3 way TPS Connector Plug Kit (Miata & Toyota # 90980-11261). Includes connector, front lock, terminals and seals. Connector Kit. Terminals and seals ARE included.

Also fits some Subaru & Toyota Applications

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-100602	Japanese 3 way TPS Connector Plug (Miata & Toyota # 90980-11261)
Connector Kit	CONN-75796	Japanese 3 way TPS Connector Plug Kit (Miata & Toyota # 90980-11261)
Connector Pigtail	CONN-85796	Japanese 3 way TPS Connector Plug Pigtail (Miata & Toyota # 90980-11261)
Mating Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-100943	3 Way Mate to Mazda TPS, Subaru TGV Sensor Connector
Connector Kit	CONN-76030	3 Way Mate to Mazda TPS, Subaru TGV Sensor Connector Kit
Connector Pigtail	CONN-86030	3 Way Mate to Mazda TPS, Subaru TGV Sensor Connector Pigtail

Applications

Mazda Miata
Many Mazda Applications not listed
Many Toyota Applications not listed

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 4 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 4 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x Japanese 3 way TPS Connector Plug (Miata & Toyota # 90980-11261) Part # CONN-100602
