Home » Shop » Connectors / Harnesses » Tyco / AMP » 4 Way SSC Sensor Plug Connector Kit Toyota # 90980-10711

4 Way SSC Sensor Plug Connector Kit Toyota # 90980-10711	Part # CONN-75777

Pricing
1 +	$5.99
5 +	$5.75
25 +	$5.49
50 +	$5.25
100 +	$4.99
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-75777
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

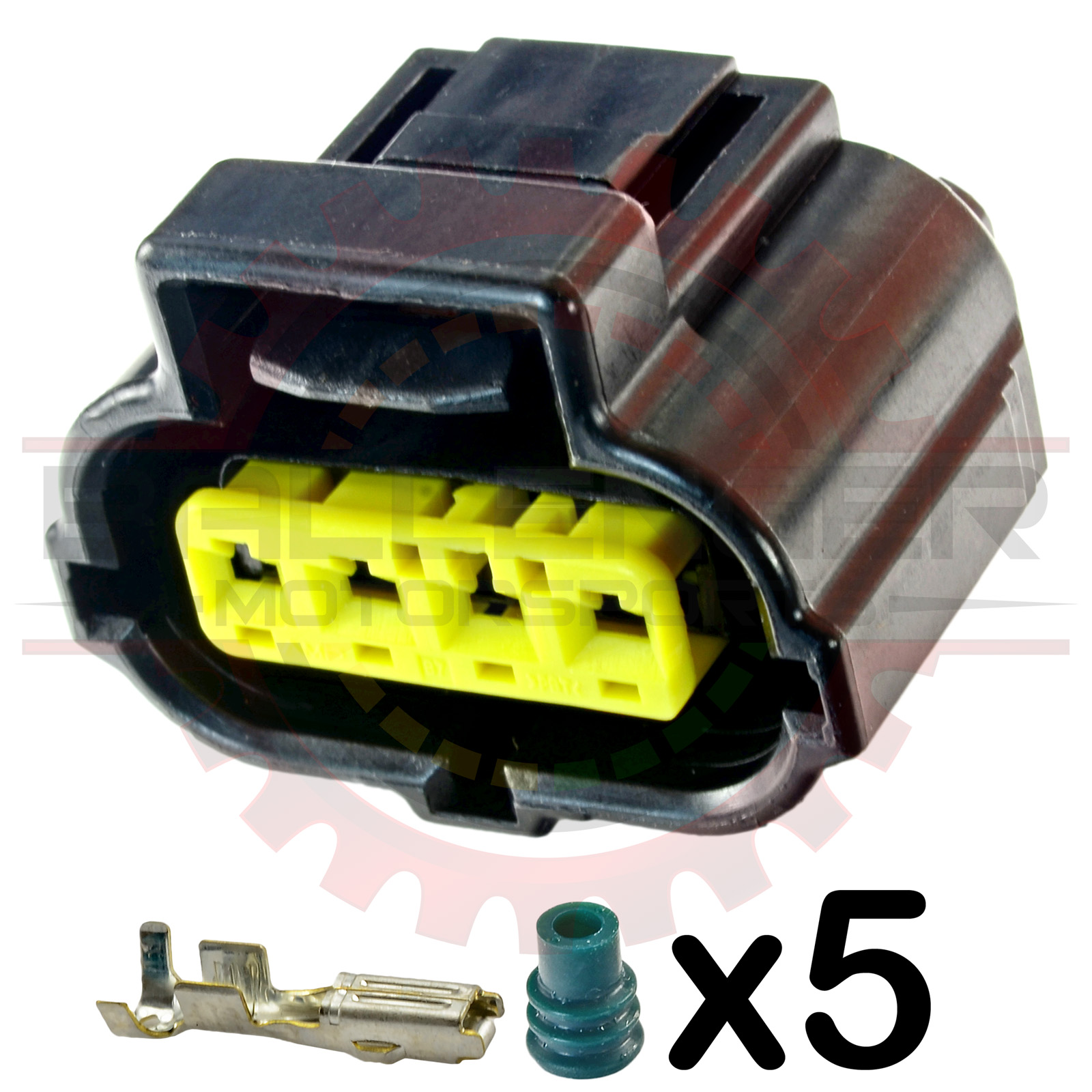

4 Way SSC Sensor Plug Connector Kit Toyota # 90980-10711. Connector Kit. Terminals and seals are included.

Associated & Mating Parts

Relationship	Part #	Description
Terminals	CONN-00127	Terminals for Econoseal J Series Mark II+ Plug Housings, 20-16AWG
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-100599	4 Way SSC Sensor Plug Connector Toyota # 90980-10711
Connector Kit	CONN-75777	4 Way SSC Sensor Plug Connector Kit Toyota # 90980-10711
Pigtail	CONN-85777	4 way SSC Sensor plug Connector Pigtail Toyota # 90980-10711

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 1.8mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Applications

Applications:

2JZ & 2JZGTE Throttle Position Sensor Connector (TPS)
Toyota # 90980-10711

This product contains the following items:
	» 5 x Terminals for Econoseal J Series Mark II+ Plug Housings, 20-16AWG Part # CONN-00127
	» 5 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 1 x 4 Way SSC Sensor Plug Connector Toyota # 90980-10711 Part # CONN-100599
