4 Way Receptacle Connector Pigtail for Japanese applications, Gray	Part # CONN-85815

Pricing
1 +	$9.99
25 +	$9.75
50 +	$9.49
100 +	$7.99
400 +	$7.49
Information
Bmotorsports Part #	CONN-85815
Availability	In Stock
Shipping Weight	0.15 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

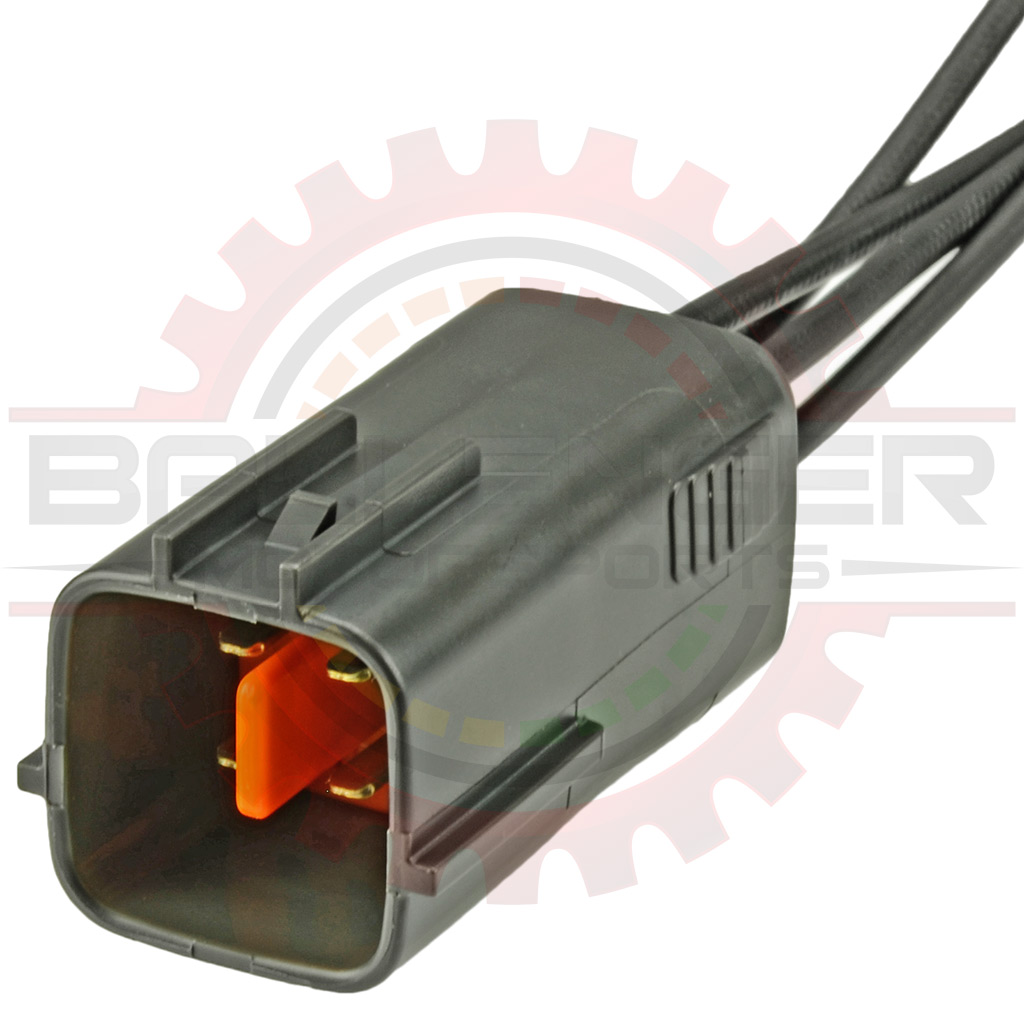

4 Way Plug Receptacle Pigtail for Japanese applications, Gray. A completed pigtail is provided.

This gray connector is often used on sensors, subharness sections and ignition harnesses on applications like the Mazda Miata.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Only	CONN-100641	4 Way Receptacle Assembly for Japanese applications (Connector + Lock), Gray
Terminals	CONN-100451	Sumitomo HX / DL / SL Sealed Series Male terminal 18 - 16 AWG Terminal, loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Kit	CONN-75815	4 Way Receptacle Connector Kit for Japanese applications, Gray
Pigtail	CONN-85815	4 Way Receptacle Connector Pigtail for Japanese applications, Gray
Mating Parts
Connector Only	CONN-100640	4 Way Plug Assembly for Japanese applications (Connector + Lock), Gray
Terminals	CONN-100452	Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Kit	CONN-75814	4 Way Plug Connector Kit for Japanese applications, Gray
Pigtail	CONN-85814	4 Way Plug Connector Pigtail for Japanese applications, Gray
Extensions
4 Way Extension	CONN-85876	4 Way Connector Extension for Japanese applications, Gray

Applications

Applications:

Mazda Miata (Most NA, NB Models)

Specifications

Parameter Value
Number of Ways 4
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 16

This product contains the following items:
	» 25 x Labor $0.25/minute Part # LABR-00001
	» 4 x 16AWG Automotive TXL Wire Black Part # WIRE-00460s
	» 4 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 4 x Sumitomo HX / DL / SL Sealed Series Male terminal 18 - 16 AWG Terminal, loose piece Part # CONN-100451
	» 1 x 4 Way Receptacle Assembly for Japanese applications (Connector + Lock), Gray Part # CONN-100641
