2 Way SSC Plug Pigtail, Green	Part # CONN-85820

Pricing
1 +	$7.99
5 +	$7.75
25 +	$7.49
50 +	$7.25
100 +	$6.99
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-85820
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

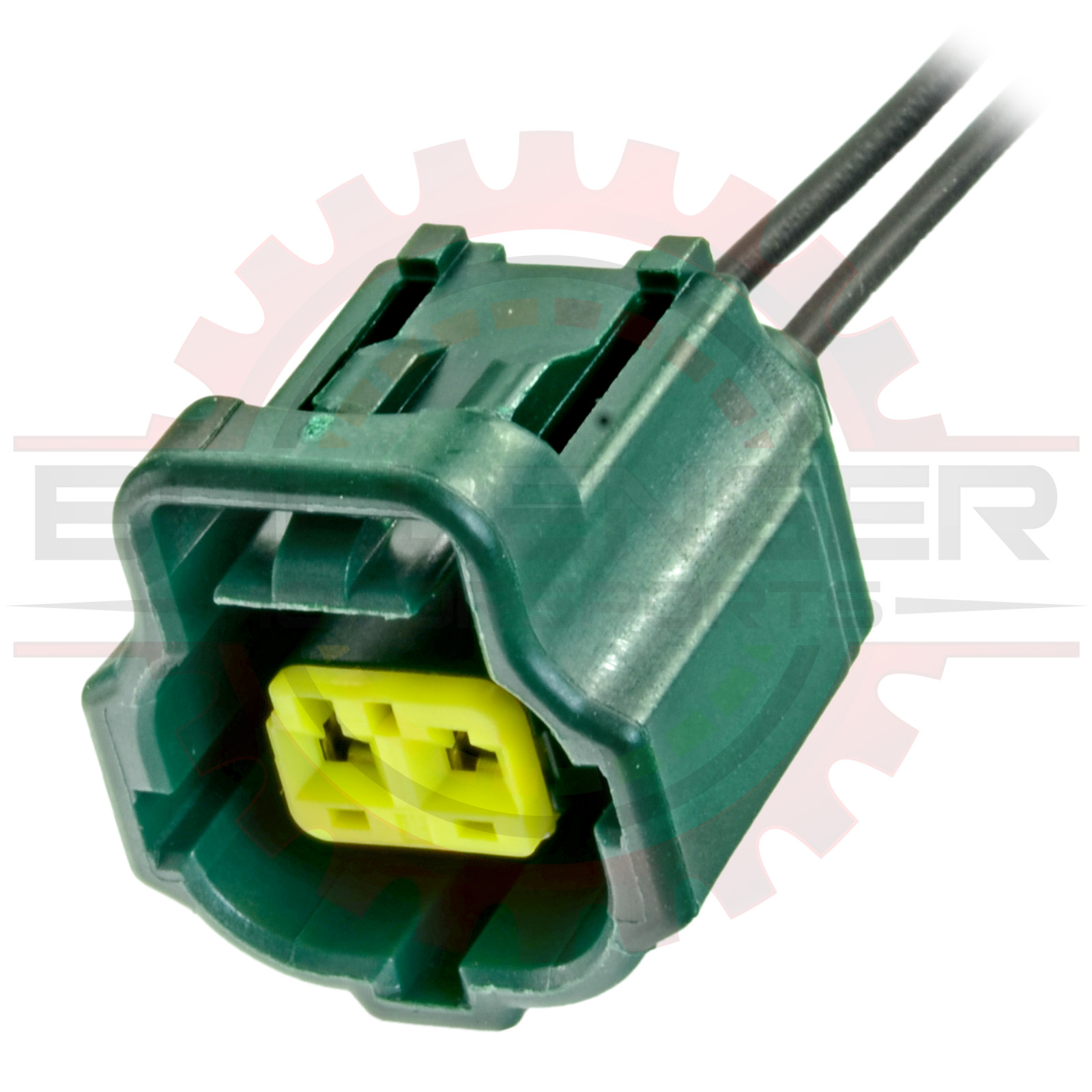

2 Way SSC Plug Pigtail, Green. Preassembled and includes connector, front lock, and seals and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Frequently used for temperature sensors, solenoids, and other sensors on Japanese vehicles. Often Toyota, including the 2JZ motor.

Associated & Mating Parts

Relationship	Part #	Description
Connector Only	CONN-100317	2 Way SSC Plug, Green
Terminals	CONN-00127	Terminals for Econoseal J Series Mark II+ Plug Housings, 20-16AWG
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Kit	CONN-75820	2 Way SSC Plug Kit, Green
Connector Pigtail	CONN-85820	2 Way SSC Plug Pigtail, Green

Applications

Applications:

2JZ, 2JZ-GTE
Toyota Supra
Mazda Miata NA
Many other Toyota Sensor applications
Many other Mazda Sensor applications
Many other Subaru Sensor applications
1998-2003 Ford Powerstroke Diesel 7.3 Air Intake Temperature Sensor Connector
Ford / Motorcraft Repair Pigtail WPT-410, WPT410
Ford 3U2Z-14S411-BA

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 1.8mm
Terminal Type Flat

This product contains the following items:
	» 2 x 20AWG Automotive TXL Wire Black Part # WIRE-00458S
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 2 x Terminals for Econoseal J Series Mark II+ Plug Housings, 20-16AWG Part # CONN-00127
	» 2 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 1 x 2 Way SSC Plug, Green Part # CONN-100317
