5 Way Connector Plug Kit for NTK AFRM (harness side)	Part # CONN-75822

Pricing
1 +	$6.99
25 +	$6.49
50 +	$6.25
100 +	$5.99
1000 +	$4.99
Information
Bmotorsports Part #	CONN-75822
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

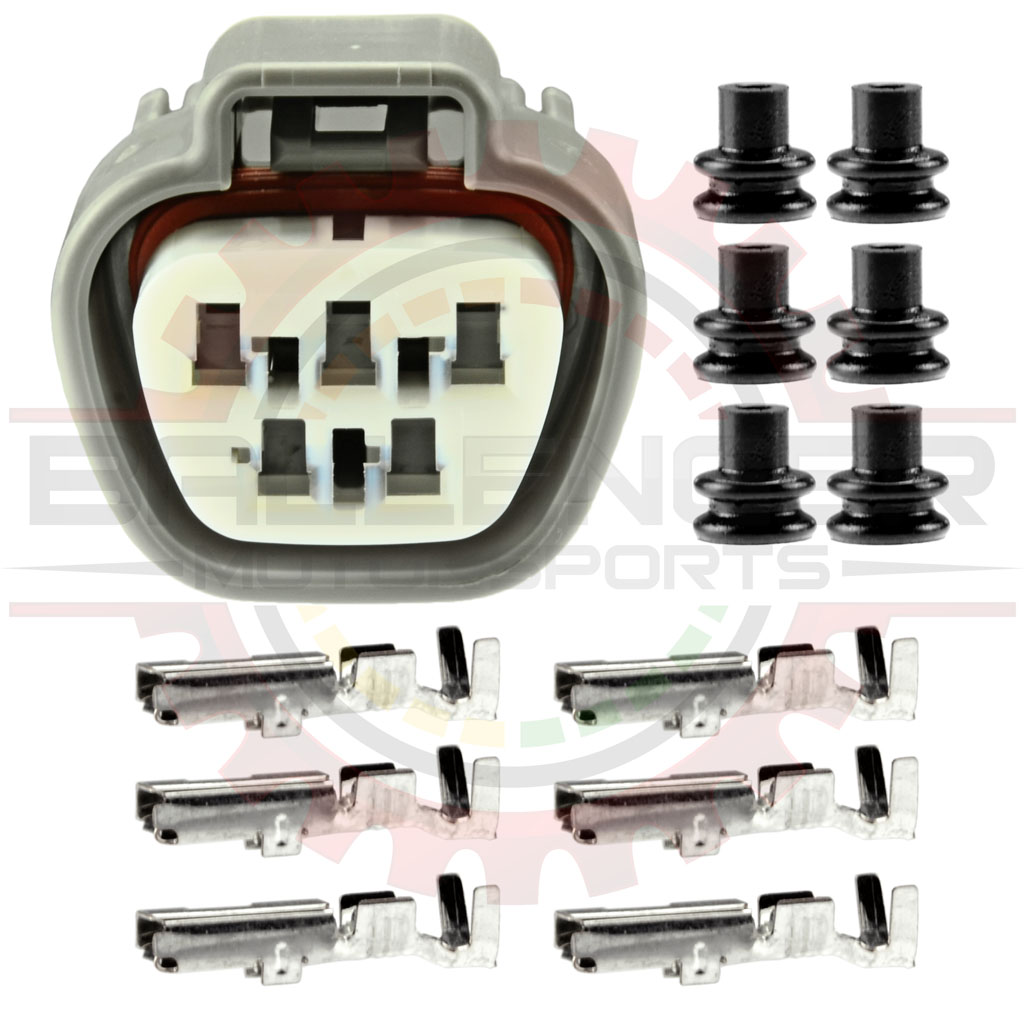

5 Way Connector Plug Kit for NTK AFRM (harness side). Connector Kit. Terminals and seals ARE included.

Used on the NTK AFRM for the oxygen sensor connector. Also used in some Toyota applications.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Only	CONN-100669	5 Way Connector Plug for NTK AFRM (harness side)
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75822	5 Way Connector Plug Kit for NTK AFRM (harness side)
Connector Pigtail	CONN-85822	5 Way Connector Plug Pigtail for NTK AFRM (harness side)
Mating Parts
Connector Only	CONN-100670	5 Way Connector Receptacle for NTK AFRM (sensor side)
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75823	5 Way Connector Receptacle Kit for NTK AFRM (sensor side)
Connector Pigtail	CONN-85823	5 Way Connector Receptacle Pigtail for NTK AFRM (sensor side)
Extensions
NTK AFRM Sensor Extension Harness	CONN-85831	5 Way Oxygen Sensor Extension for NTK AFRM
Mating Sensors
NTK AFRM Replacement Sensor	SNSR-01006	NTK AFRM Replacement Sensor
Associated Controller
NTK AFRM	SNSR-01005	NTK AFRM - Air Fuel Ratio Monitor Kit - Wideband O2 - PN 96604 - w/ NTK Sensor (replaced by SNSR-01008)
Associated Harness
NTK AFRM Replacement Harness	SNSR-01007	Replacement Wiring Harness for NTK AFRM

Applications

Applications:

NTK AFRM Sensor
Some Toyota vehicle applications
Some Japanese wiper motor applications
350z & 350z wiper motor connector
Subaru TGV Connector
Subaru Tumble Generator Valve Connector

Specifications

Parameter Value
Number of Ways 5
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 6 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 6 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 5 Way Connector Plug for NTK AFRM (harness side) Part # CONN-100669
