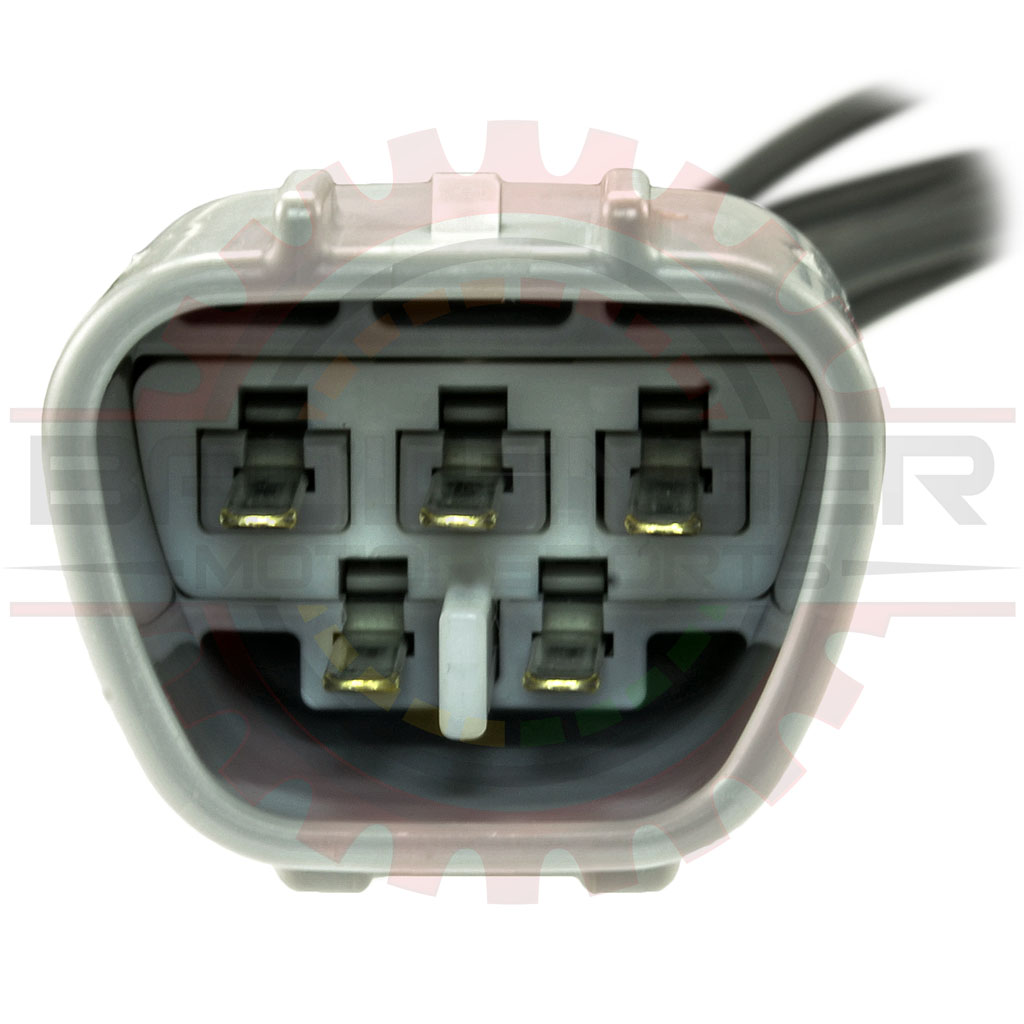

5 Way Connector Receptacle Pigtail for NTK AFRM (sensor side) Part # CONN-85823
5 Way Connector Receptacle Pigtail for NTK AFRM (sensor side) 5 Way Connector Receptacle Pigtail for NTK AFRM (sensor side) 5 Way Connector Receptacle Pigtail for NTK AFRM (sensor side)
Pricing
1 + $8.99
25 + $8.49
50 + $8.25
100 + $7.99
1000 + $6.99
Information
Bmotorsports Part # CONN-85823
Availability In Stock
Shipping Weight 0.1 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

5 Way Connector Receptacle Pigtail for NTK AFRM (sensor side). Preassembled and includes connector, front lock, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Used on the NTK AFRM for the oxygen sensor connector. Also used in some Toyota applications.


Associated & Mating Parts

Relationship Part # Description
Associated Connectors
Connector Only CONN-1006705 Way Connector Receptacle for NTK AFRM (sensor side)
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit CONN-758235 Way Connector Receptacle Kit for NTK AFRM (sensor side)
Connector Pigtail CONN-858235 Way Connector Receptacle Pigtail for NTK AFRM (sensor side)
Mating Connectors
Connector Only CONN-1006695 Way Connector Plug for NTK AFRM (harness side)
Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit CONN-758225 Way Connector Plug Kit for NTK AFRM (harness side)
Connector Pigtail CONN-858225 Way Connector Plug Pigtail for NTK AFRM (harness side)
Extensions
NTK AFRM Sensor Extension CONN-858315 Way Oxygen Sensor Extension for NTK AFRM
Associated Sensors
NTK AFRM Replacement Sensor SNSR-01006NTK AFRM Replacement Sensor
Associated Controller
NTK AFRM SNSR-01005NTK AFRM - Air Fuel Ratio Monitor Kit - Wideband O2 - PN 96604 - w/ NTK Sensor (replaced by SNSR-01008)
Associated Harness
NTK AFRM Replacement Harness SNSR-01007Replacement Wiring Harness for NTK AFRM

Applications

Applications:

  • NTK AFRM Sensor
  • Some Toyota vehicle applications
  • Some Japanese wiper motor applications (device side)
  • 350z & 350z wiper motor connector (device side)
  • Subaru TGV Connector (device side)
  • Subaru Tumble Generator Valve Connector (device side)


Specifications

Parameter Value
Number of Ways5
GenderReceptacle/Female
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
Labor $0.25/minute» 25 x Labor $0.25/minute
Part # LABR-00001
18AWG Automotive TXL Wire Black» 5 x 18AWG Automotive TXL Wire Black
Part # WIRE-00459s
Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 5 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Part # CONN-00145
Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )» 5 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Part # CONN-100069
5 Way Connector Receptacle for NTK AFRM (sensor side)» 1 x 5 Way Connector Receptacle for NTK AFRM (sensor side)
Part # CONN-100670
