Home » Shop » Connectors / Harnesses » Sumitomo » 6 Way Denso Diesel Injection Pressure Sensor Connector Receptacle Pigtail

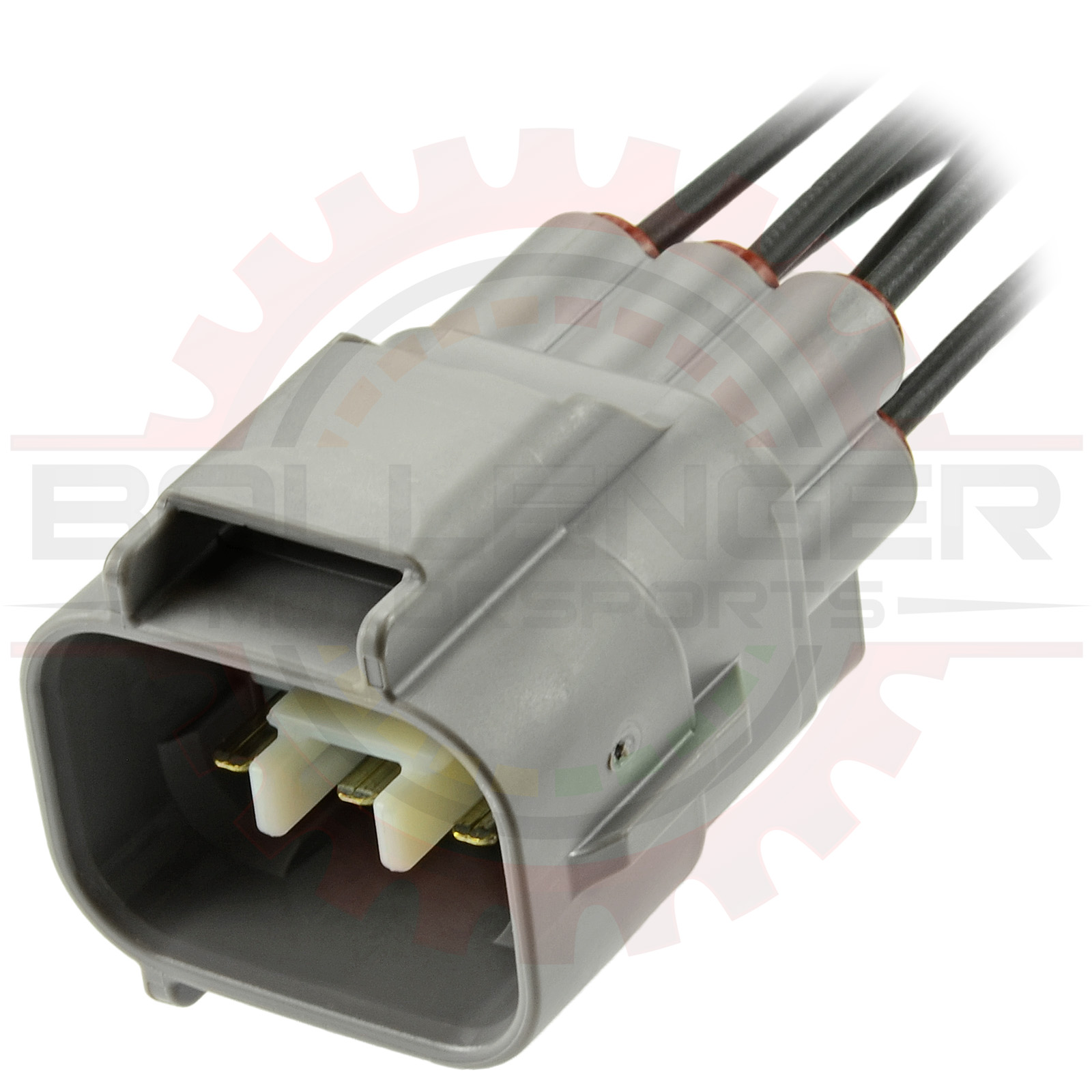

6 Way Denso Diesel Injection Pressure Sensor Connector Receptacle Pigtail - Toyota 90980-10987	Part # CONN-85834

Pricing
1 +	$10.99
100 +	$9.99
500 +	$8.99
Information
Bmotorsports Part #	CONN-85834
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

6 Way Denso Diesel Injection Pressure Sensor Connector Receptacle Pigtail - Toyota 90980-10987. Connector Pigtail. Preassembled and includes connector, front lock, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100454	6 Way Denso Diesel Injection Pressure Sensor Connector Receptacle - Toyota 90980-10987
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75834	6 Way Denso Diesel Injection Pressure Sensor Connector Receptacle Kit - Toyota 90980-10987
Connector Pigtail	CONN-85834	6 Way Denso Diesel Injection Pressure Sensor Connector Receptacle Pigtail - Toyota 90980-10987
Mating Connectors
Connector Only	CONN-100453	6 Way Denso Diesel Injection Pressure Sensor Connector Plug - Toyota 90980-10988
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75833	6 Way Denso Diesel Injection Pressure Sensor Connector Plug Kit - Toyota 90980-10988
Connector Pigtail	CONN-85833	6 Way Denso Diesel Injection Pressure Sensor Connector Plug Pigtail - Toyota 90980-10988

Specifications

Parameter Value
Number of Ways 6
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 25 x Labor $0.25/minute Part # LABR-00001
	» 6 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 6 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 6 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge ) Part # CONN-100069
	» 1 x 6 Way Denso Diesel Injection Pressure Sensor Connector Receptacle - Toyota 90980-10987 Part # CONN-100454
