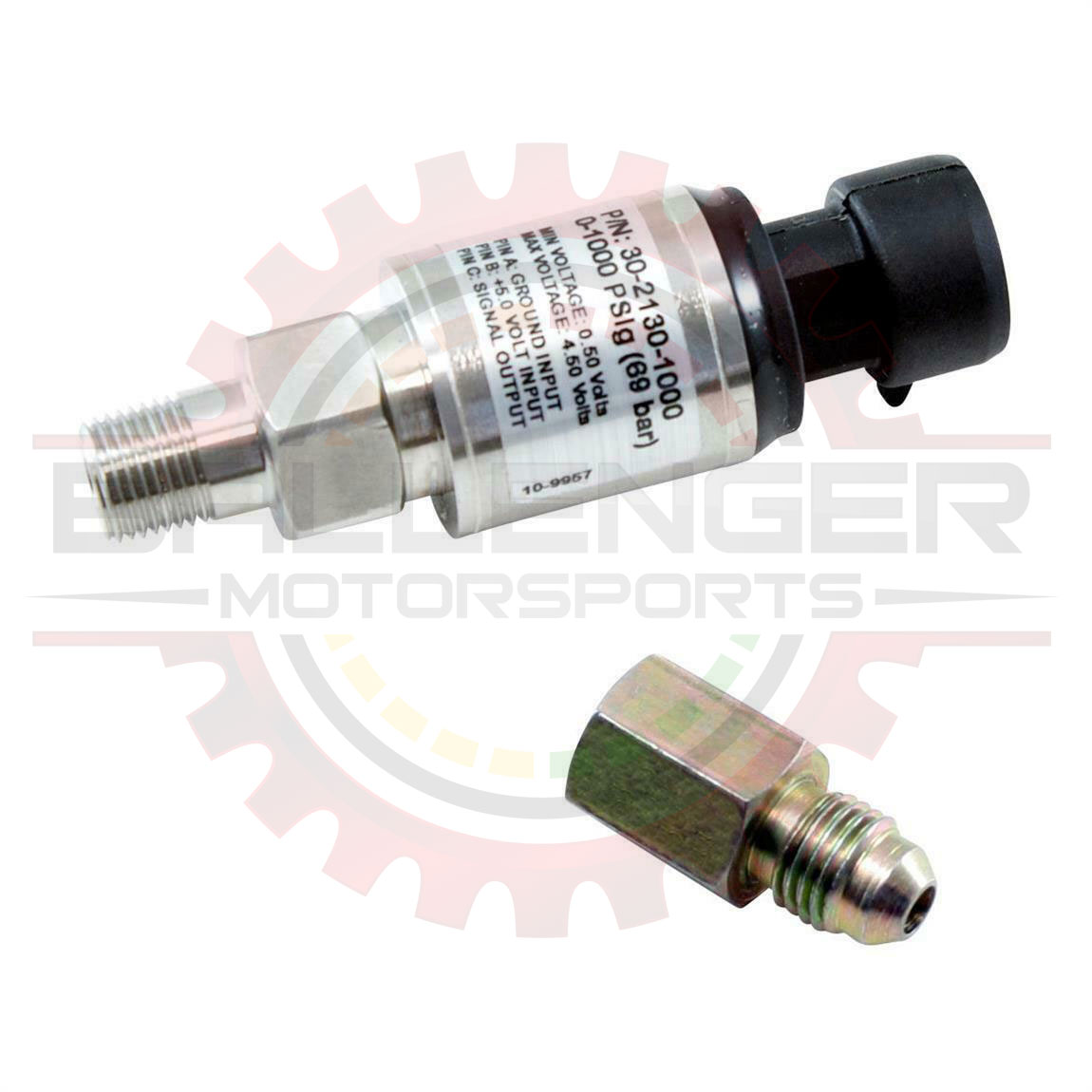

AEM 1000 PSIG Pressure Sensor Kit - PN 30-2130-1000	Part # SNSR-03092

Pricing
1 +	$164.49
Information
Bmotorsports Part #	SNSR-03092
Availability	In Stock
Shipping Weight	0.5 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

FEATURES:

One-Piece Stainless Steel Construction
Cost Effective
Robust Design
Excellent Accuracy
Wide Operating Temperature Range
Industrial Grade Design Ideal for Harsh Environments
More precise, more accurate & more reliable as compared to OEM type sensors

Specifications:

1/8 NPT Sealing Thread
0.5 to 4.5 volt ratiometric output (0 psi at 0.5 volts and 1000 psi at 4.5 volts, linear between these points)
3-way circular metripack connector
Includes mating connector with 12” leads, 1Red (Supply Voltage, 4.7-7.0 Vdc), Black (Ground), Green (Output)
Requires 5 volt DC supply voltage and analog ground
Accuracy: <0.50% Full Scale
Temp Drift: <0.50% Full Scale
Stability: <0.25% Full Scale/Year
Operating Temp: -40C to 105C
Burst Pressure: 5 x Full Scale
Response Time: < 1mS
Wetted Materials: 304L & 316L Stainless Steel
Vibration: 20G’s peak to peak sinusoidal
Weight: <85g
Supply Current: 5mA MAX. at 5 Vdc

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Only	CONN-100890
Connector Kit	CONN-75963	3 Way GM / AEM Pressure Sensor Receptacle Connector Kit
Connector Pigtail	CONN-85963	3 Way GM / AEM Pressure Sensor Receptacle Connector Pigtail
Mating Parts
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Only	CONN-51764	GM Delphi / Packard - 3-way GT150 replacement assembly for 3-way MP 150.P2S (3 pin circular connector for sensors)
Connector Kit	CONN-75732	GM Delphi / Packard - 3-way GT150 replacement kit for 3-way MP 150.P2S (3 pin circular connector kit for sensors)
Pigtail	CONN-85732	GM Delphi / Packard - 3-way GT150 replacement Pigtail for 3-way MP 150.P2S (3 pin circular connector for sensors)
STi & RX-7 harness adapter	CONN-85945	3 Way MAP / Pressure Sensor Adapter for Subaru STi, Mazda RX-7 & others
Extension
Extension	CONN-85964	3 Way GM / AEM Pressure Sensor Extension
Associated Sensors
Stainless 0-100 PSIG Sensor	SNSR-03355	0-100 psi Pressure Sensor / Industrial Stainless Steel Isolated Pressure Transducer
AEM Stainless 2 Bar MAP	SNSR-03079	AEM 2 bar MAP ( 30 PSIA ) Pressure Sensor Kit - PN 30-2130-30
AEM Stainless 3.5 Bar MAP	SNSR-03078	AEM 3.5 bar MAP ( 50 PSIA ) Pressure Sensor Kit - PN 30-2130-50
AEM Stainless 5 Bar MAP	SNSR-03077	AEM 5 bar MAP ( 75 PSIA ) Pressure Sensor Kit - PN 30-2130-75
AEM Stainless 100PSIG	SNSR-03082	AEM 100 PSIG Pressure Sensor Kit - PN 30-2130-100
AEM Stainless 150PSIG	SNSR-03076	AEM 150 PSIG Pressure Sensor Kit - PN 30-2130-150
AEM Stainless 500PSIG	SNSR-03087	AEM 500 PSIG Pressure Sensor Kit - PN 30-2130-500
AEM Stainless 1000PSIG	SNSR-03092	AEM 1000 PSIG Pressure Sensor Kit - PN 30-2130-1000
AEM Stainless 2000PSIG	SNSR-03086	AEM 2000 PSIG Pressure Sensor Kit - PN 30-2130-2000
AEM Brass 15 PSIG Sensor kit	SNSR-03093	AEM 15 PSIG Brass Pressure Sensor kit - PN 30-2131-15G
AEM Brass 2 Bar MAP	SNSR-03094	AEM 2 Bar MAP (30PSIA) Brass Pressure Sensor kit - PN 30-2131-30
AEM Brass 3.5 Bar MAP	SNSR-03095	AEM 3.5 Bar (50 PSIA) Brass Pressure Sensor kit - PN 30-2131-50
AEM Brass 5 Bar MAP	SNSR-03096	AEM 5 Bar MAP (75 PSIA) Brass Pressure Sensor kit - PN 30-2131-75
AEM Brass 100 PSIG	SNSR-03097	AEM 100 PSIG Brass Pressure Sensor kit - PN 30-2131-100
AEM Brass 150 PSIG	SNSR-03098	AEM 150 PSIG Brass Pressure Sensor kit - PN 30-2131-150
