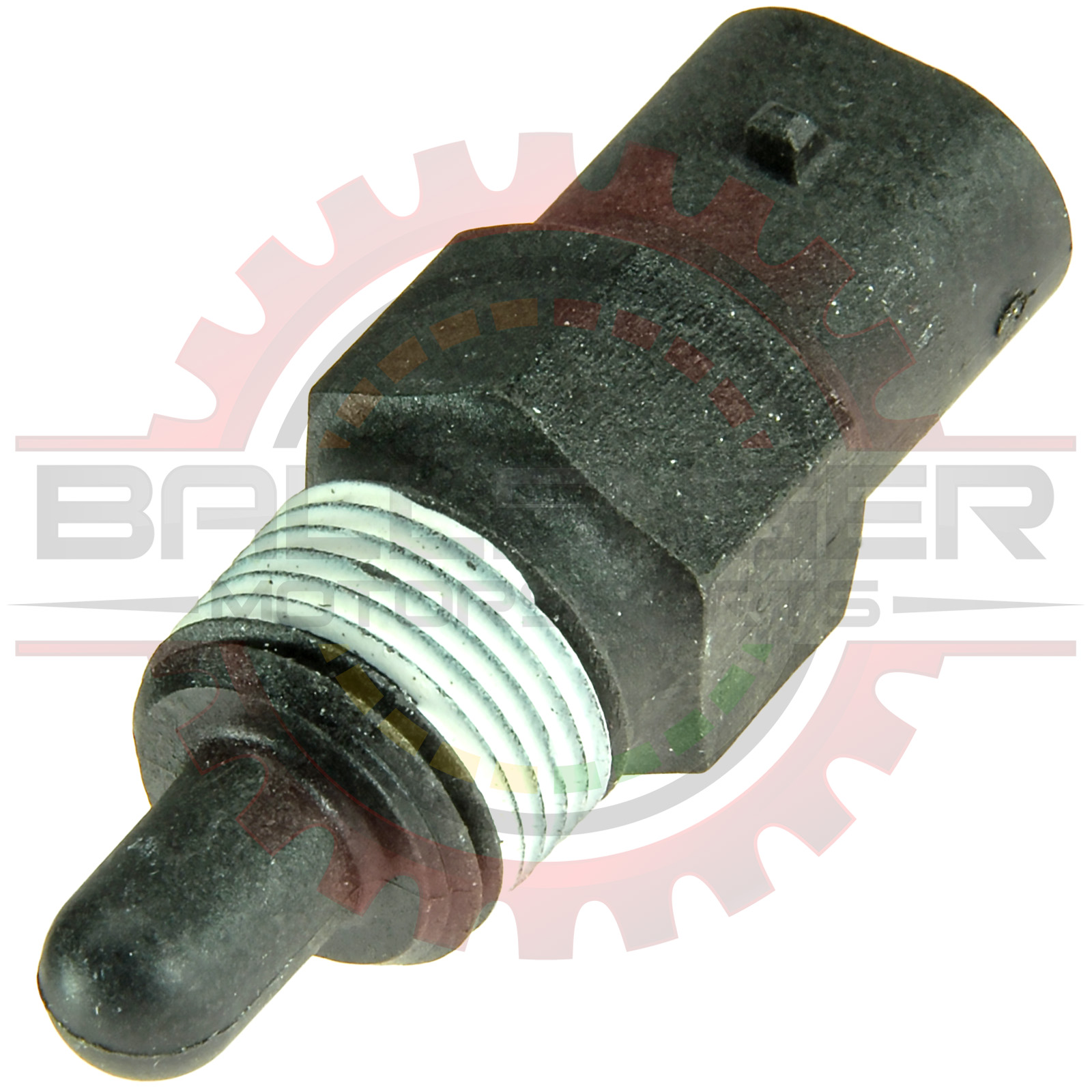

GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12110446 , Black with Mushroom Connector	Part # SNSR-02055

Pricing
1 +	$25.99
50 +	$24.99
100 +	$21.99
1000 +	Call for Pricing
Information
Bmotorsports Part #	SNSR-02055
Availability	Special Order
Shipping Weight	0.072 Lbs.
Shipping Location	VA (Shipping Info)
Options
Mounting Option
	Quantity:

Description

SNSR-02056 is a more common equivalent to this part which we recommend first.

FEATURES:

Genuine Delphi Sensor
Robust Design
Cost Effective
100% Calibration Certified
Thermistor Technology
Typical Voltage Supply: 5V DC
Operating Temperature: -40 C to 135 C
Sensor Body Material: PEI 30% GF

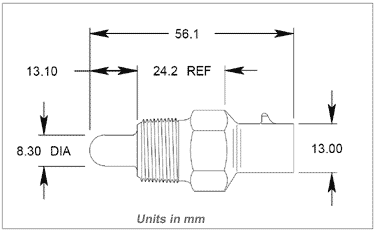

Hex Size: 18.90 mm (3/4")
Thread Size: 3/8" - 18 NPTF
Thread Sealant: GM09985490
Sealing Pressure: 145 kPa
Thermal Time Constant: ** 60 sec
Dissipation Constant: * 18 mW/degC
Overall Wieght: 13.20 g
Color: Black

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts:
3/8 NPT ECT / CLT / TFT	SNSR-02056	GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979
M12 x 1.5 ECT / CLT / TFT	SNSR-02059	GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5
3/8 NPT IAT / MAT / ACT Plastic	SNSR-02055	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12110446 , Black with Mushroom Connector
Preferred Mating Connector (Shrouded with rear release):
Connector Only	CONN-51662	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for CLT/VSS (connector plus TPA)
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75641	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for CLT/VSS
Connector Pigtail	CONN-85641	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for CLT/VSS
Non-preferred Mating Connector (Unshrouded with front release):
Connector Only	CONN-51663	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for CLT/VSS (connector plus TPA)
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75642	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Kit for CLT/VSS
Connector Pigtail	CONN-85642	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female pigtail for CLT/VSS
Extensions
ECT / CLT / TFT Preferred Wiring Extension	CONN-85645-shroud	GM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Extender Harness, Shrouded connectors
ECT / CLT / TFT Wiring Extension	CONN-85645-unshroud	GM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Extender Harness, Un-shrouded connector
