Description

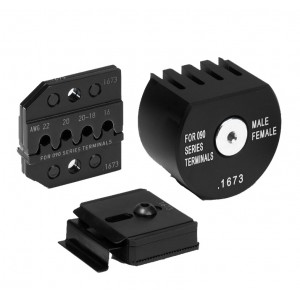

This is the highest quality hand tool that can be purchased for the terminals listed below. Includes crimp die set, terminal locator, and wirestop to aid in the production of crimps.

If you wish to buy more than the available quantity listed, please email us at sales@bmotorsports.com so that we can assist you with your order.

Once out of stock, the part will be listed as "Special Order" and is subject to 8-12 weeks standard lead time.
The part may however already be on order and due to arrive sooner, feel free to contact us for more details.

For use with Sumitomo and Yazaki 090 II Terminals:
TS090 and 090II - Series Male and Female Terminals (AWG 22/20/20-18/16)
CONN-11856 (18-16AWG 20AWG acceptable)
CONN-100069 (18-16AWG, 20AWG acceptable)
CONN-11857 (22-20AWG)
CONN-100059 (22-20AWG)

Can also be used to crimp SL/DL series male terminal CONN-100451 !!!
This die set will provide a production quality crimp for a majority of the terminals found on the engine wiring harnesses of 1990s-2000s Toyota's and some Subaru connections.

This will crimp terminals for the following Toyota repair wire, waterproof type 2.3ll 5mm and 6mm pitch type:
82998-12430
82998-12440
82998-12450
82998-12460
82998-12790
82998–12590
82998–12800


Must be used with:
Production Quality Hand Crimper

Example pictures of crimper with dies are below. Crimper is sold seperately.
