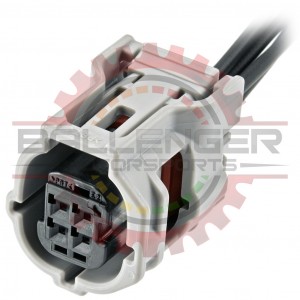

Sumitomo 4-way TS 025 Plug Pigtail for Video systems, (Toyota # 90980-12495) Part # CONN-85932
Sumitomo 4-way TS 025 Plug Pigtail for Video systems, (Toyota # 90980-12495) Sumitomo 4-way TS 025 Plug Pigtail for Video systems, (Toyota # 90980-12495) Sumitomo 4-way TS 025 Plug Pigtail for Video systems, (Toyota # 90980-12495)
Pricing
1 + $10.99
50 + $10.25
100 + $9.49
Information
Bmotorsports Part # CONN-85932
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

Sumitomo 4-way TS 025 Plug Pigtail for Video systems, (Toyota # 90980-12495). Connector Pigtail. Preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Video Camera Connector & Rear View Camera Connector on many Lexus & Toyota Applications. Fits 86790-28232, 86790-28372 & many other video cameras.

Fits the LEM HABT 120-V Current sensor specified for use by Formula E season 3


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100514Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Seals CONN-100515Sumitomo TS 025 Seal 1.6 - 1.7mm
Connector Housing CONN-100866Sumitomo 4-way TS 025 Plug Housing for Video systems, (Toyota # 90980-12495)
Connector Kit CONN-75932Sumitomo 4-way TS 025 Plug Kit for Video systems, (Toyota # 90980-12495)
Pigtail CONN-85932Sumitomo 4-way TS 025 Plug Pigtail for Video systems, (Toyota # 90980-12495)

Applications

  • Toyota Video Connector
  • Lexus Video Connector
  • Toyota Rear View Camera Connector
  • Lexus Rear View Camera Connector
  • Fits the LEM HABT 120-V Current sensor specified for use by Formula E season 3


Specifications

Parameter Value
Number of Ways4
GenderPlug/Male
Terminal Size0.63mm
Terminal TypeFlat
Min. Wire Gauge24
Max. Wire Gauge20

This product contains the following items:
20AWG Automotive TXL Wire Black» 4 x 20AWG Automotive TXL Wire Black
Part # WIRE-00458S
Labor $0.25/minute» 20 x Labor $0.25/minute
Part # LABR-00001
Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)» 4 x Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Part # CONN-100514
Sumitomo TS 025 Seal 1.6 - 1.7mm» 4 x Sumitomo TS 025 Seal 1.6 - 1.7mm
Part # CONN-100515
Sumitomo 4-way TS 025 Plug Housing for Video systems, (Toyota # 90980-12495)» 1 x Sumitomo 4-way TS 025 Plug Housing for Video systems, (Toyota # 90980-12495)
Part # CONN-100866
