TMAP Adapter set for GM MAP to Bosch TMAP Sensors - 19212670H Turbo Upgrade Harness Kit	Part # CONN-86027

Pricing
1 +	$59.97
25 +	$55.97
100 +	$51.97
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-86027
Availability	In Stock
Qty. Available	90
Shipping Weight	0.075 Lbs.
Shipping Location	VA (Shipping Info)
Options
Length
	Quantity:

Description

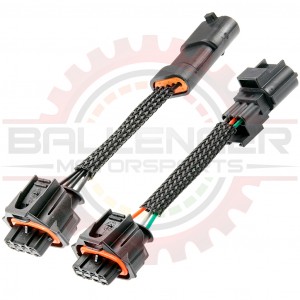

TMAP Adapter set for GM MAP to Bosch TMAP Sensors - 19212670H Turbo Upgrade Harness Kit

TMAP Adapter for GM MAP to Bosch TMAP Sensors. 3 Way MAP Sensor to 4 Way GM TMAP Harness adapter + 4 Way Bosch TMAP Sensor to 4 Way GM TMAP Harness adapter for GM Applications. Used in many applications where converting from GM Map to Bosch TMAP Sensors. Allows for higher boost and higher precision sensors.

Plug-n-Play Adapter for:

2008-2010 Chevrolet HHR SS 2.0L Engine Turbocharged.
2007-2009 Saturn Sky Redline / 2.0L Turbocharged
2007-2009 Pontiac Solstice GXP / 2.0L Turbocharged
2008-2010 Chevrolet Cobalt SS

GM Performance Parts Instructions 19212711

Associated & Mating Parts

Relationship	Part #	Description
CONN-85933 Associated Parts
Terminals	CONN-11561	Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Seals	CONN-11562	Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Connector Only	CONN-100245	4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Connector Kit	CONN-75722	4-way sealed Plug Bosch BSK Connector Kit for Bosch MAP Sensor
Connector Pigtail	CONN-85722	4-way sealed Plug Bosch BSK Connector Pigtail for Bosch MAP Sensor
Associated Parts
Terminals	CONN-100005	Econoseal J Series Male Terminals, 0.5mm2 - 1.4mm2 ( 20 - 16 AWG )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Only	CONN-100710	3 Way Sensor Receptacle Connector, Black
Connector Kit	CONN-75839	3 Way Sensor Receptacle Connector Kit, black
Connector Pigtail	CONN-85839	3 Way Sensor Receptacle Connector Pigtail, black
TMAP Extension
Bosch TMap Extension	CONN-85827	4 Way Sealed Receptacle Bosch BSK Connector Extension for Bosch MAP Sensor
CONN-85933 Mating Parts
Terminals	CONN-10555	Junior Power Timer Male Terminal for 20 - 16 gauge wire
Seals	CONN-11562	Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Connector Only	CONN-100592	4 Way Sealed Receptacle Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Connector Kit	CONN-75826	4 Way Sealed Receptacle Bosch BSK Connector Kit for Bosch MAP Sensor
Connector Pigtail	CONN-85826	4 Way Sealed Receptacle Bosch BSK Connector Pigtail for Bosch MAP Sensor
Mating Parts
Terminals	CONN-00127	Terminals for Econoseal J Series Mark II+ Plug Housings, 20-16AWG
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Only	CONN-100520	3 Way Sensor Plug Connector, black
Connector Kit	CONN-75838	3 Way Sensor Plug Connector Kit, black
Connector Pigtail	CONN-85838	3 Way Sensor Plug Connector Pigtail, black
Mating Sensors
Bosch 1 Bar TMap MAP Sensor	SNSR-03091	Bosch 1 Bar TMap Map Sensor with IAT
Bosch 2.5 Bar TMap MAP Sensor	SNSR-03083	Bosch 2.5 Bar TMap Map Sensor with IAT
Bosch 3 Bar TMap MAP Sensor	SNSR-03085	Bosch 3 Bar TMap Map Sensor with IAT
Bosch 3.5 Bar TMap MAP Sensor	SNSR-03088	Bosch 3.5 Bar TMap Map Sensor with IAT
Bosch 4 Bar TMap MAP Sensor	SNSR-03089	Bosch 4 Bar TMap Map Sensor with IAT
CONN-85934 Associated Parts
Connector only	CONN-100245	4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Connector kit	CONN-75722	4-way sealed Plug Bosch BSK Connector Kit for Bosch MAP Sensor
Connector Pigtail	CONN-85722	4-way sealed Plug Bosch BSK Connector Pigtail for Bosch MAP Sensor
Bosch TMap Extension	CONN-85827	4 Way Sealed Receptacle Bosch BSK Connector Extension for Bosch MAP Sensor
Connector only	CONN-100727	4 Way Connector Receptacle for Coils & Sensor Applications
Connector kit	CONN-75861	4 Way Connector Receptacle Kit for Coils & Sensor Applications
Connector Pigtail	CONN-85861	4 Way Connector Receptacle Pigtail for Coils & Sensor Applications
CONN-85934 Mating Parts
Connector only	CONN-100592	4 Way Sealed Receptacle Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Connector kit	CONN-75826	4 Way Sealed Receptacle Bosch BSK Connector Kit for Bosch MAP Sensor
Connector pigtail	CONN-85826	4 Way Sealed Receptacle Bosch BSK Connector Pigtail for Bosch MAP Sensor
Connector only	CONN-52206	GM Delphi / Packard - 4 Way Metripack 150.2 Connector Plug assembly for IAC & MAP
Connector kit	CONN-75638	GM Delphi / Packard - 4 Way Metripack 150.2 Connector Plug Kit for IAC & MAP
Connector Pigtail	CONN-85638	GM Delphi / Packard - 4 Way Metripack 150.2 Connector Plug Pigtail for IAC & MAP
Bosch 1 Bar TMap MAP Sensor	SNSR-03091	Bosch 1 Bar TMap Map Sensor with IAT
Bosch 2.5 Bar TMap MAP Sensor	SNSR-03083	Bosch 2.5 Bar TMap Map Sensor with IAT
Bosch 3 Bar TMap MAP Sensor	SNSR-03085	Bosch 3 Bar TMap Map Sensor with IAT
Bosch 3.5 Bar TMap MAP Sensor	SNSR-03088	Bosch 3.5 Bar TMap Map Sensor with IAT
Bosch 4 Bar TMap MAP Sensor	SNSR-03089	Bosch 4 Bar TMap Map Sensor with IAT

Applications

Applications:

Many GM Applications using Metripack 4 Way TMAP Sensors
Pontiac Solstice with 4 Way TMAP Sensors
Saturn Sky with 4 Way TMAP Sensors
Chevy Cobalt with 4 Way TMAP Sensors
Chevy HHR LNF Turbowith 4 Way TMAP Sensors

Plug-n-Play Adapter for:

2008-2010 Chevrolet HHR SS 2.0L Engine Turbocharged
2007-2009 Saturn Sky Redline / 2.0L Turbocharged
2007-2009 Pontiac Solstice GXP / 2.0L Turbocharged
2008-2010 Chevrolet Cobalt SS

Specifications

Parameter Value
Number of Ways 3
Terminal Size 2.8mm
Terminal Type Flat
