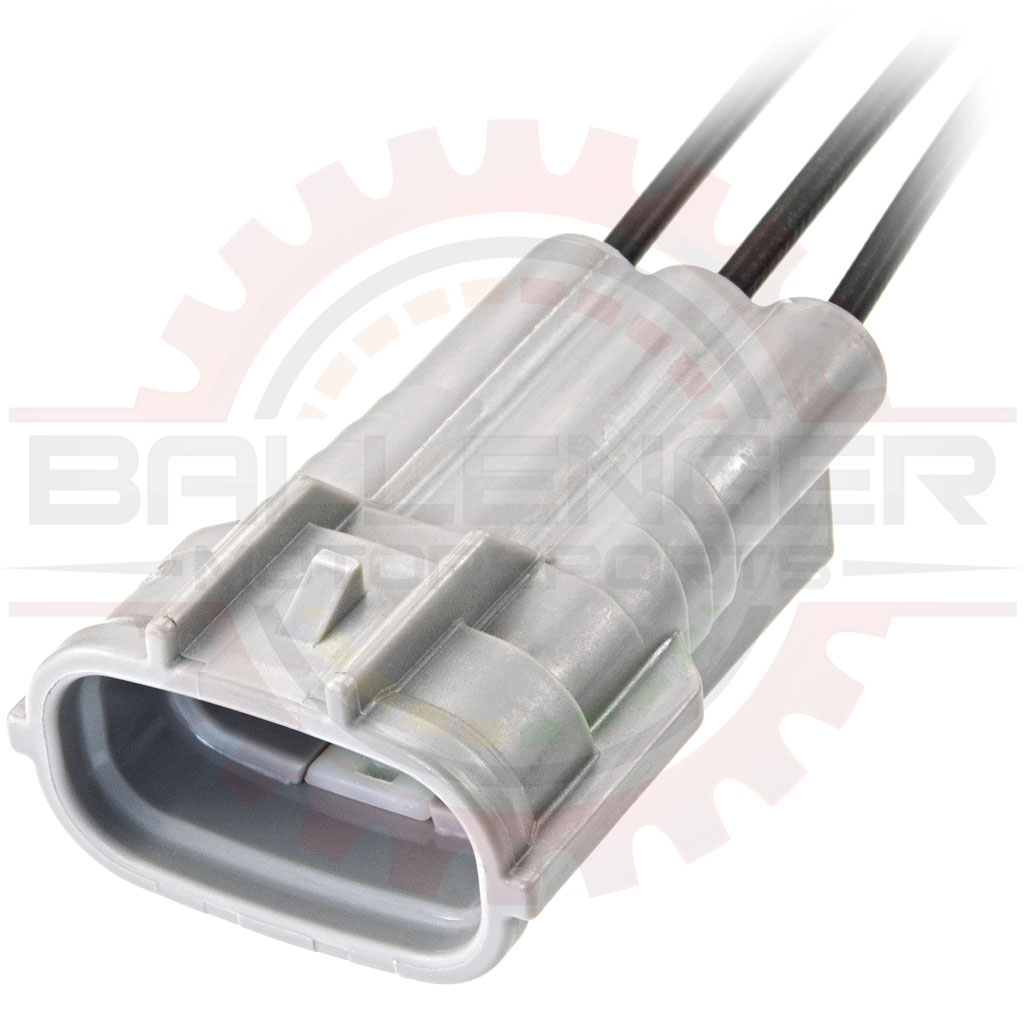

Sumitomo TS 3 Way Alternator Receptacle Pigtail, (Toyota # 90980-11348) Part # CONN-86011
Sumitomo TS 3 Way Alternator Receptacle Pigtail, (Toyota # 90980-11348) Sumitomo TS 3 Way Alternator Receptacle Pigtail, (Toyota # 90980-11348) Sumitomo TS 3 Way Alternator Receptacle Pigtail, (Toyota # 90980-11348)
Pricing
1 + $9.99
50 + $9.75
100 + $9.49
500 + Call for Pricing
Information
Bmotorsports Part # CONN-86011
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

Sumitomo TS 3 Way Alternator Receptacle Pigtail, (Toyota # 90980-11348). Connector Pigtail. Preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Mates with Black or Gray version of this mating connector. Commonly used as the Alternator Receptacle on millions of Toyota, Lexus, & other applications.

Toyota Part Number 90980-11348


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing CONN-100320Sumitomo TS 3 Way Alternator Receptacle Housing, (Toyota # 90980-11348)
Connector Kit CONN-76011Sumitomo TS 3 Way Alternator Receptacle Kit, (Toyota # 90980-11348)
Connector Pigtail CONN-86011Sumitomo TS 3 Way Alternator Receptacle Pigtail, (Toyota # 90980-11348)
Mating Parts
Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing CONN-100300Sumitomo TS 3 Way Alternator Plug Housing, (Toyota # 90980-11349)
Connector Kit CONN-75736Sumitomo TS 3 Way Alternator Plug Kit, (Toyota # 90980-11349)
Connector Pigtail CONN-85736Sumitomo TS 3 Way Alternator Plug Pigtail, (Toyota # 90980-11349)

Applications

Year Make Model Description
2006 LEXUS GS 430, GS 300 Fuel Pressure Sensor(EWD EWD620U - E72) [Black]
