Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED* Pigtail Kit Part # SNSR-02057PK

Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED* Pigtail Kit Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED* Pigtail Kit Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED* Pigtail Kit Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED* Pigtail Kit Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED* Pigtail Kit
Pricing
1 + $17.00
5 + $16.49
10 + $15.99
25 + $15.49
50 + $14.99
100 + $13.99
250 + $11.99
Information
Bmotorsports Part # SNSR-02057PK
Availability In Stock
Shipping Weight 0.074 Lbs.
Shipping Location VA   (Shipping Info)
Options
Mounting Option
Ship Estimator Quantity:

Description

ACDelco Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor

FEATURES:

  • Genuine Delphi Sensor
  • Robust Design
  • Cost Effective
  • 100% Calibration Certified
  • Thermistor Technology
  • Typical Voltage Supply: 5V DC
  • Operating Temperature: -40 C to 135 C
  • Sensor Body Material: Brass

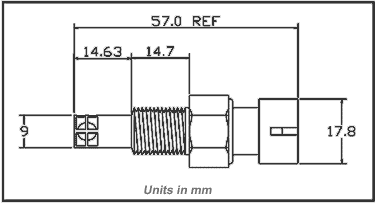

  • Hex Size: 18.90 mm (3/4")

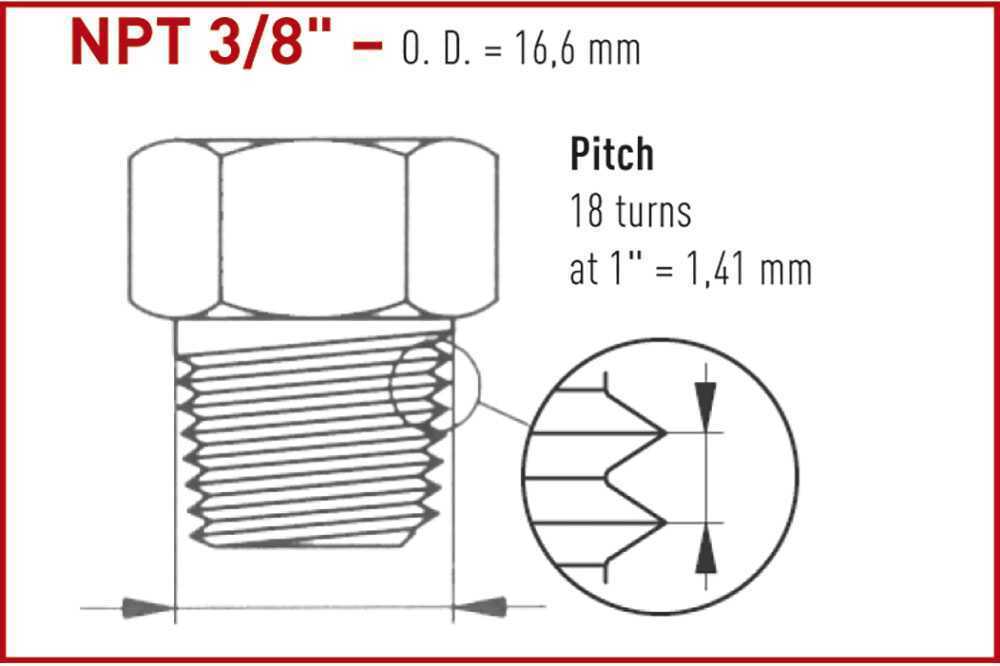

  • Thread Size: 3/8" - 18 NPTF
  • Threads treated with sealing compound
  • Sealing Pressure: 200 kPa
  • Dissipation Constant: * N/A
Cross Reference Numbers:
  • Delphi: 25037225
  • Delphi: 25036751
  • Delphi: 25037034
  • Delphi: 25037334
  • AC Delco: 213-192
  • AC Delco: 213-190
  • Motec: 54001
  • Most aftermarket ECU's on the market such as Haltech, Electromotive, Autronic, Bigstuff3, etc.
  • VERY common sensor with hundreds of other applications


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Fast Response 3/8 NPT IAT SNSR-02057Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED*
Fast Response M14x1.5 IAT SNSR-02063Fast-Response (Metric M14 x 1.5) GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor
Fast Response Grommet IAT SNSR-02060GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor, Black with Keyway Connector
Standard Response Plastic IAT SNSR-02058GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12146830 , Gray with Keyway Connector
Standard Response Plastic IAT (Mushroom Keyway) SNSR-02055GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12110446 , Black with Mushroom Connector

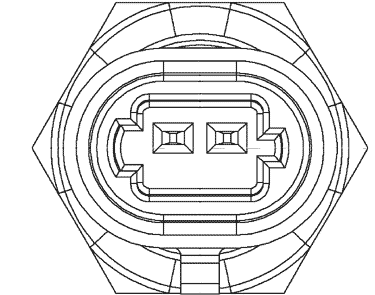

Preferred Mating Connector (Shrouded with rear release):
Connector Only CONN-51560GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75643GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail CONN-85643GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Non-preferred Mating Connector (Unshrouded with front release):
Connector Only CONN-51561GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75644GM Delphi / Packard - 2-way Un-shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail CONN-85644GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Extensions
IAT / MAT / ACT Wiring Extension CONN-85584GM Delphi / Packard - IAT / MAT / ACT Extender Harness

Specifications














» 1 x GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
» GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
     1 x 20AWG Automotive TXL Wire Black
     20AWG Automotive TXL Wire Black
     1 x 20AWG Automotive TXL Wire Yellow
     20AWG Automotive TXL Wire Yellow
     10 x Labor $0.25/minute
     Labor $0.25/minute
     2 x GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
     GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
     2 x GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
     GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
     1 x TPA for 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly
     TPA for 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly
     1 x GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female for IAT
     GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female for IAT
This product contains the following items:
Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED*» 1 x Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED*
Part # SNSR-02057
