Fast-Response (Metric M14 x 1.5) GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor Kit	Part # SNSR-02063CK

Pricing
1 +	$20.99
10 +	$17.99
50 +	$16.99
100 +	$15.99
400 +	$13.99
Information
Bmotorsports Part #	SNSR-02063CK
Availability	In Stock
Shipping Weight	0.09 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

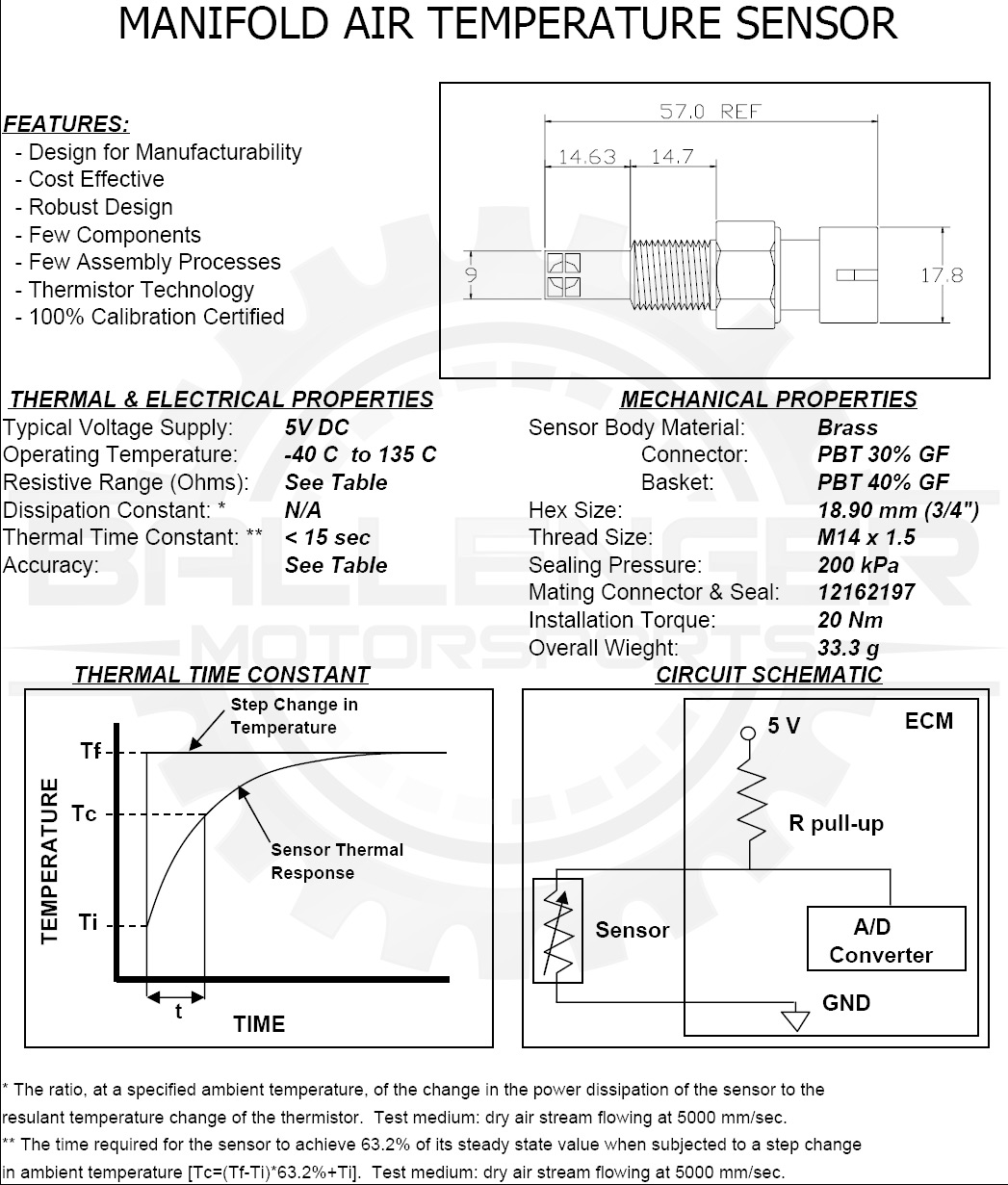

FEATURES:

Genuine Delphi Sensor
Robust Design
Cost Effective
100% Calibration Certified
Thermistor Technology
Typical Voltage Supply: 5V DC
Operating Temperature: -40 C to 135 C
Sensor Body Material: Brass
Connector Body Material: PBT
Overall Weight: 33.3g
Hex Size: 18.90 mm (3/4")
Thread Size: M14 x 1.5
Thermal Time Constant: < 15 seconds
Dissipation Constant: * NA

NOTE: This sensor has the same characteristics as our hugely popular SNSR-02057 Fast Response IAT except this version comes with M14 x 1.5 threads to match many existing applications!

Cross References:

Haltech: HT010200
Most aftermarket ECU's on the market such as Haltech, Electromotive, Autronic, Bigstuff3, etc.
VERY common sensor with hundreds of other applications

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Fast Response 3/8 NPT IAT	SNSR-02057	Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 RECOMMENDED
Fast Response M14x1.5 IAT	SNSR-02063	Fast-Response (Metric M14 x 1.5) GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor
Fast Response Grommet IAT	SNSR-02060	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor, Black with Keyway Connector
Standard Response Plastic IAT	SNSR-02058	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12146830 , Gray with Keyway Connector
Standard Response Plastic IAT (Mushroom Keyway)	SNSR-02055	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12110446 , Black with Mushroom Connector
Preferred Mating Connector (Shrouded with rear release):
Connector Only	CONN-51560	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75643	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail	CONN-85643	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Non-preferred Mating Connector (Unshrouded with front release):
Connector Only	CONN-51561	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75644	GM Delphi / Packard - 2-way Un-shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail	CONN-85644	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Extensions
IAT / MAT / ACT Wiring Extension	CONN-85584	GM Delphi / Packard - IAT / MAT / ACT Extender Harness

Specifications

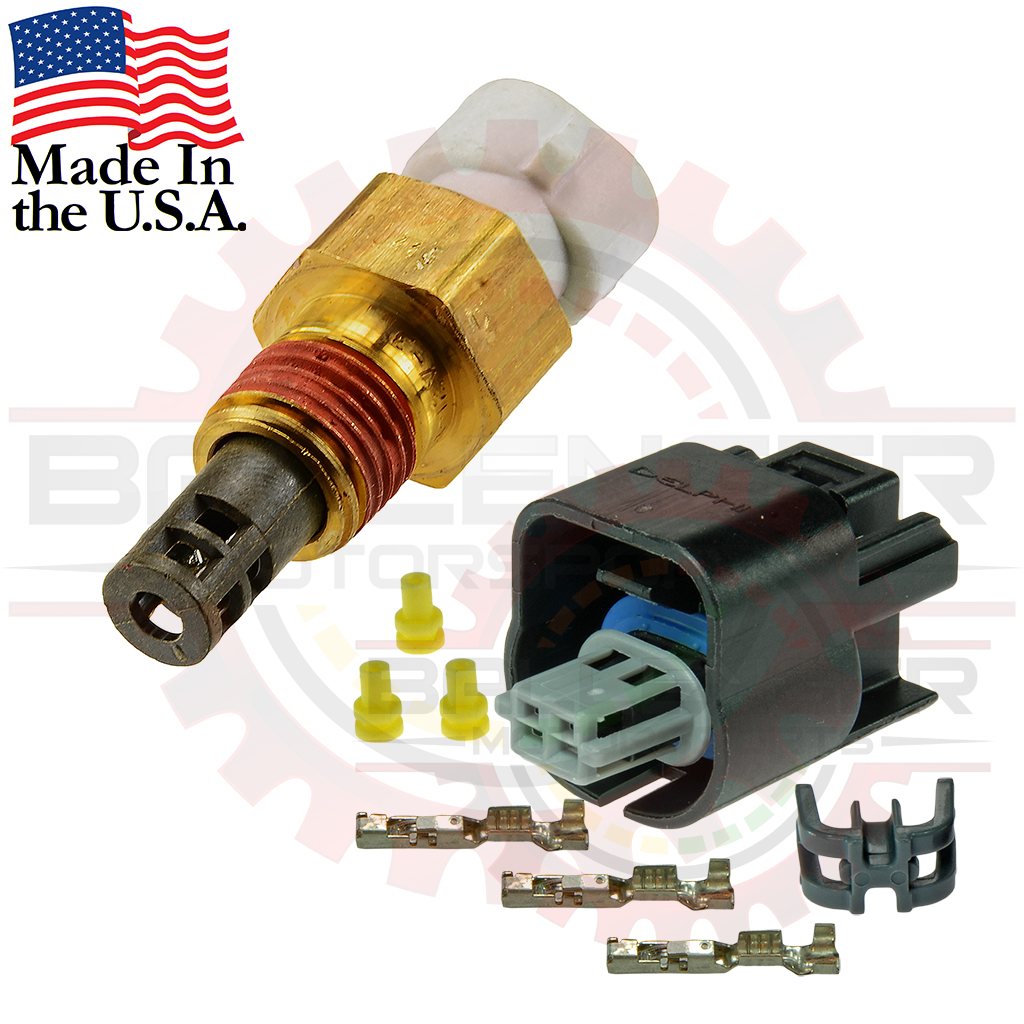

This product contains the following items:
	» 3 x GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated Part # CONN-56468
	» 3 x GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only Part # CONN-56559
	» 1 x TPA for 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly Part # CONN-50558
	» 1 x GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female for IAT Part # CONN-51558
	» 1 x Fast-Response (Metric M14 x 1.5) GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor Part # SNSR-02063
