4 Way Connector Plug Pigtail For Yamaha IAC	Part # CONN-86045

Pricing
1 +	$9.99
25 +	$9.49
50 +	$8.99
100 +	$8.49
Information
Bmotorsports Part #	CONN-86045
Availability	In Stock
Shipping Weight	0.01 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

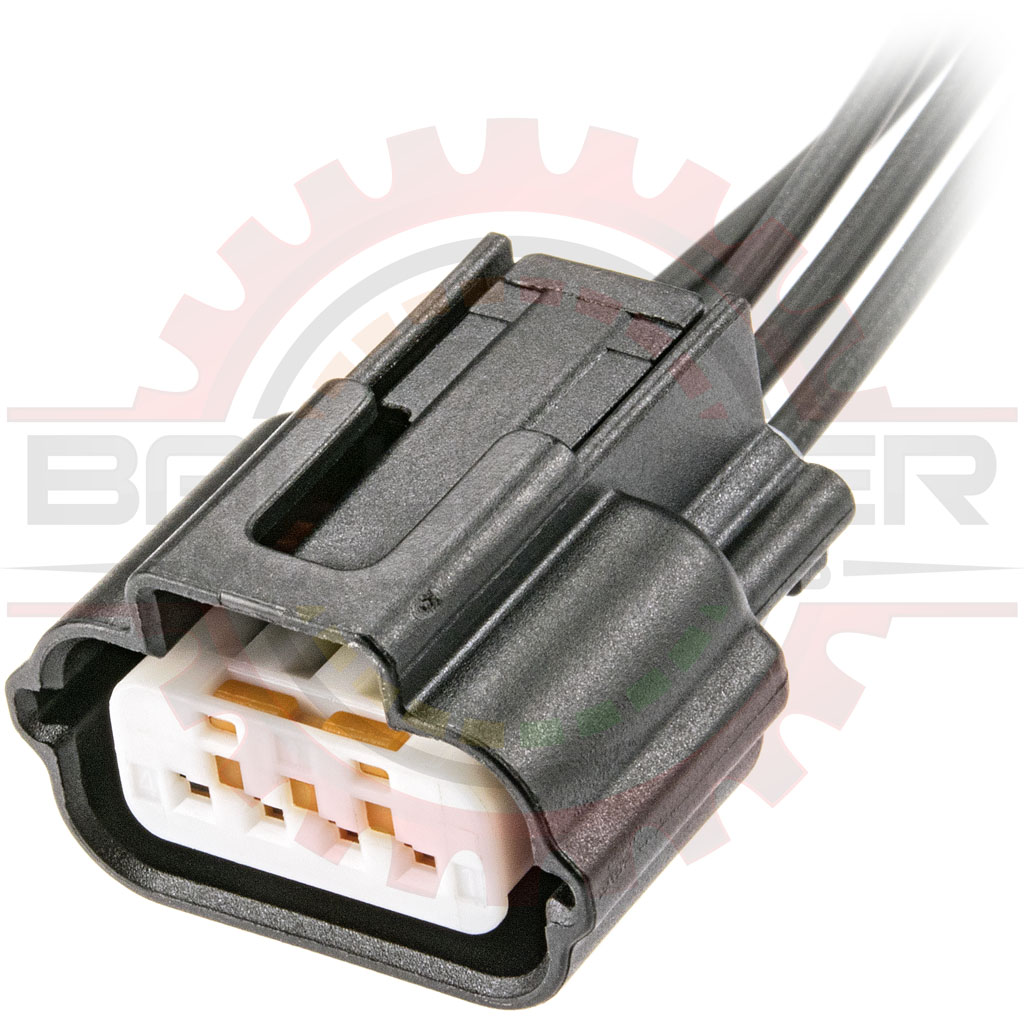

4 Way Connector Plug Pigtail For Yamaha IAC. Connector pigtail. Includes connector and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Used for the idle air connection on some Yamaha throttle bodies

IAC on Yamaha throttle body 5S9-E3750-00 for 2009-2015 Yamaha Zuma 125

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Terminals	CONN-100978	Sealed Female Terminal for Yamaha TB & IAC 0.35-0.5mm2 (22-20AWG)
Seals	CONN-00193	Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor
4-way Connector Only	CONN-100975	4 Way Connector Plug For Yamaha Throttle Bodies
4-way Connector Kit	CONN-76045	4 Way Connector Plug Kit For Yamaha IAC
4-way Connector Pigtail	CONN-86045	4 Way Connector Plug Pigtail For Yamaha IAC
Cavity Plug	CONN-56557	GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
Associated Connectors
Terminals	CONN-100978	Sealed Female Terminal for Yamaha TB & IAC 0.35-0.5mm2 (22-20AWG)
Seals	CONN-00193	Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor
5-way Connector Only	CONN-100976	5 Way Connector Plug For Yamaha Throttle Bodies
5-way Connector Kit	CONN-76046	5 Way Connector Plug Kit for Yamaha Throttle Bodies
5-way Connector Pigtail	CONN-86046	5 Way Connector Plug Pigtail for Yamaha Throttle Bodies
Cavity Plug	CONN-56557	GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm

Applications

Applications:

Yamaha Throttle Body devices
2009-2015 Yamaha Zuma 125 throttle body IAC
Many applications not listed

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 0.63mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 20

This product contains the following items:
	» 4 x 20AWG Automotive TXL Wire Black Part # WIRE-00458S
	» 20 x Labor $0.25/minute Part # LABR-00001
	» 4 x Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor Part # CONN-00193
	» 1 x 4 Way Connector Plug For Yamaha Throttle Bodies Part # CONN-100975
	» 4 x Sealed Female Terminal for Yamaha TB & IAC 0.35-0.5mm2 (22-20AWG) Part # CONN-100978
