Toyota Style Injector & Coil Connector Mate Pigtail	Part # CONN-85974

Pricing
1 +	$5.99
50 +	$5.75
100 +	$5.25
Information
Bmotorsports Part #	CONN-85974
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

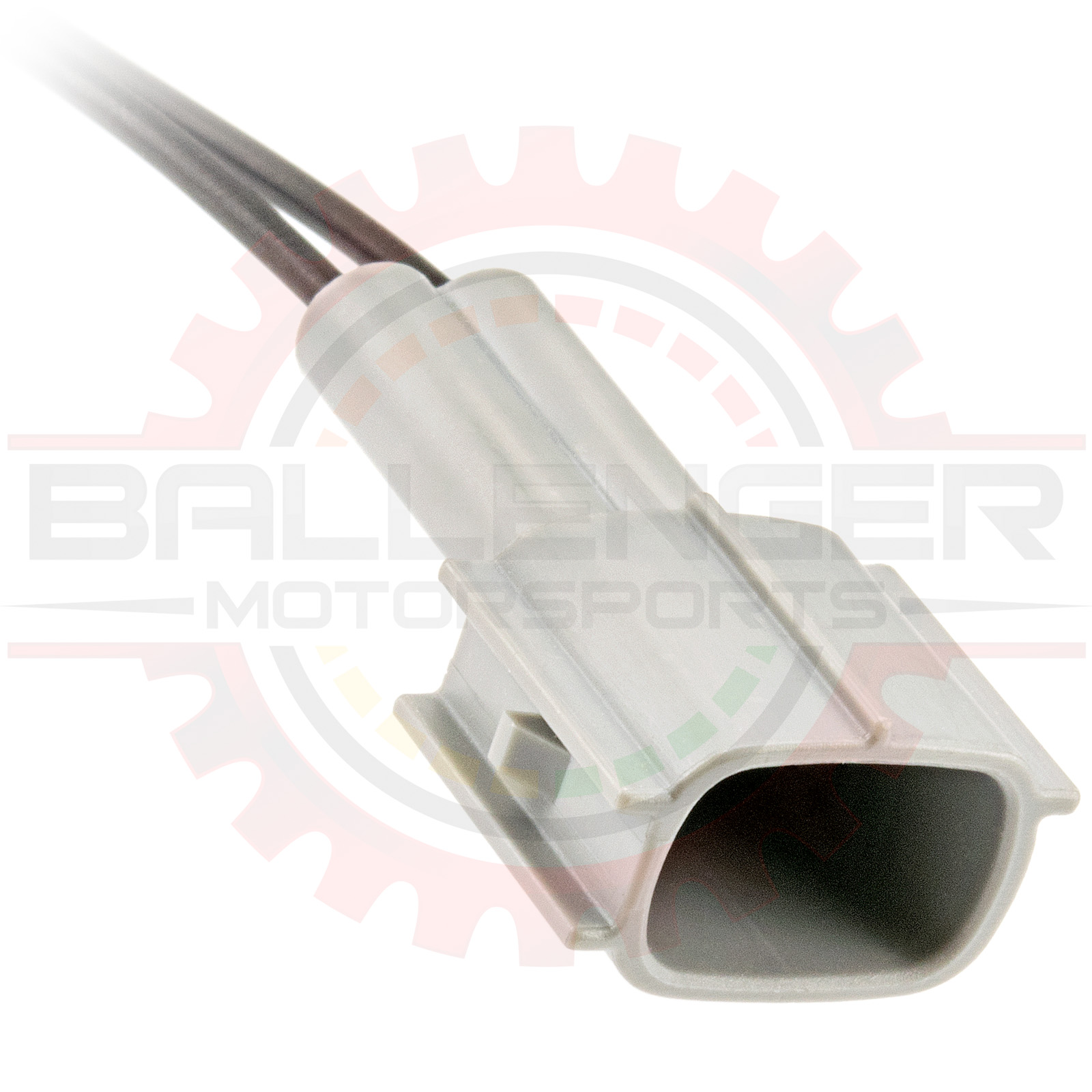

Toyota Style Injector & Coil Connector Mate Pigtail. Connector Pigtail. A completed pigtail is provided.

This connector receptacle is the same as the connector molded into Toyota injectors on millions of applications worldwide. This allows plug n play adapters to be made, breakout harnesses, and all sorts of applications previously unavailable.

This is not an OEM component as no such part is made. In the past, low quality mates were available and we avoided them due to quality problems. This high quality custom part uses genuine OEM terminals and seals and we are happy to finally make this high quality option available to the public!

Mates with Toyota # 90980-11875.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-100806	Toyota Injector Side Connector Receptacle
Connector Kit	CONN-75974	Toyota Style Injector & Coil Connector Mate Kit
Pigtail	CONN-85974	Toyota Style Injector & Coil Connector Mate Pigtail
Mating Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-11855	Toyota Style 2 way Injector Connector & Ignition Coil, Gray (connector only) - 90980-11875
Connector Kit	CONN-75757	2-way Toyota Style Injector Connector & Ignition Coil Connector Kit, Gray - 90980-11875
Pigtail	CONN-85757	2-way Toyota Style Injector Connector & Ignition Coil Connector Pigtail, Gray - 90980-11875

Applications

Toyota Injector Side Connector Receptacle
Lexus Injector Side Connector Receptacle
Subaru BRZ Injector Side Connector Receptacle
Fits millions of other sensor, injector, coil & solenoid applications

Specifications

Parameter Value
Number of Ways 2
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 2 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 2 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 2 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge ) Part # CONN-100069
	» 1 x Toyota Injector Side Connector Receptacle Part # CONN-100806
