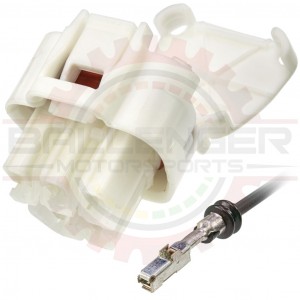

5 Way Plug Connector Pigtail for Toyota Fuel Pump Connections 90980-11077	Part # CONN-86060

Pricing
1 +	$9.49
25 +	$8.99
50 +	$7.25
100 +	$6.99
1000 +	$5.99
Information
Bmotorsports Part #	CONN-86060
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

5 Way Plug Connector Pigtail for Toyota Fuel Pump Connections 90980-11077. Connector pigtail. A complete pigtail is provided.

Used on many 1990s-current Toyota's Camry, Corolla, Supra, and many more.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100982	5 Way Plug Assembly for Toyota Fuel Pump Connections 90980-11077
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-76060	5 Way Plug Connector Kit for Toyota Fuel Pump Connections 90980-11077
Connector Pigtail	CONN-86060	5 Way Plug Connector Pigtail for Toyota Fuel Pump Connections 90980-11077

Applications

Applications:

Toyota Camry Fuel pump connector
Toyota Corolla Fuel pump connector
Toyota Supra Fuel pump connector
Geo Prizm Fuel pump connector
Many other fuel pump applications not listed

Specifications

Parameter Value
Number of Ways 5
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 25 x Labor $0.25/minute Part # LABR-00001
	» 5 x 16AWG Automotive TXL Wire Black Part # WIRE-00460s
	» 5 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 5 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 5 Way Plug Assembly for Toyota Fuel Pump Connections 90980-11077 Part # CONN-100982
