Description

Now one In Stock!

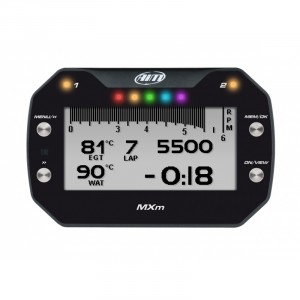

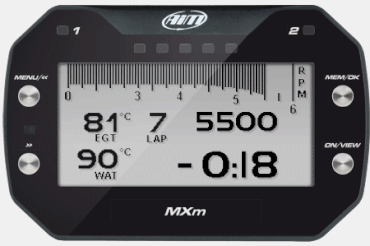

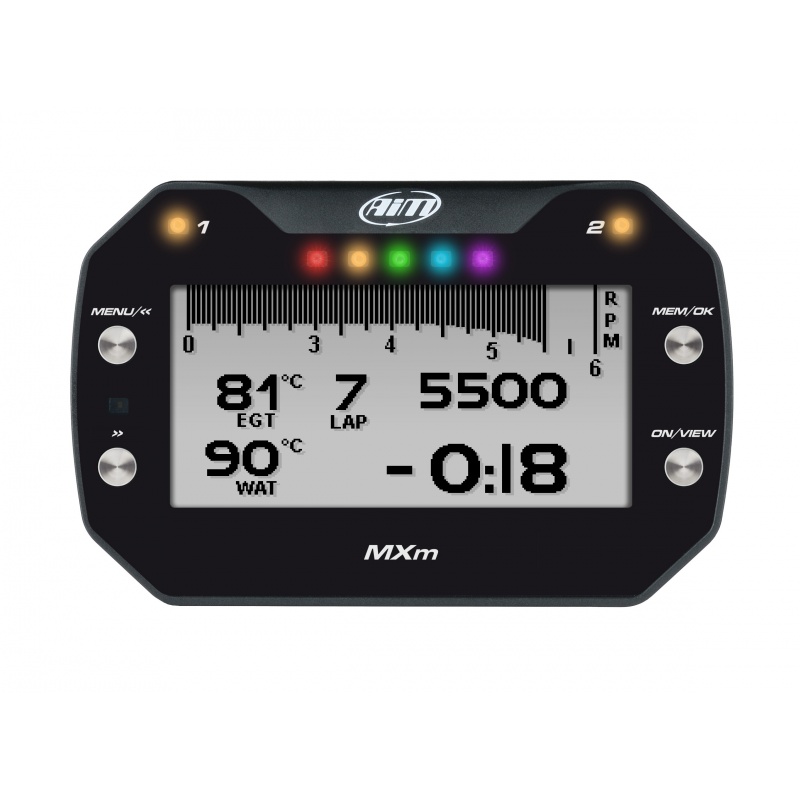

MXm is a compact-sized dash logger designed for racers needing all the essential information to monitor their vehicle behavior and improve their performance. It has been designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the internal GPS receiver, analog/digital inputs and predefined math channels. The spectrum of data acquired can also be incremented adding expansion modules. ECU connection Analog/digital inputs Internal accelerometer and gyro Math channels GPS08 Module Choose your own data layout You can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit. Easy to read in any light conditions MXm features a wide 268x128 pixel graphical display. The screen can be backlited in one of the seven available colors. The incorporated light sensor makes brightness and contrast ideal in all light conditions. Flexible alarms and shift lights MXm features two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their color, select a solid alarm - or flashing one - and the flashing frequency. Shift Lights are completely configurable, too. The five RGB LEDs can be customized to your liking, and for each unique gear when required. Two digital outputs MXm features two digital outputs. Each of them can give an output of 20 Amp max. at 12 Volts: they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens. More info Data recall At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures. Wi-Fi connectivity Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 meters away. Race Studio 3 With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, math channels, display pages, digital outputs, alarms, dhift lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras. With Race Studio 3 you can also analyze all data recorded by MXm and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances. Expansions A number of expansions can be added to MXm for incrementing the performance and the data acquired: Channel Expansion It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed. TC Hub It adds 4 K thermocouples. LCU-One Lambda Controller Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion. SmartyCam HD cameras The on-board cameras that overlays on videos the data sampled by your logger.

Specifications

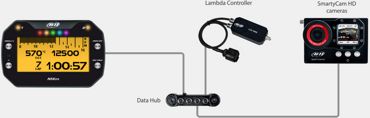

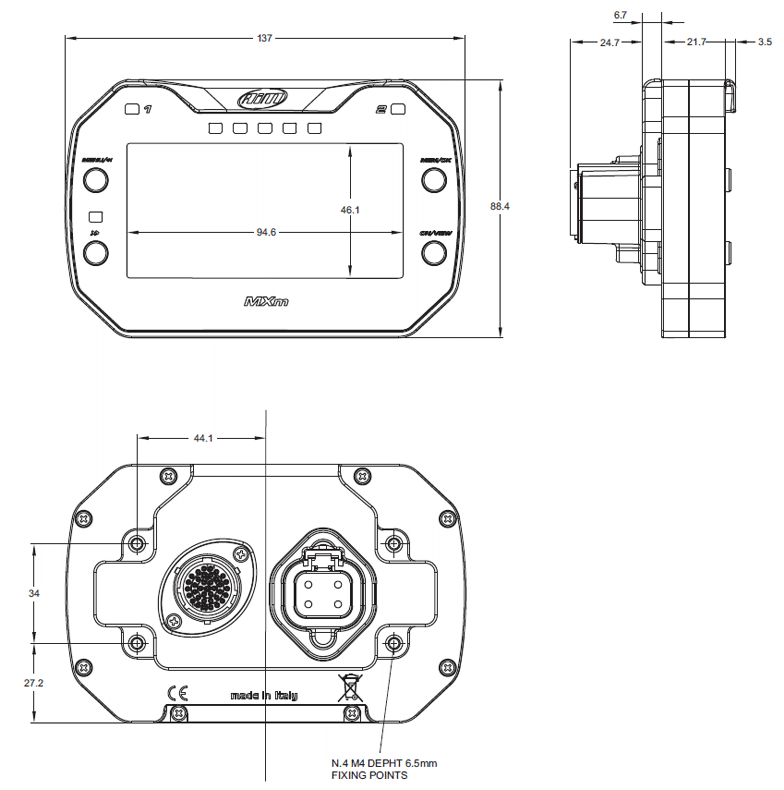

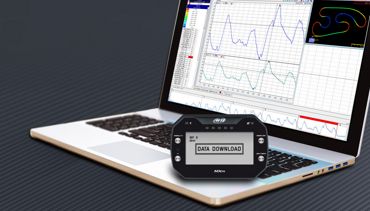

MXm Display resolution 268 x 128 pixels Backlight 7 configurable RGB colors Ambient light sensor Yes Shift lights 5 configurable RGB LEDs Alarm LEDs 2 configurable RGB LEDs CAN connections 2 ECU connection CAN, RS232 or K-Line to 1,000+ industry leading ECUs GPS Integrated External modules Channel Expansion, Thermocouple Expansion, Lambda Controller, SmartyCam HD Analog inputs 4 fully configurable, max 1,000 Hz each Digital inputs 2 speed inputs, lap signal, coil RPM input Digital outputs 2 high-side Inertial platform Internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer WiFi connection Yes Internal memory 4 GB Body Glass fiber reinforced Nylon Pushbuttons Metallic Connectors 37 pins Motorsport connector + 4 pins power connector Dimensions 137 x 88.4 x 31.9 mm Weight 330 g Waterproof IP65

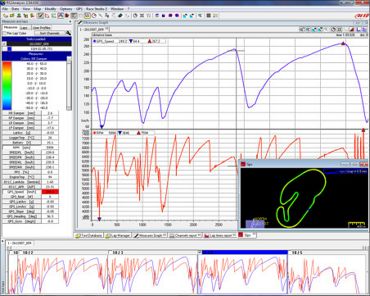

MXm, GPS Module with cable, USB cable, 37 pins standard harness, Race Studio 3 software.
