2 Way MQS Connector Pigtail for Mercedes Benz Applications	Part # CONN-85999

Pricing
1 +	$8.99
50 +	$7.99
100 +	$6.99
Information
Bmotorsports Part #	CONN-85999
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

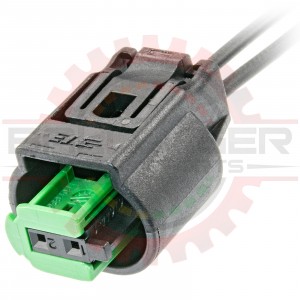

2 Way MQS Connector Pigtail for Mercedes Benz Applications. Connector Pigtail. A completed pigtail is provided.

This 2 Way MQS Connector Plug Pigtail for Mercedes Benz Applications is from the OEM connector manufacturer, and the crimp terminations are performed and checked here at our facility in the USA. Used on Mercedes Benz applications for mostly temperature sensors, but there may be many other applications not listed as well.

Bosch Motorsport Connector# F 02U B00 241-01

Nissan # AAZ02FB

ACDelco pigtail equivalent PT2550

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100241	AMP Micro-Power & Power Quadlok Terminal, 0.22 - 0.5 mm2 (24 - 20 AWG)
Seals	CONN-100715	Seal for C7 Corvette oxygen sensor Connectors 26-16AWG (0.22 - 1.0mm2)
Connector Housing	CONN-100921	2 Way MQS Connector Plug Assembly for Mercedes Benz Applications
Connector Kit	CONN-75999	2 Way MQS Connector Kit for Mercedes Benz Applications
Pigtail	CONN-85999	2 Way MQS Connector Pigtail for Mercedes Benz Applications

Applications

Mercedes Benz temperature sensors
Nissan # AAZ02FB
Sensor & Device Connector on other applications
ACDelco PT2550

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 0.63mm
Terminal Type Flat
Min. Wire Gauge 24
Max. Wire Gauge 20

This product contains the following items:
	» 2 x 20AWG Automotive TXL Wire Black Part # WIRE-00458S
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 2 x AMP Micro-Power & Power Quadlok Terminal, 0.22 - 0.5 mm2 (24 - 20 AWG) Part # CONN-100241
	» 2 x Seal for C7 Corvette oxygen sensor Connectors 26-16AWG (0.22 - 1.0mm2) Part # CONN-100715
	» 1 x 2 Way MQS Connector Plug Assembly for Mercedes Benz Applications Part # CONN-100921
