HKS Connector Kit to adapt NGK / NTK Wideband O2 Sensor for HKS Wideband A/F Knock Amp - HKS pn 44999-AK003	Part # CONN-75790

Pricing
1 +	$7.99
5 +	$7.89
10 +	$7.79
25 +	$7.69
50 +	$7.59
100 +	$6.99
1000 +	$5.99
Information
Bmotorsports Part #	CONN-75790
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

HKS Connector Kit to adapt NGK / NTK Wideband O2 Sensor for HKS Wideband A/F Knock Amp - HKS pn 44999-AK003
6-way Receptacle Connector Body HM Sealed Series (HKS UEGO)
About this kit: This kit comes with the HKS style connector, terminals, seals & plugs to allow a user to modify their NTK sensor to plug into the HKS Wideband A/F Knock Amp ( pn 44006-AK001 ).

Additional Information: Color Chart to Adapt NTK sensor to HKS Connector

6-way Receptacle Connector Body HM Sealed Series (HKS UEGO)

Associated & Mating Parts

Relationship	Part #	Description
Terminals	CONN-00115	Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing	CONN-00140	6-way Receptacle Connector Body HM Sealed Series (HKS UEGO)
Connector Kit	CONN-75790	HKS Connector Kit to adapt NGK / NTK Wideband O2 Sensor for HKS Wideband A/F Knock Amp - HKS pn 44999-AK003
Pigtail	CONN-85790	HKS Connector Pigtail to adapt NGK / NTK Wideband O2 Sensor for HKS Wideband A/F Knock Amp - HKS pn 44999-AK003

Applications

Specifications

Parameter Value
Number of Ways 6
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 16

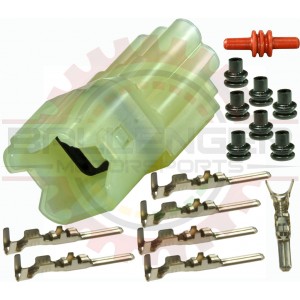

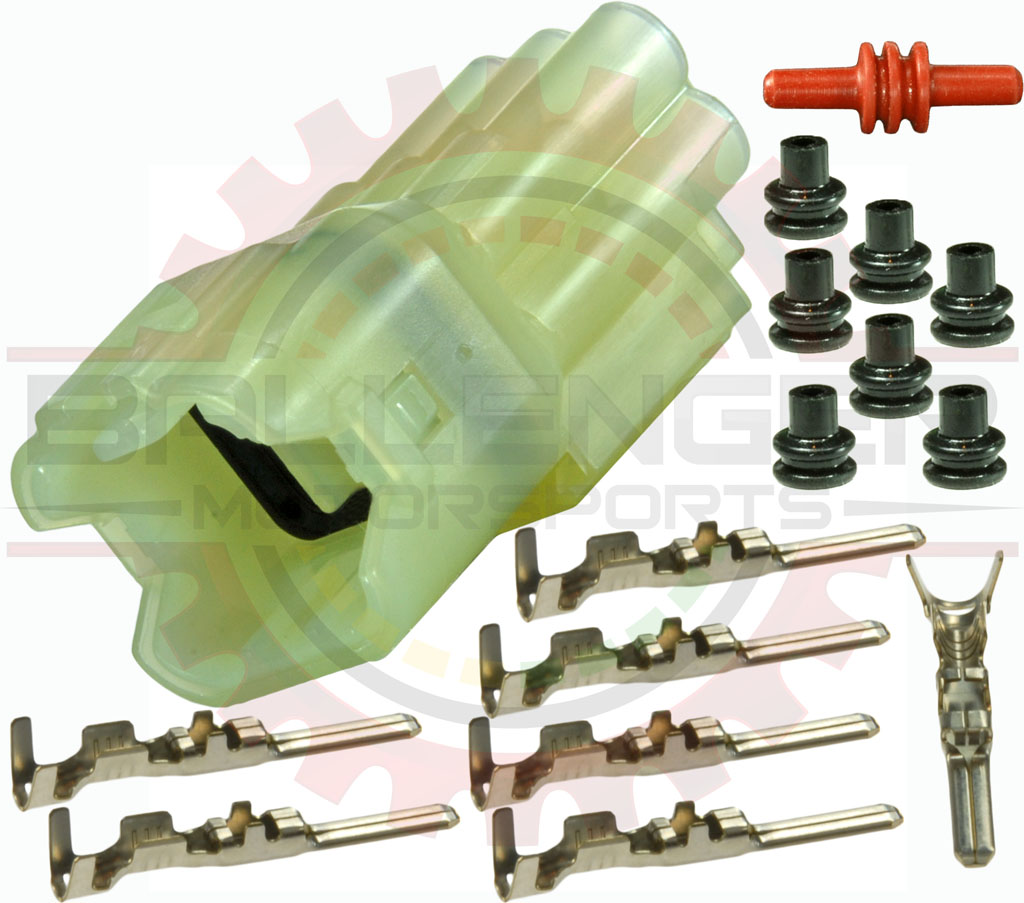

This product contains the following items:
	» 1 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug Part # CONN-56059
	» 6 x Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle Part # CONN-00115
	» 6 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 1 x 6-way Receptacle Connector Body HM Sealed Series (HKS UEGO) Part # CONN-00140
