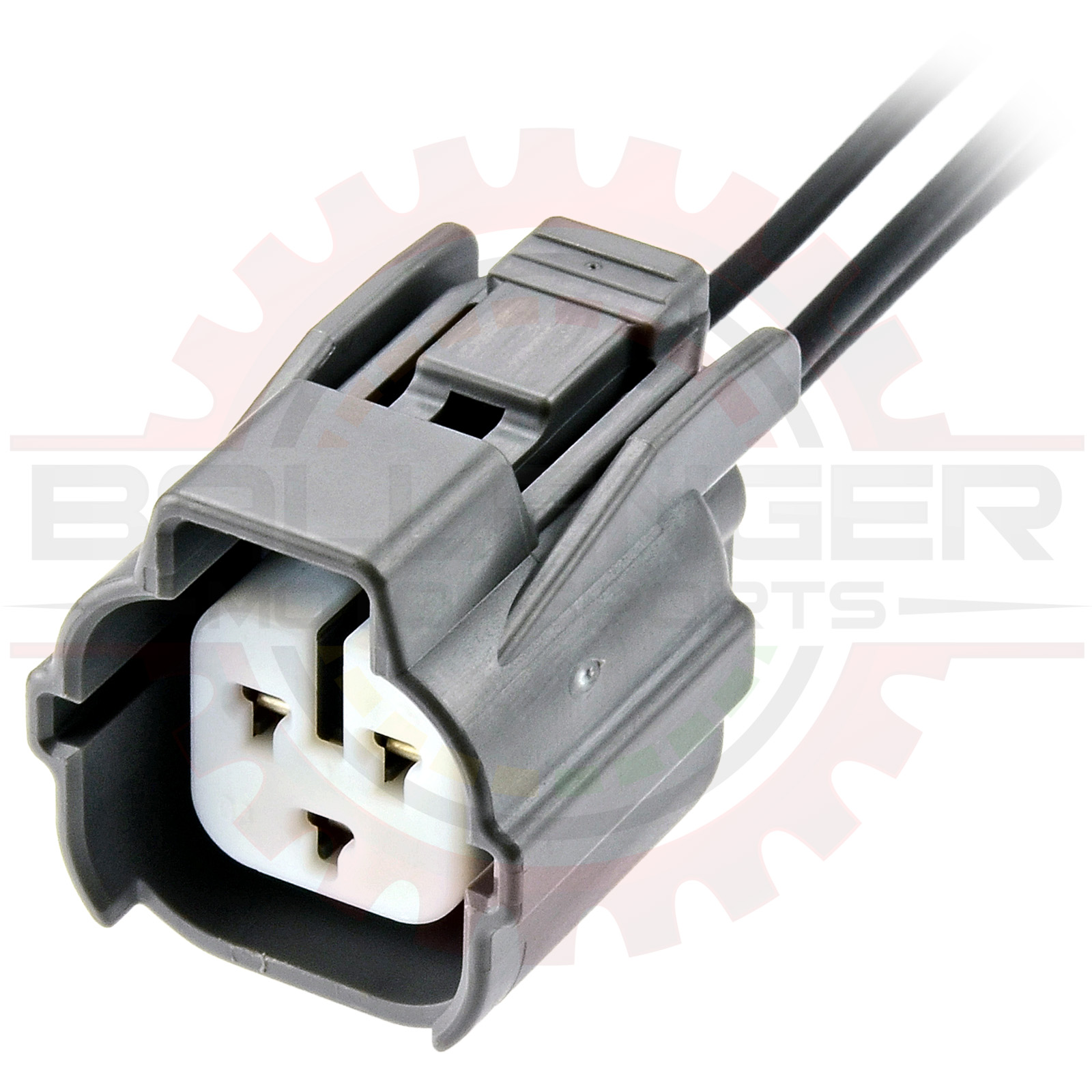

3 Way Sumitomo HW Plug Connector Pigtail, for Industrial Pressure Sensor	Part # CONN-85868

Pricing
1 +	$10.49
50 +	$9.99
100 +	$8.99
Information
Bmotorsports Part #	CONN-85868
Availability	In Stock
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

3 Way Sumitomo HW Plug Connector Pigtail, for Industrial Pressure Sensor. Connector Pigtail. A completed pigtail is provided.

This 3 Way Sumitomo HW Plug Connector Pigtail is from the OEM connector manufacturer, and the crimp terminations are performed and checked here at our facility in the USA using OEM quality crimp dies available as TOOL-00924. Used on many different Industrial Pressure sensor applications, but there may be many other applications not listed as well.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11656	Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-100735	3 Way Sumitomo HW Plug Connector Assembly, for Industrial Pressure Sensor
Connector Kit	CONN-75868	3 Way Sumitomo HW Plug Connector Kit, for Industrial Pressure Sensor
Pigtail	CONN-85868	3 Way Sumitomo HW Plug Connector Pigtail, for Industrial Pressure Sensor

Applications

Industrial Pressure sensor applications
Sensor & Device Connector on other applications

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 15 x Labor $0.25/minute Part # LABR-00001
	» 3 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 3 x Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy] Part # CONN-11656
	» 3 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 1 x 3 Way HW Plug conector only Part # CONN-100648
	» 1 x 3 Way HW Plug Front Lock Only Part # CONN-100646
