Knock Sensor Connector Plug Assembly for LS2 LS3 LS7 LS9	Part # CONN-100865

Pricing
1 +	$6.99
25 +	$6.49
50 +	$6.25
100 +	$5.99
1000 +	$4.99
Information
Bmotorsports Part #	CONN-100865
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

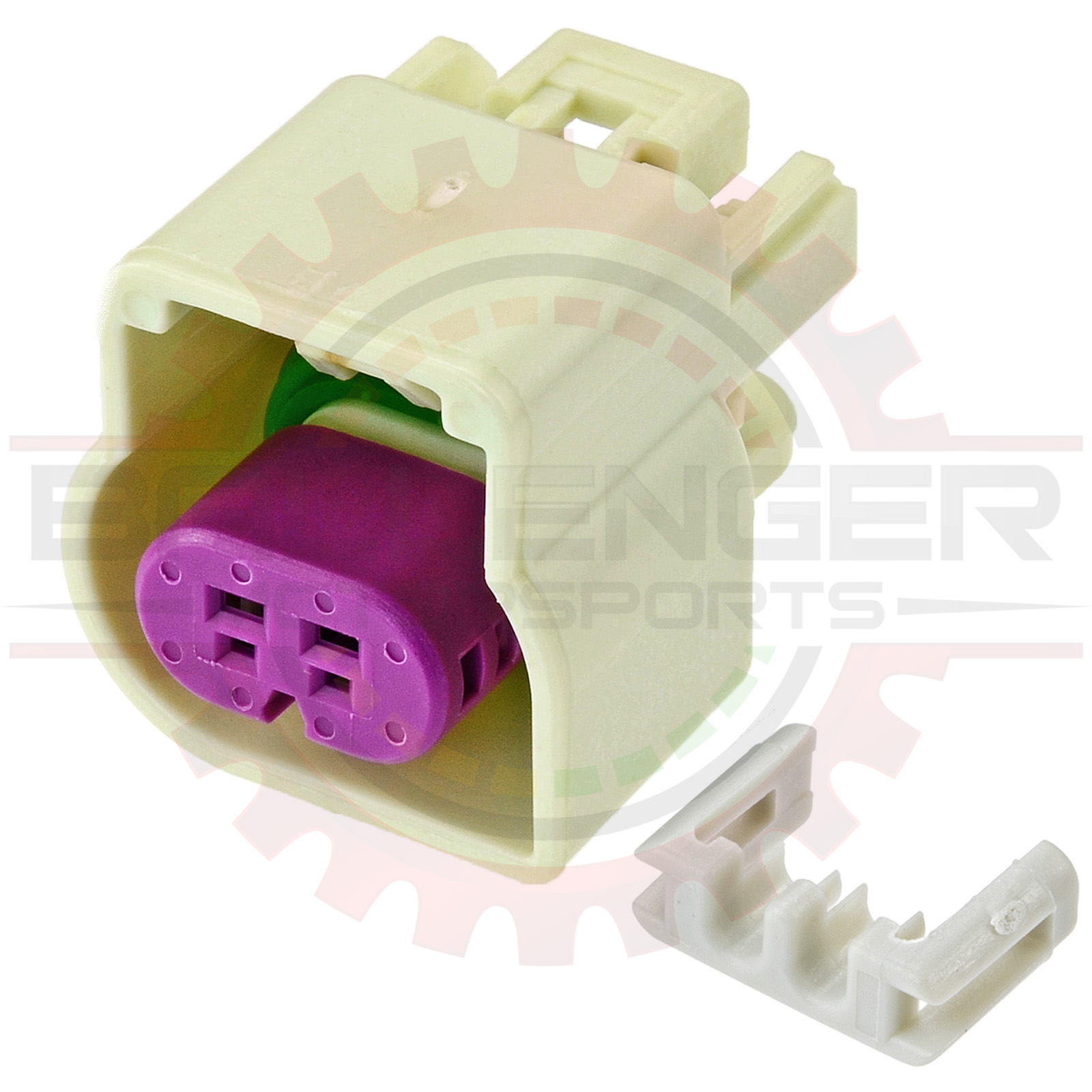

Knock Sensor Connector Assembly for GM LS Engines. Connector and TPA ONLY. Terminals and seals not included.

Used on Gen IV & Gen V LS Engines such as LS2 LS3 LS7 LS9. Used on MANY other GM applications, see applications list for more.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100865	Knock Sensor Connector Plug Assembly for LS2 LS3 LS7 LS9
Terminals	CONN-56456	GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
Seals	CONN-56555	GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
Connector Kit	CONN-75866	Knock Sensor Connector Plug Kit for LS2 LS3 LS7 LS9
Connector Pigtail	CONN-85866	Knock Sensor Connector Plug Pigtail for LS2 LS3 LS7 LS9
Mating Parts
Terminals	CONN-56460	GM Delphi / Packard - GT 150 Male Terminal ( 20 - 16 gauge )
Seals	CONN-56555	GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
Connector Housing	CONN-100864	2 Way GT150 Receptacle Assembly
Connector Kit	CONN-75996	2 Way GT150 Receptacle Connector Kit
Pigtail	CONN-85996	2 Way GT150 Receptacle Connector Pigtail

Applications

Applications:

Gen IV LS Engines
7.0L
LS7
L92
L94
L99
L9H
LS3
LS9
LSA
6.2L
6.0L
L76
L77
L96
LC8
LFA
LS2
LY6
LZ1
5.3L
LC9
LH6
LH8
LH9
LMF
LMG
LS4
LY5
4.8L
L20
LY2
Gen. V
6.2L
L86
LT1
LT4
5.3L
L83
Buick Regal
Cadillac ATS
Cadillac CTS
Cadillac Escalade
Chevy Malibu
Chevy Silverado
Chevy Corvette
Chevy Camaro
Chevy Tahoe
Chevy Suburban
Chevy Impala
Chevy Colorado
GMC Canyon
GMC Sierra
GMC Yukon
Many applications not listed

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 1 x Knock Sensor Connector Plug for LS2 LS3 LS7 LS9 Part # CONN-100733
	» 1 x 2 Way GT150 Standard TPA Part # CONN-100863
