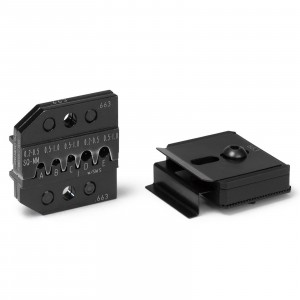

This is a production quality hand crimp tool that can be purchased for the terminals listed below. Includes crimp die set, terminal locator, and wirestop to aid in the production of crimps.

If you wish to buy more than the available quantity listed, please email us at sales@bmotorsports.com so that we can assist you with your order.

Once out of stock, the part will be listed as "Special Order" and is subject to 8-12 weeks standard lead time.
The part may however already be on order and due to arrive sooner, feel free to contact us for more details.

For use with TE TAB / 1.6 x 0.6 Micro Power Timer Mark II LSU 4.9 Male connector terminals:
CONN-00196 Male MCP 1.5 terminal for Bosch LSU 4.9 Receptacle Connector

Must be used with the following crimp handles:
Production Quality Hand Crimper

Example pictures of crimper with dies are below. Crimper is sold seperately.

Terminal P/N		962944 / 962942 964262 / 964261 965915 / 965914	962945 / 962943 964264 / 964263	964349 / 964348 (unsealed)	969019 969029 / 964028 (SWS)	1241733 / 1241732 (SWS) 964275 / 964274 (SWS)	969005 (SWS)
Terminal P/N		964266 / 964265	964268 / 964267		1241731 / 1241730	964270 / 964269
Cable Range SQ-MM		0.20 - 0.50	0.50 - 1.00	0.50 - 1-00	0.20 - 0.50	0.50 - 1.00	0.2 - 0.5
Cable Insulation Range mm		1.15 - 1.60	1.40 - 2.10	1.40 - 2.10	1.15 - 1.60	1.40 - 2.10	2.6
Gender		Male and Female
