1 Way Oil Pressure Sender (OSW, MOPS), Knock Sensor Connector Kit (Toyota # 90980-11363)	Part # CONN-76068

Pricing
1 +	$6.99
50 +	$6.75
100 +	$6.49
Information
Bmotorsports Part #	CONN-76068
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

1 Way Oil Pressure Sender (OSW, MOPS), Knock Sensor Connector Kit (Toyota # 90980-11363). Connector Kit. Terminals and seals are included.

Oil Pressure Sender Connector on thousands of Toyota & Lexus applications. The oil pressure sending unit is often found near the oil filter on many Toyota engines, and this is but one of many connectors for the various senders used over the years. Can also be found on the high lift valve mechanism on 2ZZ-GE engines.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing	CONN-100724	1 Way Oil Pressure Sender (OSW, MOPS), Knock Sensor Connector Plug (Toyota # 90980-11363)
Connector Kit	CONN-76068	1 Way Oil Pressure Sender (OSW, MOPS), Knock Sensor Connector Kit (Toyota # 90980-11363)
Pigtail	CONN-86068	1 Way Oil Pressure Sender (OSW, MOPS), Knock Sensor Connector Pigtail (Toyota # 90980-11363)

Applications

Toyota Oil Pressure Sender Connector
Lexus Oil Pressure Sender Connector
1ZZ-FE Oil Pressure Sender Connector
2ZZ-GE Oil Pressure Sender Connector (OPS)
2ZZ-GE Lift Oil Pressure Sender Connector (MOPS)

Specifications

Parameter Value
Number of Ways 1
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 16

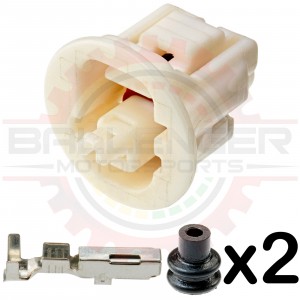

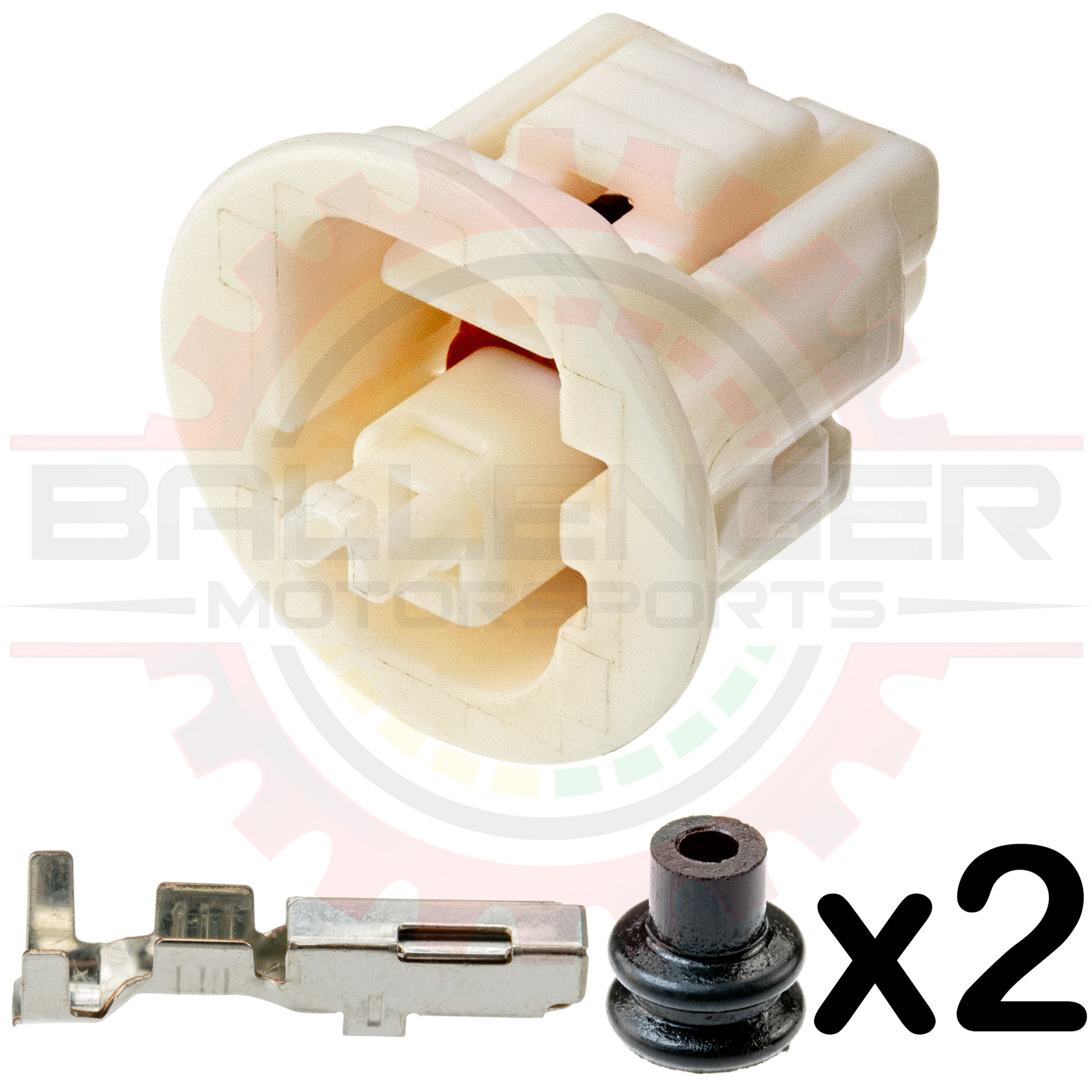

This product contains the following items:
	» 2 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 2 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 1 Way Oil Pressure Sender (OSW, MOPS), Knock Sensor Connector Plug (Toyota # 90980-11363) Part # CONN-100724
