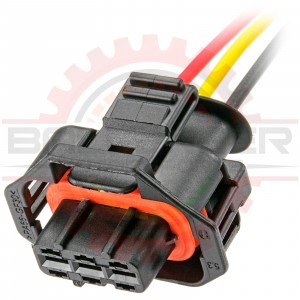

3-way Sealed Plug Bosch BDK Connector Pigtail for Diesel Injection Pump & Cummins Fuel Rail Part # CONN-86047
3-way Sealed Plug Bosch BDK Connector Pigtail for Diesel Injection Pump & Cummins Fuel Rail 3-way Sealed Plug Bosch BDK Connector Pigtail for Diesel Injection Pump & Cummins Fuel Rail 3-way Sealed Plug Bosch BDK Connector Pigtail for Diesel Injection Pump & Cummins Fuel Rail
Pricing
1 + $14.99
50 + $14.49
100 + $13.99
250 + $12.49
1000 + $11.25
Information
Bmotorsports Part # CONN-86047
Availability In Stock
Shipping Weight 0.09 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

3-way Sealed Plug Bosch BDK Connector Pigtail for Diesel Injection Pump & Cummins Fuel Rail. Connector Pigtail. A completed pigtail is provided.

Used as the OEM connector for many MAP sensors, Cummins Fuel Rail Pressure Sensor, and various other pressure sensors. This is the more expensive Bosch (OEM) version of this product. For the alternate and cost-effective Delphi / GM version, please see CONN-100483


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector Only CONN-115603 Way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail
Terminals CONN-11561Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Seals CONN-11562Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Connector Kit CONN-760473-way Sealed Plug Bosch BDK Connector Kit for Diesel Injection Pump & Cummins Fuel Rail
Pigtail CONN-860473-way Sealed Plug Bosch BDK Connector Pigtail for Diesel Injection Pump & Cummins Fuel Rail
Associated Parts Using Cost Effective JPT terminals
Connector Only CONN-100483GM Delphi / Packard - 3-way sealed Plug Bosch Connector Assembly for Diesel Injection Pump
Terminals CONN-10575Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Kit CONN-75672GM Delphi / Packard - 3-way sealed Plug Bosch Connector Kit for Diesel Injection Pump
Production Connector Kit CONN-75672pGM Delphi / Packard - 3-way sealed Plug Bosch Connector Kit for Diesel Injection Pump - Production Kit
Pigtail CONN-85672GM Delphi / Packard - 3-way sealed Plug Bosch Connector Pigtail for Diesel Injection Pump
Mating Parts
Connector Only CONN-115553-way sealed Receptacle Bosch Connector Assembly for Diesel Injection Pump
Terminals CONN-10555Junior Power Timer Male Terminal for 20 - 16 gauge wire
Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Kit CONN-755983-way sealed Receptacle Bosch Connector Assembly Kit for Diesel Injection Pump
Production Connector Kit CONN-75598p3-way sealed Receptacle Bosch Connector Assembly Kit for Diesel Injection Pump, Production Kit
Pigtail CONN-855983-way sealed Receptacle Bosch Connector Pigtail for Diesel Injection Pump
Connector Pairs
Connector Pair CONN-200016Sealed 3-way Bosch connector pair for Diesel injection pump
Extensions
Extension Harness CONN-85769GM Delphi / Packard & Bosch - 3-way Diesel Injection Pump & MAP Extension Harness

Applications

Applications:

  • LSA motor in the CTSV or ZR1 camaro
  • 2009-2014 CTSV
  • GM LF1 on Cadillac CTS
  • Bosch Common Rail Diesel Connector
  • Oil Pressure Connector
  • Fuel Pressure Connector
  • Water / Coolant Pressure Connector
  • Clutch Pressure Connector
  • Cummins HPRS Connector 2003 - 2007, 05143781AA
  • Cummins HPRS Connector 2007 - 2012, 05183458AA
  • Cummins High Pressure Fuel Rail Sensor Connector 2003 - 2007, 05143781AA
  • Cummins High Pressure Fuel Rail Sensor Connector 2007 - 2012, 05183458AA

Cross-References:
  • Bosch Connector # 1 928 403 968, 1928403968
  • Chrysler, Dodge RAM # 05183458AA
  • Chrysler, Dodge RAM # 05143781AA


Specifications

Parameter Value
Number of Ways3
GenderPlug/Male
Terminal Size2.8mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
20AWG Automotive TXL Wire Black» 1 x 20AWG Automotive TXL Wire Black
Part # WIRE-00458S
20AWG Automotive TXL Wire Yellow» 1 x 20AWG Automotive TXL Wire Yellow
Part # WIRE-04458S
Labor $0.25/minute» 15 x Labor $0.25/minute
Part # LABR-00001
3 Way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail» 1 x 3 Way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail
Part # CONN-11560
Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)» 3 x Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Part # CONN-11561
Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)» 3 x Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Part # CONN-11562
20AWG Automotive TXL Wire Red» 1 x 20AWG Automotive TXL Wire Red
Part # WIRE-02458s
