Ford/Mazda/GM 6 Way with keyway for DBW Throttle Body Connector Plug Kit	Part # CONN-76080

Pricing
1 +	$11.99
25 +	$11.49
50 +	$11.25
100 +	$10.99
1000 +	$9.99
Information
Bmotorsports Part #	CONN-76080
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Ford/Mazda/GM 6 Way with keyway for DBW Throttle Body Connector Plug Kit. Connector kit. Terminals are included. Equivalent of kit version of Ford WPT-1063. Equivalent GM Service Connector kit# 13586581

Used on a wide variety of Ford TPS/ E-throttle & Mazda DBW Throttle applications.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-101007	Ford/Mazda/GM 6 Way with keyway for DBW Throttle Body Connector Plug
Terminals	CONN-100698	Ford/Mazda 6 Way MAF Connector Female Terminal, Tin, 20-18AWG (0.35 - 0.5mm2)
Connector Kit	CONN-76080	Ford/Mazda/GM 6 Way with keyway for DBW Throttle Body Connector Plug Kit
Connector Pigtail	CONN-86080	Ford/Mazda/GM 6 Way with keyway for DBW Throttle Body Connector Plug Pigtail
Mating Connectors
Connector Only	CONN-100716	Receptacle Connector Mate to Ford/Mazda 6 Way MAF Plug
Terminals	CONN-100861	Tin Plate Male Terminal for Mate to Ford/Mazda 6 Way MAF Connector, 20-18AWG (0.5 - 0.75mm2)
Connector Kit	CONN-75841
Connector Pigtail	CONN-85841
Extensions
Ford/Mazda 6 Way MAF Harness Extension	CONN-86194	3 Way Plug Connector Pigtail for BMW Sensors

Applications

Applications:

Equivalent GM Service Connector# 13586581
GM LT1 DBW Connector
GM LT4 DBW Connector
GM LT5 DBW Connector
WPT-1063
Some Ford MAF
Some Mazda MAF
Ford Fiesta MAF
Ford Fusion MAF
Ford Mustang DBW (2006+)

Specifications

Parameter Value
Number of Ways 6
Gender Plug/Male
Terminal Size 1mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 18

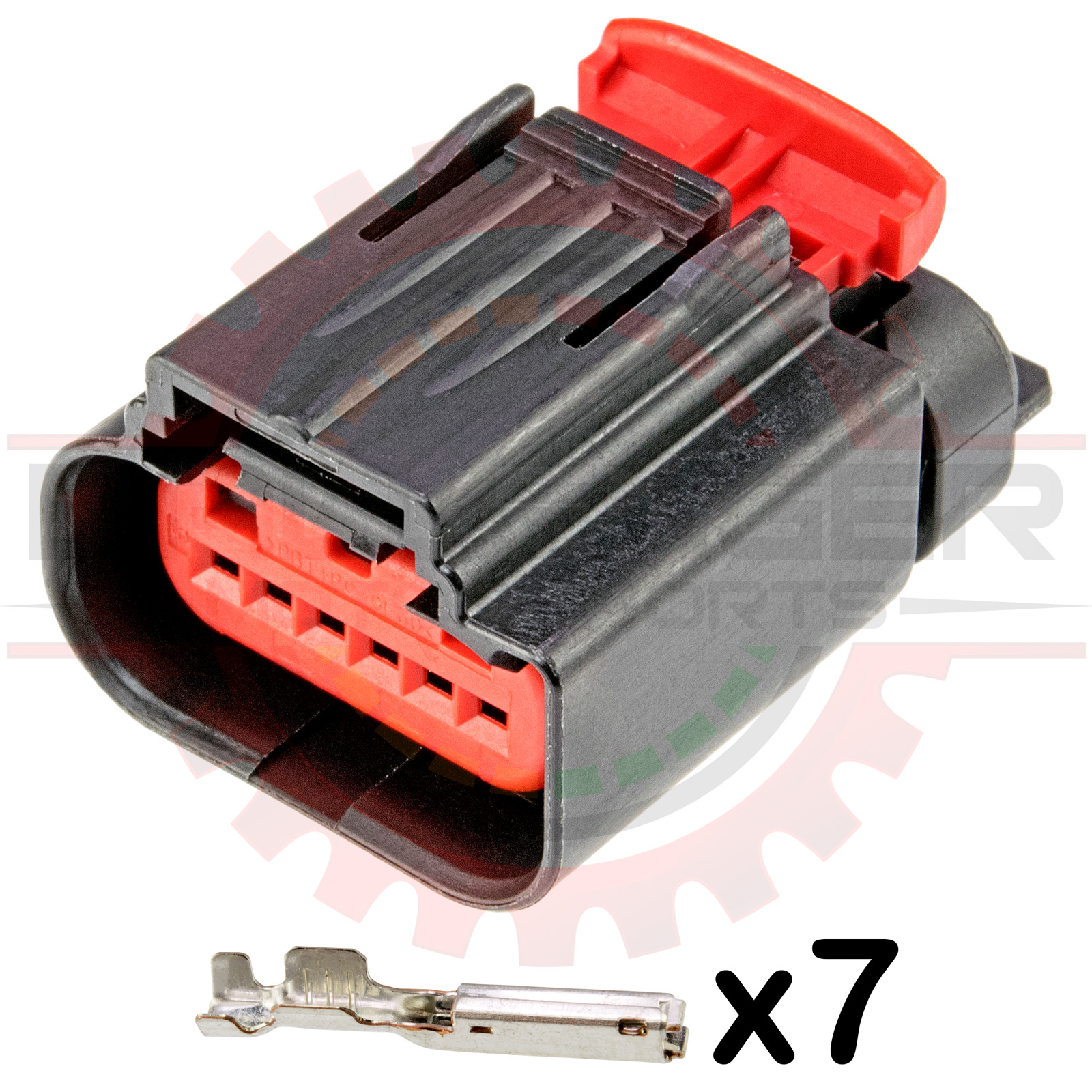

This product contains the following items:
	» 7 x Ford/Mazda 6 Way MAF Connector Female Terminal, Tin, 20-18AWG (0.35 - 0.5mm2) Part # CONN-100698
	» 1 x Ford/Mazda/GM 6 Way with keyway for DBW Throttle Body Connector Plug Part # CONN-101007
