2-way HW Connector Plug Kit for Honda VTEC Spool Valve	Part # CONN-76110

Pricing
1 +	$8.99
25 +	$7.99
100 +	$7.49
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-76110
Availability	In Stock
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

2-way Connector Plug Kit for Honda VTEC Spool Valve. Connector kit. Terminals are included. This connector uses push to seat terminals and a rear seal. You must load the seal onto the wire and then perform your crimps. You can then push the terminals into the connector housing, and then push the seal into the rear of the connector. Perform a push-pull test to check that the terminals are seated properly, and engage the front secondary terminal lock by pushing it down.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-101070	2-way HW Connector Plug for Honda VTEC Spool Valve
Terminals	CONN-100989	Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170
Connector Kit	CONN-76110	2-way HW Connector Plug Kit for Honda VTEC Spool Valve
Connector Pigtail	CONN-86110	2-way HW Connector Plug Pigtail for Honda VTEC Spool Valve

Applications

Applications:

Honda Acura VTEC Spool Valve Connector

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

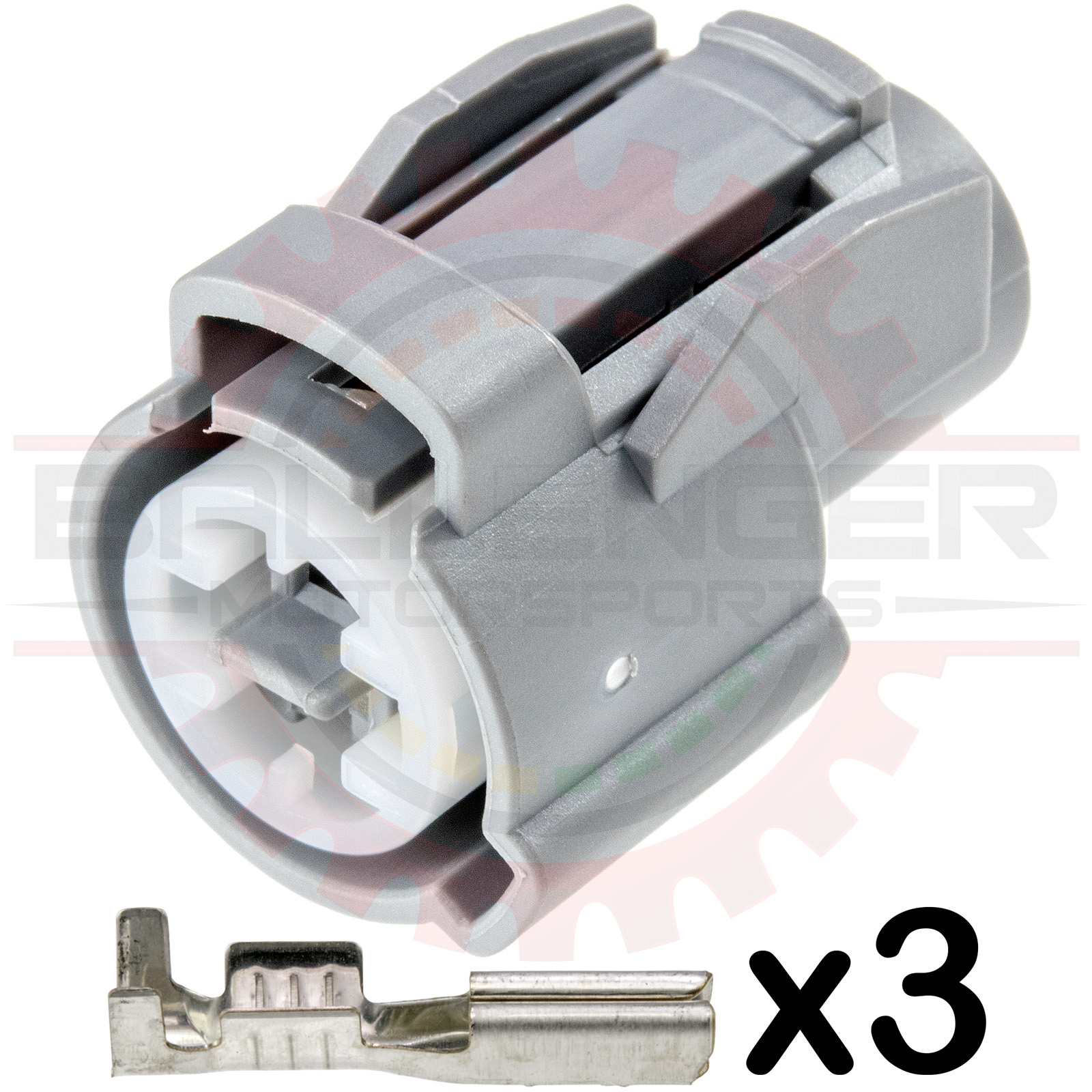

This product contains the following items:
	» 3 x Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170 Part # CONN-100989
	» 1 x 2-way HW Connector Plug for Honda VTEC Spool Valve Part # CONN-101070
