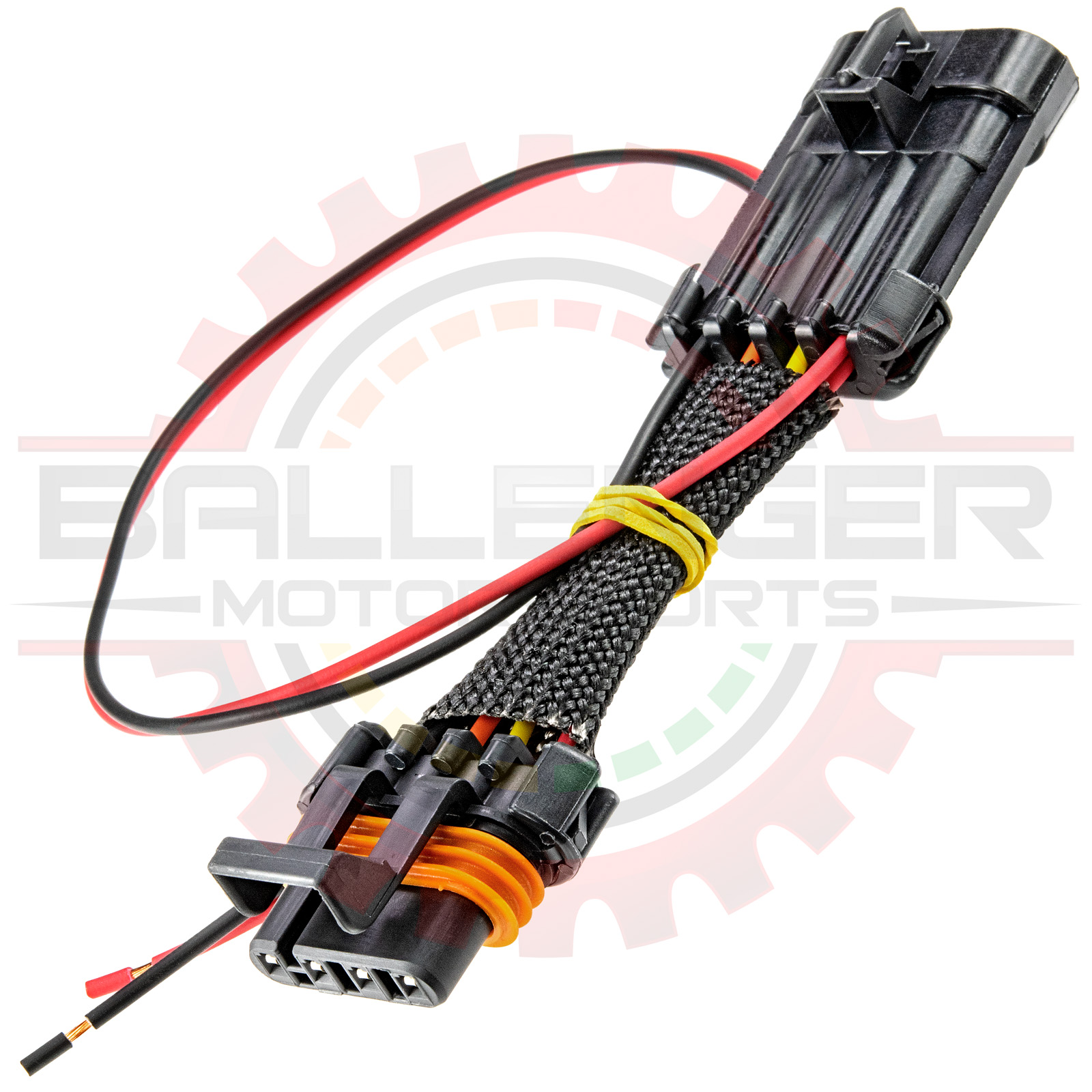

LS1 LS6 Ignition Coil breakout harness Metri-Pack 150	Part # CONN-86081

Pricing
1 +	$39.99
Information
Bmotorsports Part #	CONN-86081
Availability	In Stock
Shipping Weight	0.1 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

LS1 / LS6 Ignition Coil breakout harness Metri-Pack 150. An adapter used to break power + ground out of the ignition connection on many GM applications. Commonly used for Ethanol, E100, E85 Sensor power.

Applications:

Some LS1, LS6 ignition Coils
MANY more GM, MSD, Accel and other coils

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Only	CONN-02099	LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug assembly
Seal	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Terminal	CONN-56256	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )
Connector Kit	CONN-75601	LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug kit
Connector Pigtail	CONN-85601	LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug Pigtail
Associated Parts
Connector Only	CONN-02098	GM Delphi / Packard - 4 way metripack 150 female connector assembly, black ( Connector + TPA )
Terminal	CONN-56260	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Seal	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
16AWG Seal	CONN-56058	GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
Connector Kit	CONN-75597	GM Delphi / Packard - 4 way metripack 150 female connector assembly Kit, black
Connector Pigtail	CONN-85597	LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Receptacle Pigtail
Cavity Plug	CONN-56059	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug
Associated Parts
Ethanol Sensor	SNSR-25032	Continental Ethanol Content Sensor / Flex Fuel Sensor Kit
Extension
Extension	CONN-85707	O2 extender / coilpack extender

Applications

Some LS1, LS6 ignition Coils
MANY more GM, MSD, Accel and other coils

Specifications

Parameter Value
Number of Ways 4
Terminal Size 1.5mm
Terminal Size (Secondary) 1.5mm
Terminal Type Flat
Terminal Type (Secondary) Flat
Min. Wire Gauge 20
Max. Wire Gauge 16
