3 Way ECT, CLT, & Temperature Sensor Connector Plug Pigtail, Toyota # 90980-11016	Part # CONN-86028

Pricing
1 +	$11.99
50 +	$11.49
100 +	$10.99
Information
Bmotorsports Part #	CONN-86028
Availability	In Stock
Shipping Weight	0.03 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

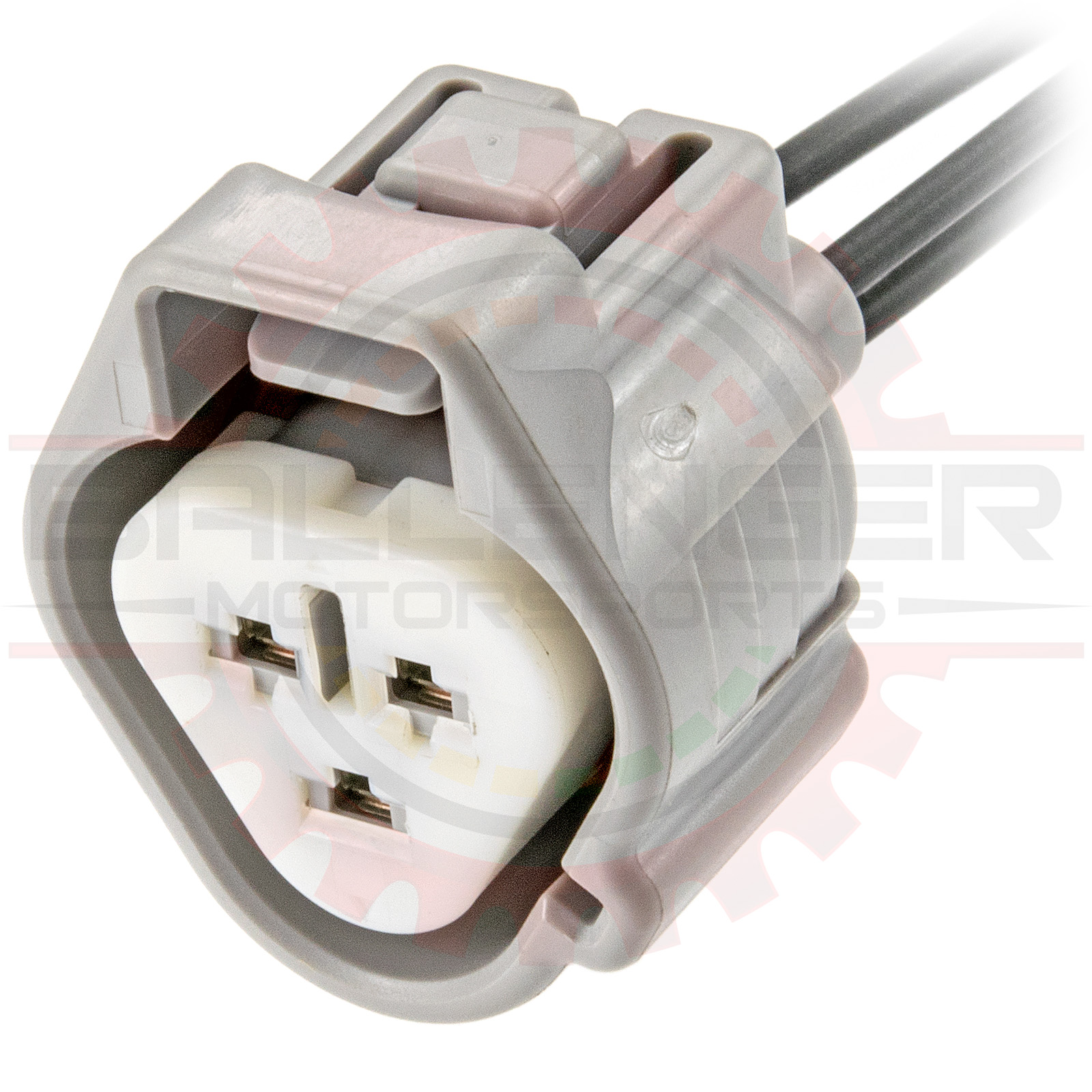

3 Way ECT, CLT, & Temperature Sensor Connector Plug Pigtail, Toyota # 90980-11016. Connector Pigtail. Preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Toyota Part Number 90980-11016

3 Way Toyota Coolant Temperature, Engine Temperature, & Thermoswitch Connector on many Toyota, Lexus, Mazda vehicles.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Housing	CONN-100962	3 Way ECT, CLT, & Temperature Sensor Connector Plug, Toyota # 90980-11016
Connector Kit	CONN-76028	3 Way ECT, CLT, & Temperature Sensor Connector Plug Kit, Toyota # 90980-11016
Pigtail	CONN-86028	3 Way ECT, CLT, & Temperature Sensor Connector Plug Pigtail, Toyota # 90980-11016

Applications

Toyota Part Number 90980-11016
3 Way Toyota Coolant Temperature, Engine Temperature, & Thermoswitch Connector on many Toyota, Lexus, Mazda vehicles.
Many other applications not listed

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 16

This product contains the following items:
	» 15 x Labor $0.25/minute Part # LABR-00001
	» 3 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 3 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 3 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 3 Way ECT, CLT, & Temperature Sensor Connector Plug, Toyota # 90980-11016 Part # CONN-100962
