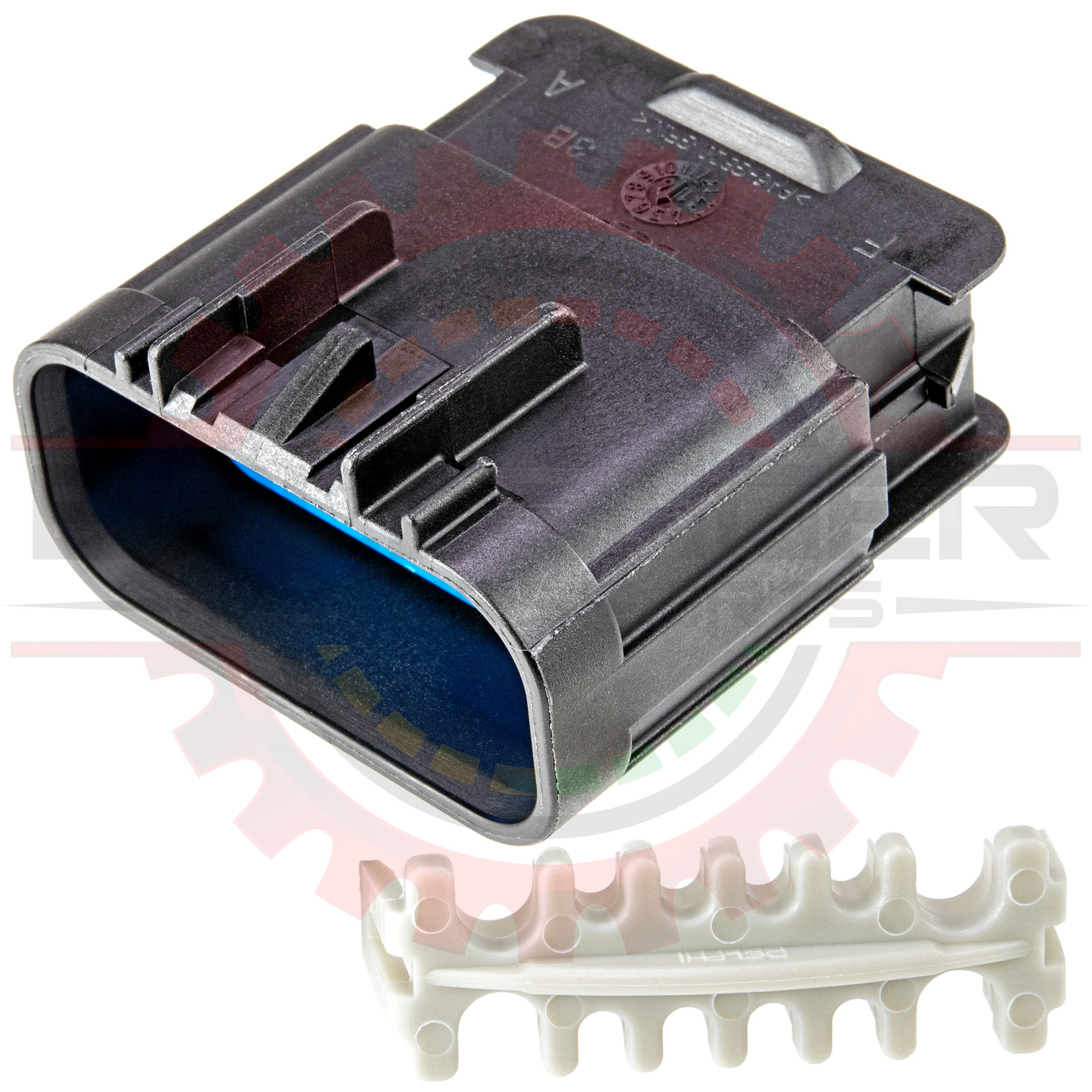

12 Way Hybrid Connector Receptacle for Ignition Coil Banks	Part # CONN-101026

Pricing
1 +	$12.99
25 +	$11.99
100 +	$10.99
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-101026
Availability	In Stock
Qty. Available	169
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

12 Way Hybrid Connector Receptacle for Ignition Coil Banks. Connector ONLY. Terminals and seals not included.

4 high current, 25A+ terminals provide optimal current for extremely high power coils. 8 low current, 15A terminals provide positions for logic wires to coils.

Used on several GM applications such as LSA engines for the high power coil bank connectors.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-101026	12 Way Hybrid Connector Receptacle for Ignition Coil Banks
Connector TPA	CONN-101024	12 Way Hybrid Connector TPA
GT 150 Terminals	CONN-56460	GM Delphi / Packard - GT 150 Male Terminal ( 20 - 16 gauge )
GT 150 Seals	CONN-56555	GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
GT 150 Cavity Plug	CONN-56557	GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
GT 280 Terminals (18-16AWG)	CONN-56660	GM Delphi / Packard - GT 280 Male Terminal, 18-16 gauge [.75-1.00mm2] (Tin/Brass)
GT 280 Terminals (16-12AWG)	CONN-56661	GM Delphi / Packard - GT 280 Male Terminal, 16-12 gauge [1.50-3.00mm2] (Tin/Brass)
GT 280 Seals (18-16AWG)	CONN-56756	GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
GT 280 Seals (14-12AWG)	CONN-55559	GM Delphi / Packard - Weatherpack/Metripack 280 4.3-3.45mm Cable Seal, Blue - (12-10 gauge)
GT 280 Cavity Plug	CONN-56759	GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm
Connector Kit	CONN-76101	12 Way Hybrid Connector Receptacle Kit for Ignition Coil Banks
Connector Pigtail	CONN-86101	12 Way Hybrid Connector Receptacle Pigtail for Ignition Coil Banks
Mating Connectors
Connector Only	CONN-101025	12 Way Hybrid Connector Plug for Ignition Coil Banks
Connector TPA	CONN-101024	12 Way Hybrid Connector TPA
GT 150 Terminals	CONN-56456	GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
GT 150 Seals	CONN-56555	GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
GT 150 Cavity Plug	CONN-56557	GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
GT 280 Terminals (18-16AWG)	CONN-56656	GM Delphi / Packard - GT 280 Female Terminal, 18-16 gauge [.75-1.00mm2] (Tin/Brass)
GT 280 Terminals (16-12AWG)	CONN-56657	GM Delphi / Packard - GT 280 Female Terminal, 16-12 gauge [1.5-3.00mm2] (Tin/Brass)
GT 280 Seals (18-16AWG)	CONN-56756	GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
GT 280 Seals (14-12AWG)	CONN-55559	GM Delphi / Packard - Weatherpack/Metripack 280 4.3-3.45mm Cable Seal, Blue - (12-10 gauge)
GT 280 Cavity Plug	CONN-56759	GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm
Connector Kit	CONN-76100	12 Way Hybrid Connector Plug Kit for Ignition Coil Banks
Connector Pigtail	CONN-86100	12 Way Hybrid Connector Plug Pigtail for Ignition Coil Banks

Applications

Applications:

LSA Coil Bank Connector
many other not listed

Specifications

Parameter Value
Number of Ways 12
Gender Receptacle/Female
Terminal Size 2.8mm
Terminal Size (Secondary) 1.5mm
Terminal Type Flat
Terminal Type (Secondary) Flat
Min. Wire Gauge 20
Max. Wire Gauge 12

This product contains the following items:
	» 1 x 12 Way Hybrid Connector Receptacle ONLY Part # CONN-101023
	» 1 x 12 Way Hybrid Connector TPA Part # CONN-101024
