Home » Shop » Connectors / Harnesses » Bosch » 6 Way MQS Mating Receptacle Connector Kit

6 Way MQS Mating Receptacle Connector Kit	Part # CONN-76141

Pricing
1 +	$11.99
15 +	$10.99
Information
Bmotorsports Part #	CONN-76141
Availability	In Stock
Shipping Weight	0.002 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

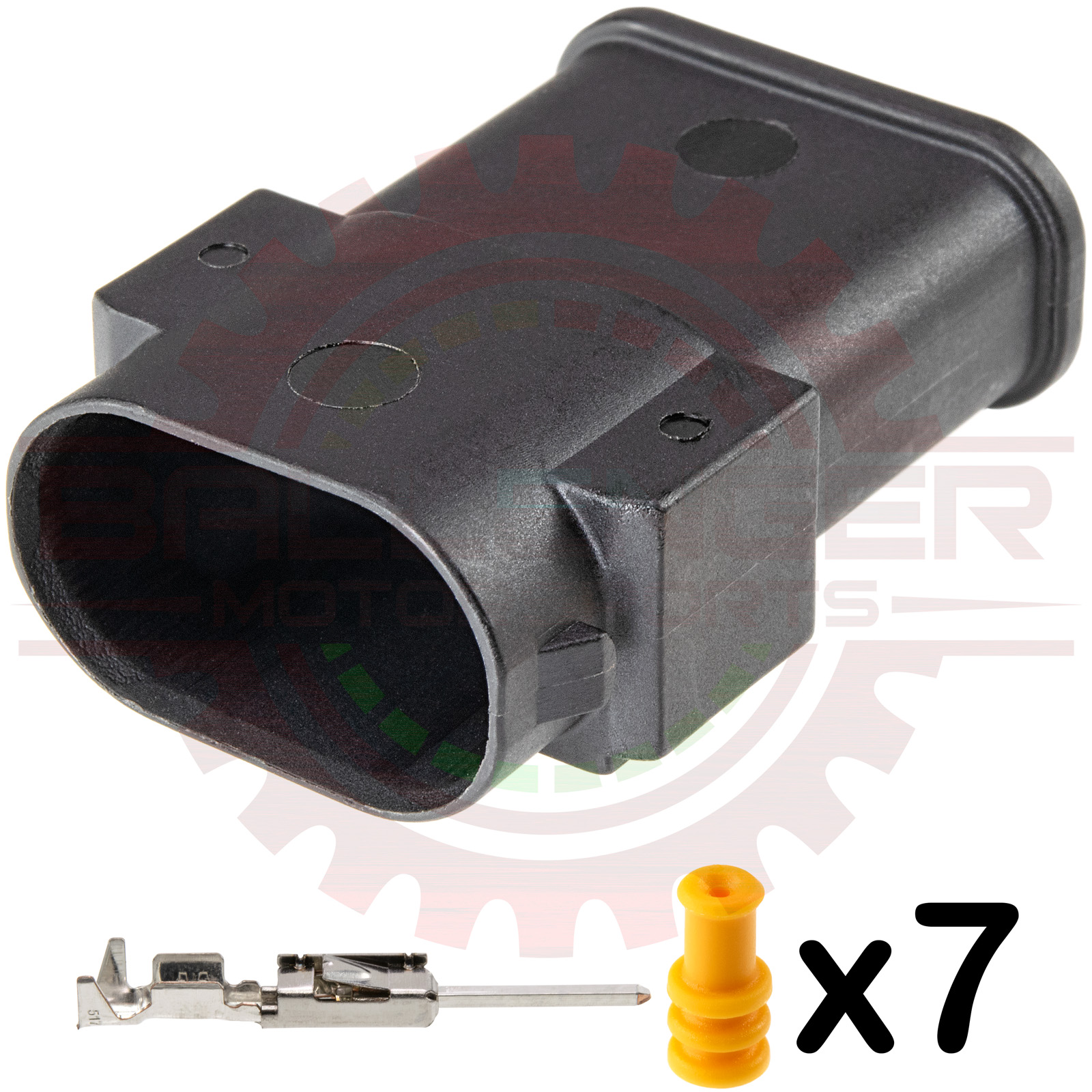

6 Way MQS Mating Receptacle Connector Kit. Connector Kit. Terminals and seals included.

This connector is the device side that simulates the device connection on Mercedes-Benz, Porsche, VW, and BMW Throttle and air pump devices. Many other keyway connectors exist.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-101072	6 Way MQS Mating Receptacle Connector
Terminals	CONN-101130	AMP Micro-Power & Power Quadlok MALE Terminal 0.22 - 0.5 mm2 (24 - 20 AWG)
Seals	CONN-100715	Seal for C7 Corvette oxygen sensor Connectors 26-16AWG (0.22 - 1.0mm2)
Connector Kit	CONN-76141	6 Way MQS Mating Receptacle Connector Kit
Connector Pigtail	CONN-86141	6 Way MQS Mating Receptacle Pigtail
Mating Connectors
Connector Only	CONN-100240	6 Way MQS Connector Plug for European Applications
Terminals	CONN-100241	AMP Micro-Power & Power Quadlok Terminal, 0.22 - 0.5 mm2 (24 - 20 AWG)
Seals	CONN-100715	Seal for C7 Corvette oxygen sensor Connectors 26-16AWG (0.22 - 1.0mm2)
Connector Kit	CONN-76020	6 Way MQS Connector Plug Kit for European Applications
Connector Pigtail	CONN-86020	6 Way MQS Connector Plug Pigtail for European Applications

Applications

Applications:

BMW 1150gs motorcycle Hall effect sensor connector
some off-road UTV Throttle Body Connections

Specifications

Parameter Value
Number of Ways 6
Gender Receptacle/Female
Terminal Size 0.63mm
Terminal Type Flat
Min. Wire Gauge 24
Max. Wire Gauge 20

This product contains the following items:
	» 7 x Seal for C7 Corvette oxygen sensor Connectors 26-16AWG (0.22 - 1.0mm2) Part # CONN-100715
	» 1 x 6 Way MQS Mating Receptacle Connector Part # CONN-101072
	» 7 x AMP Micro-Power & Power Quadlok MALE Terminal 0.22 - 0.5 mm2 (24 - 20 AWG) Part # CONN-101130
