ECUMaster 6/12 button CAN Keypad Part # TUNE-02019

ECUMaster 6/12 button CAN Keypad ECUMaster 6/12 button CAN Keypad
Pricing
1 + $399.00
Information
Bmotorsports Part # TUNE-02019
Availability Special Order
Shipping Weight 0.4375 Lbs.
Shipping Location VA   (Shipping Info)
Options
Number of Buttons
Ship Estimator Quantity:

Description

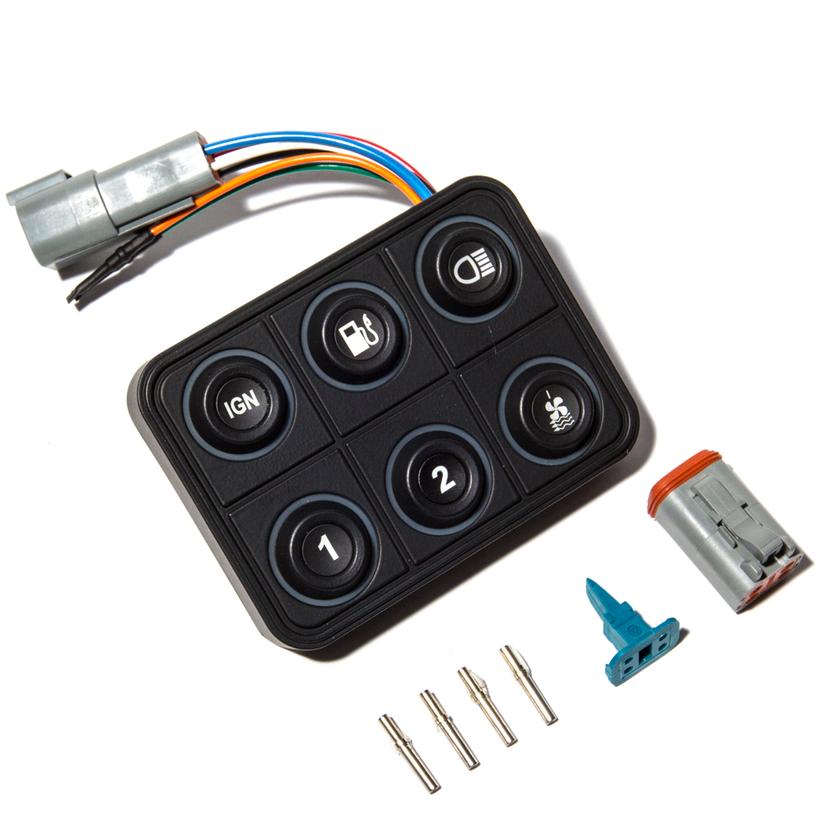

  • 6 button intelligent programmable CAN keypad for use with EMU Black and/or PMU16, with removable key inserts.
  • 12 button intelligent programmable CAN keypad for use with EMU Black and/or PMU16, with removable key inserts
6 Button
CAN Keyboards offer drivers control of key ECU and PMU functions. Designed to withstand the harshest conditions, ECUMaster CAN Keyboards are completely immune to water, mud, and fuel.
It is worth mentioning that CAN keyboards offer a massive simplification and reduction of wiring in comparison to traditional switch panel, requiring only 4 wires for the entire keyboard.
Built-in LEDs indicate button states (red, green, amber) and also serve as backlighting for the keyboard.
The behavior of each key is fully configurable in the EMU BLACK or PMU client software. Thanks to a unique system of interchangeable key inserts, it is easy to rearrange the keypad layout using existing inserts. Custom inserts can also be supplied.

12 Button
All keyboards use CAN OPEN protocol to communicate with EMU BLACK and PDM.
All keys are backlighted in 3 colours GREEN, ORANGE and RED. The color indicates current state of the key.
In EMU BLACK there are several option for each key (non latching, latching, and multistate (off, on1, on2))
If PDM there are much more options like radio button type (eg. from group of 3 buttons only one could be active).
Custom icons are avaialble. Keyboards are IP67, 12 keys keyboard uses 15mm inserts, 4 and 8 keys one uses 24mm inserts.
