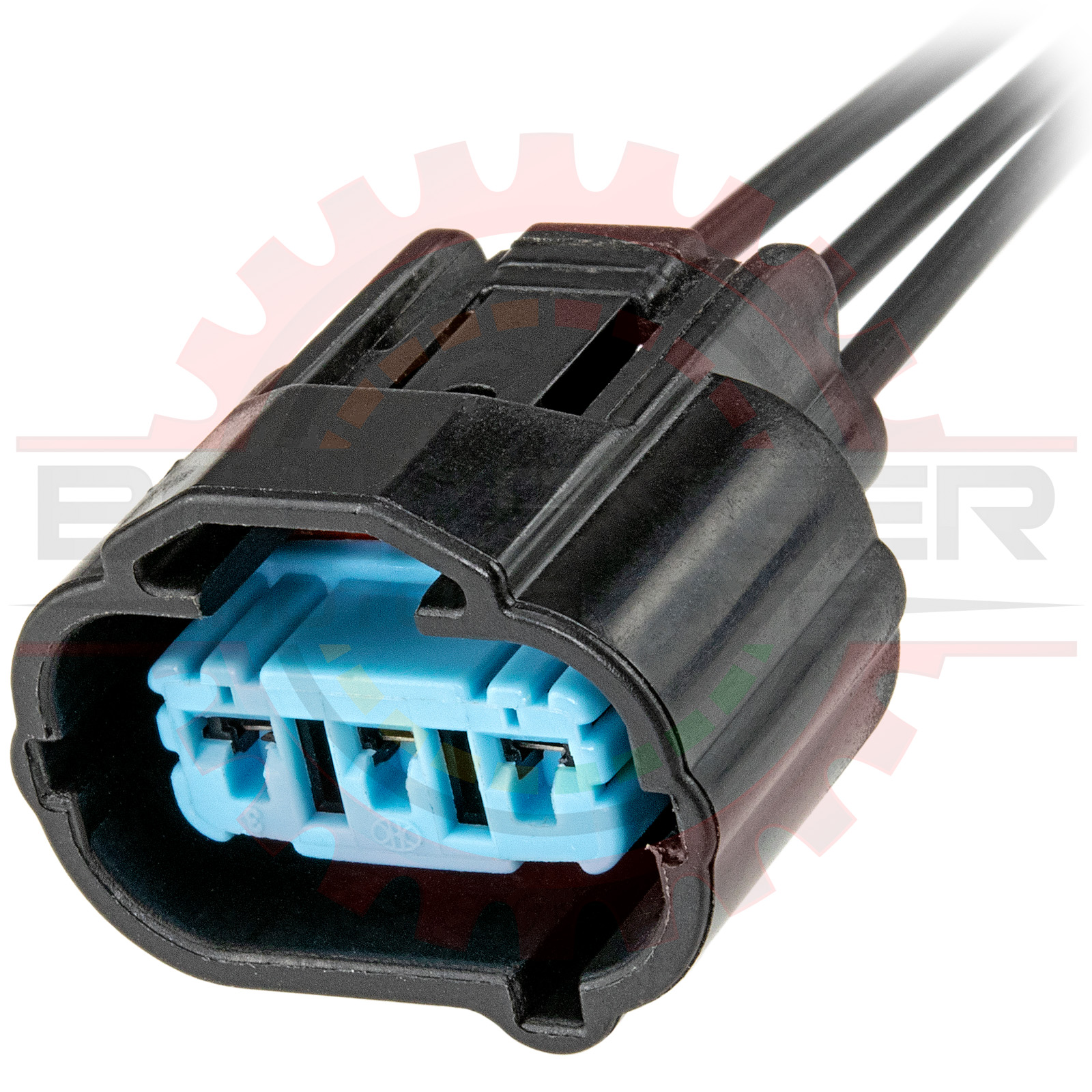

3 Way HX090 Connector Pigtail for ATV Tail Light	Part # CONN-86137

Pricing
1 +	$9.99
25 +	$9.49
50 +	$9.25
100 +	$9.09
Information
Bmotorsports Part #	CONN-86137
Availability	In Stock
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

3 Way HX090 connector Kit for ATV tail light. A complete pigtail is included.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Housing	CONN-101176	3 Way HX090 Connector Assembly for ATV Tail Light
Terminals	CONN-100452	Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Kit	CONN-76137	3 Way HX090 Connector Kit for ATV Tail Light
Connector pigtail	CONN-86137	3 Way HX090 Connector Pigtail for ATV Tail Light

Applications

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 16

This product contains the following items:
	» 15 x Labor $0.25/minute Part # LABR-00001
	» 3 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 3 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 3 x Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece Part # CONN-100452
	» 1 x 3 way HX090 connector housing for ATV tail light Part # CONN-101174
	» 1 x 3 way HX090 Front Lock Part # CONN-101175
