NB Miata/K Series Honda 72 Way ECU Header Receptacle	Part # CONN-100752

Pricing
1 +	$59.99
Information
Bmotorsports Part #	CONN-100752
Availability	Special Order
Shipping Weight	0.1 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

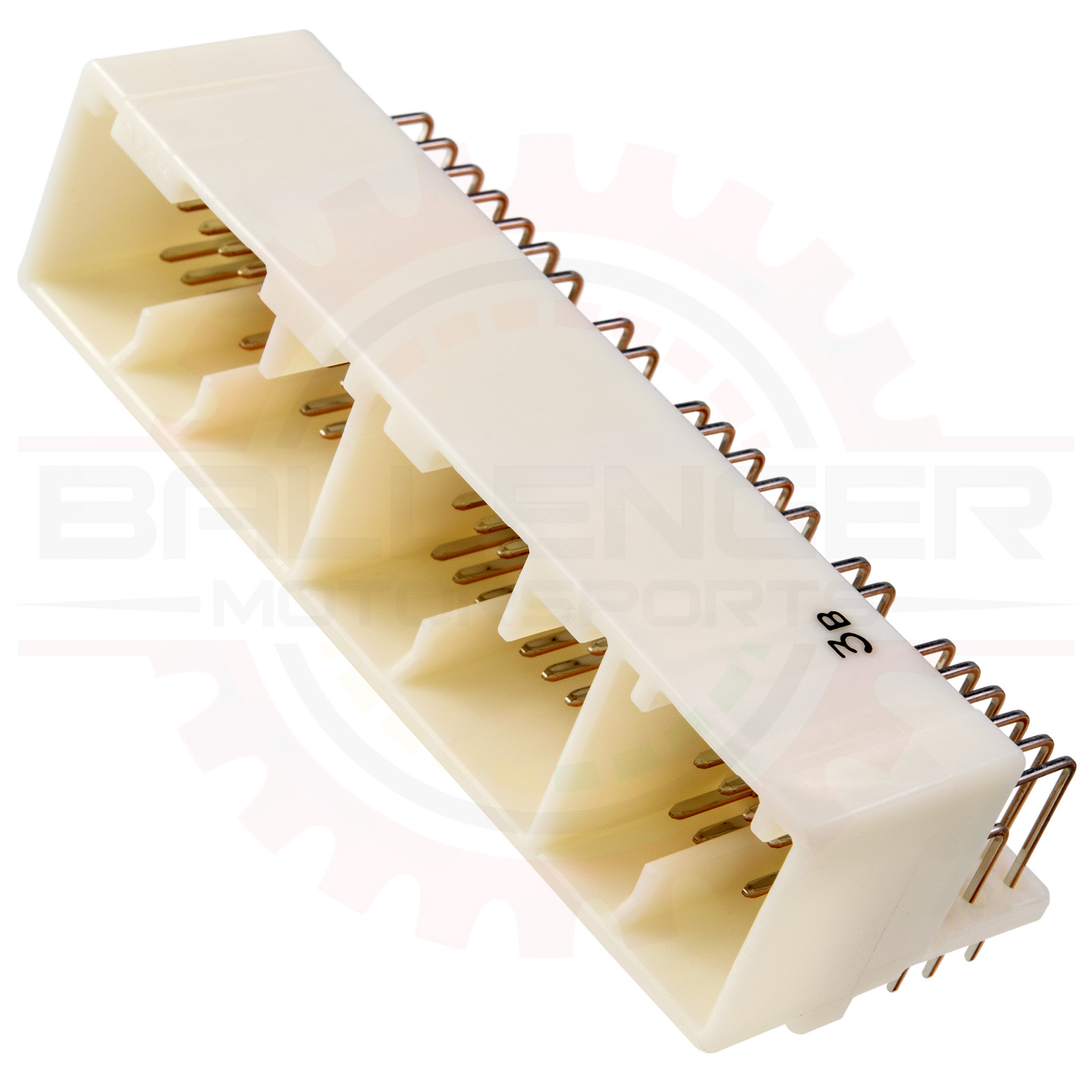

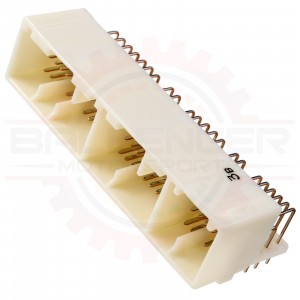

NB Miata/K Series Honda 72 Way ECU Header Receptacle. Connector ONLY. Terminals not included.

This is the header connector which is normally soldered directly to the ECU circuit board of several K Series Honda applications, the NB Miata, and some Haltech Pro Plugin units. Sometimes these break or a user needs to make a new harness or a new ECU connection.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
NB Miata 72 Way ECU Header	CONN-100752	NB Miata/K Series Honda 72 Way ECU Header Receptacle
K Series 125 Way ECU Header	CONN-100755	K Series Honda 125 way ECU Header Receptacle
K Series 108 Way ECU Header	CONN-100757
K Series 86 Way ECU Header	CONN-100759	K Series Honda 86 way ECU Header Receptacle
Mating Parts
Terminals	CONN-100753	ECU Female Terminals, 0.3mm2 - 0.85mm2 ( 22 - 18 AWG)
17 Way Connector	CONN-100749	Miata/K Series Honda/Toyota 17 way ECU Plug
22 Way Connector	CONN-100756
24 Way Connector	CONN-100750	Miata/K Series Honda 24 way ECU Plug
31 Way Connector	CONN-100751	Miata/K Series Honda 31 way ECU Plug
17 Way Connector Kit	CONN-75910	Miata/K Series Honda 17 way ECU Plug Kit
22 Way Connector Kit	CONN-75989
24 Way Connector Kit	CONN-75911	Miata/K Series Honda 24 way ECU Plug Kit
31 Way Connector Kit	CONN-75912	Miata/K Series Honda 31 way ECU Plug Kit
17 Way Connector Pigtail	CONN-85910
22 Way Connector Pigtail	CONN-85989
24 Way Connector Pigtail	CONN-85911
31 Way Connector Pigtail	CONN-85912

Applications

Several K Series Honda / Acura Applications
Some other applications not specifically listed

Specifications

Parameter Value
Number of Ways 72
Gender Receptacle/Female
Terminal Size 1mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 18
