Deutsch DT/AT 12 Way Connector Receptacle Pigtail	Part # CONN-86176

Pricing
1 +	$16.49
Information
Bmotorsports Part #	CONN-86176
Availability	In Stock
Shipping Weight	0.1 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

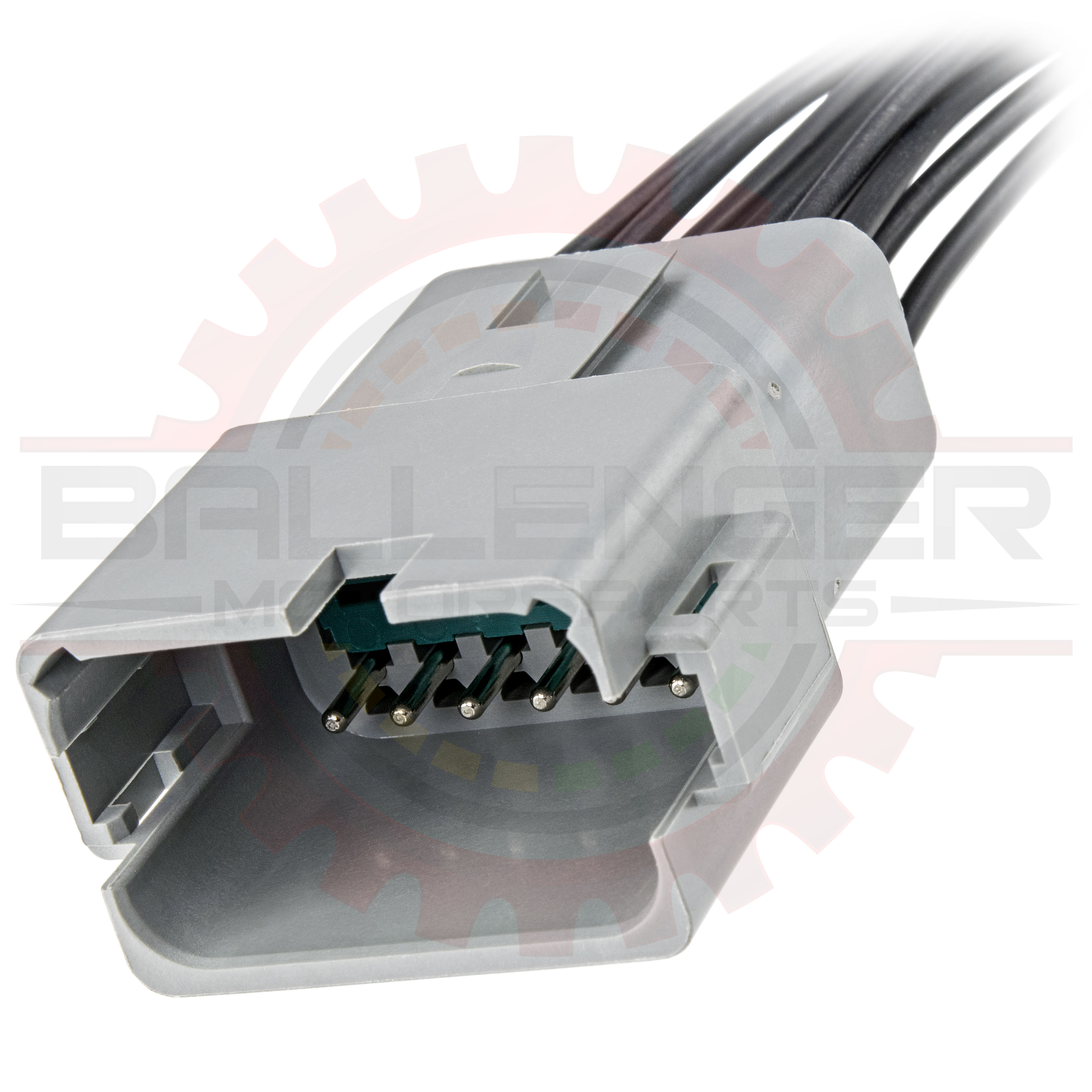

Deutsch DT/AT 12 Way Connector Receptacle Pigtail. Preassembled and includes connector, lock, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100357	Deutsch Size 16 Solid Male Pin Terminals, 0.5-1.5mm2 (20-16 AWG)
Terminals	CONN-100367	Deutsch Size 16 Stamped & Formed Socket Female Nickel Plated Terminal, 0.5-1mm2 (20-16AWG)
Cavity Plug	CONN-56159	GM Delphi / Packard - Metripack 150.2 Seal Plug for machine insertion
Connector	CONN-100427	Deutsch DT/AT 12 Way Connector Receptacle Assembly
Connector Kit	CONN-76176	Deutsch DT/AT 12 Way Connector Receptacle Kit
Connector Pigtail	CONN-86176	Deutsch DT/AT 12 Way Connector Receptacle Pigtail
Mating Parts
Terminals	CONN-100358	Deutsch Size 16 Solid Female Socket Terminals, 0.5-1.5mm2 (20-16 AWG)
Terminals	CONN-100368	Deutsch Size 16 Stamped & Formed Pin Male Nickel Plated Terminal, 0.5-1mm2 (20-16AWG)
Cavity Plug	CONN-56159	GM Delphi / Packard - Metripack 150.2 Seal Plug for machine insertion
Connector	CONN-100423	Deutsch DT/AT 12 Way Connector Plug Assembly
Connector Kit	CONN-76175	Deutsch DT/AT 12 Way Connector Plug Kit
Connector Pigtail	CONN-86175	Deutsch DT/AT 12 Way Connector Plug Pigtail
Mating Parts Kit
Mating Parts Kit	CONN-200068	Deutsch DT/AT 12 Way Mating Pair Kit

Specifications

Parameter Value
Number of Ways 12
Gender Receptacle/Female
Terminal Size 1.6mm
Terminal Type Round
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 60 x Labor $0.25/minute Part # LABR-00001
	» 12 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 12 x Deutsch Size 16 Solid Male Pin Terminals, 0.5-1.5mm2 (20-16 AWG) Part # CONN-100357
	» 1 x Deutsch DT/AT 12 Way Receptacle Wedgelock Part # CONN-100426
	» 1 x Deutsch DT/AT 12 Way Connector Receptacle Part # CONN-100425
