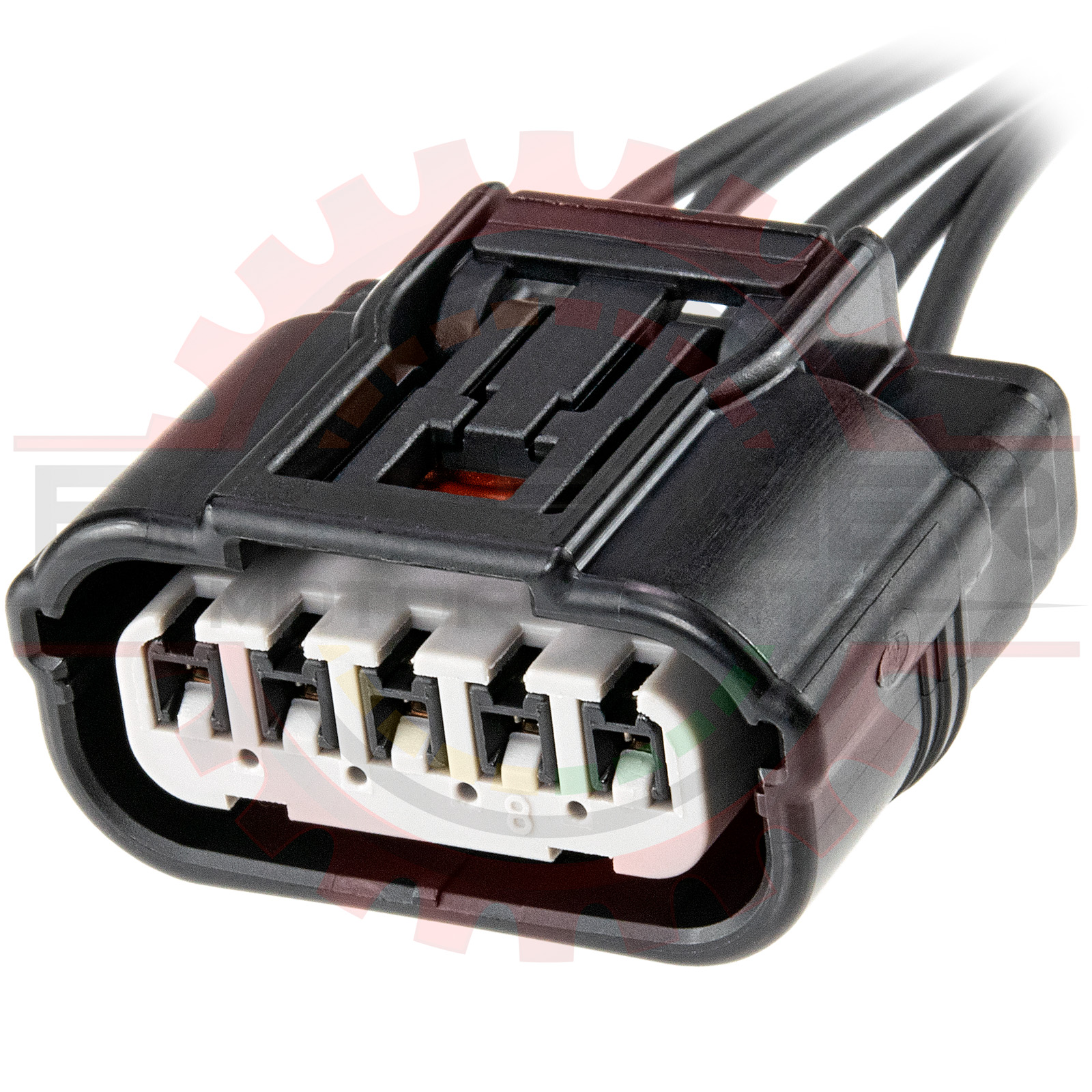

5 Way Sumitomo HV040 Plug Pigtail for Honda MAF Connections Part # CONN-86143
5 Way Sumitomo HV040 Plug Pigtail for Honda MAF Connections 5 Way Sumitomo HV040 Plug Pigtail for Honda MAF Connections 5 Way Sumitomo HV040 Plug Pigtail for Honda MAF Connections
Pricing
1 + $9.49
25 + $8.99
100 + $7.99
Information
Bmotorsports Part # CONN-86143
Availability In Stock
Shipping Weight 0.02 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

5 Way Sumitomo HV040 Plug Pigtail for Honda MAF Connections. A completed pigtail is provided. Preassembled and includes connector, lock, seals, and terminals with crimped wire leads.


Associated & Mating Parts

Relationship Part # Description
Associated Connectors
Connector Only CONN-1011845 Way Sumitomo HV040 Plug Assembly for Honda MAF Connections
Terminals CONN-100465Sumitomo HX 040 Female Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals CONN-100552Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Kit CONN-761435 Way Sumitomo HV040 Plug Kit for Honda MAF Connections
Connector Pigtail CONN-861435 Way Sumitomo HV040 Plug Pigtail for Honda MAF Connections
Mating Connector
Connector Only CONN-101217
Terminals CONN-100558Sumitomo HX 040 Male Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals CONN-100552Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Kit CONN-76179
Connector Pigtail CONN-86179
Extension
5 Way Connector Extension CONN-86180

Applications


Specifications

Parameter Value
Number of Ways5
GenderPlug/Male
Terminal Size1mm
Terminal TypeFlat
Min. Wire Gauge22
Max. Wire Gauge20

This product contains the following items:
20AWG Automotive TXL Wire Black» 5 x 20AWG Automotive TXL Wire Black
Part # WIRE-00458S
Labor $0.25/minute» 15 x Labor $0.25/minute
Part # LABR-00001
Sumitomo HX 040 Female Terminal 0.3 - 0.5mm2 (22 - 20 AWG)» 5 x Sumitomo HX 040 Female Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Part # CONN-100465
Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)» 5 x Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Part # CONN-100552
5 Way Sumitomo HX HV 040 Plug Front Lock» 1 x 5 Way Sumitomo HX HV 040 Plug Front Lock
Part # CONN-101183
5 Way Sumitomo Hv040 Connector for MAF Connections» 1 x 5 Way Sumitomo Hv040 Connector for MAF Connections
Part # CONN-101182
