Description

This is a production quality hand crimp tool that can be purchased for the terminals listed below.

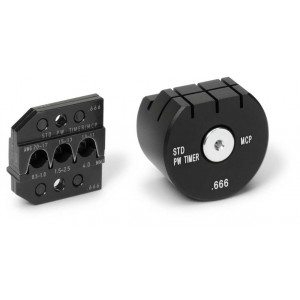

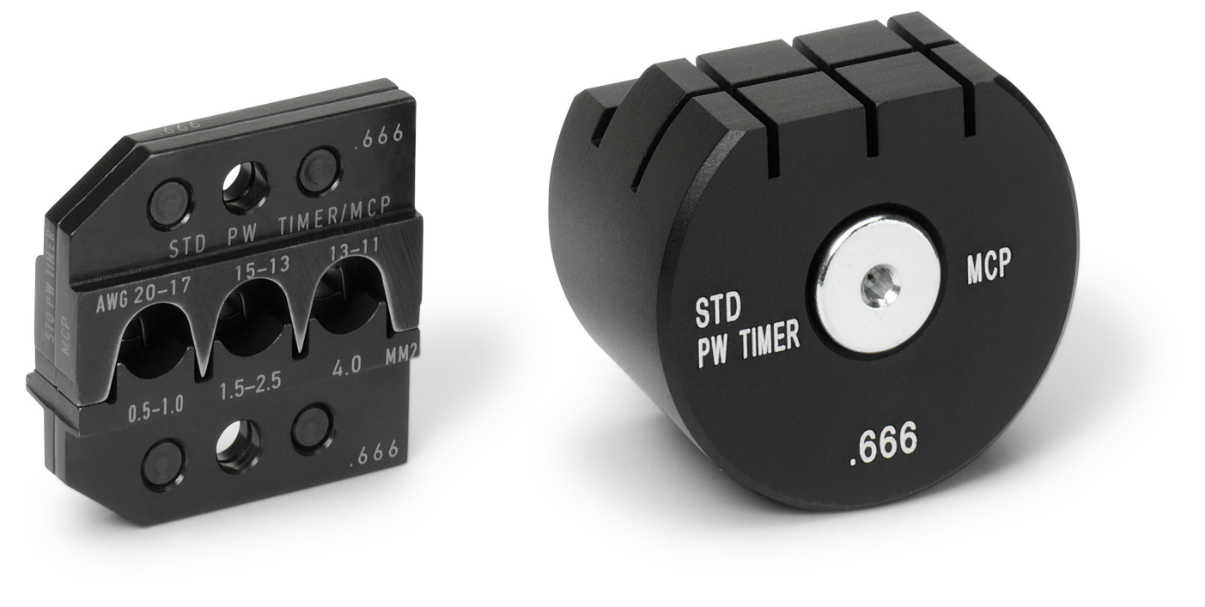

Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Standard Power Timer and MCP Terminal, Cable Range 0.50 - 4.00 SQ-MM, Cable Insulation Range 1.40 - 4.50 mm.
Must be used with the following crimp handles:
Production Quality Hand Crimper

Example pictures of crimper with dies are below. Crimper is sold seperately.




Cross References

Female Terminal, TE MCP 6.3, 1.5-2.5 mm2, 1241414-1 CONN-100332
Female Terminal, TE MCP 6.3, 4.0 mm2, 1241416-1 CONN-100333

Terminal technical info:

Terminal P/N	964309	964311	964313
Terminal P/N	969041	969043	969045
Cable Range SQ-MM	0.50 - 1.00	1.00 - 2.50	2.5 - 4.00
Cable Range AWG	20 - 17	15 - 13	13 - 11
Insulation Range mm	1.40 - 2.70	2.20 - 3.70	3.40 - 4.50
Insulation Range Inch	0.055 - 0.106	0.086 - 0.145	0.134 - 0.177
Contact Type	Tab and Female
