Description

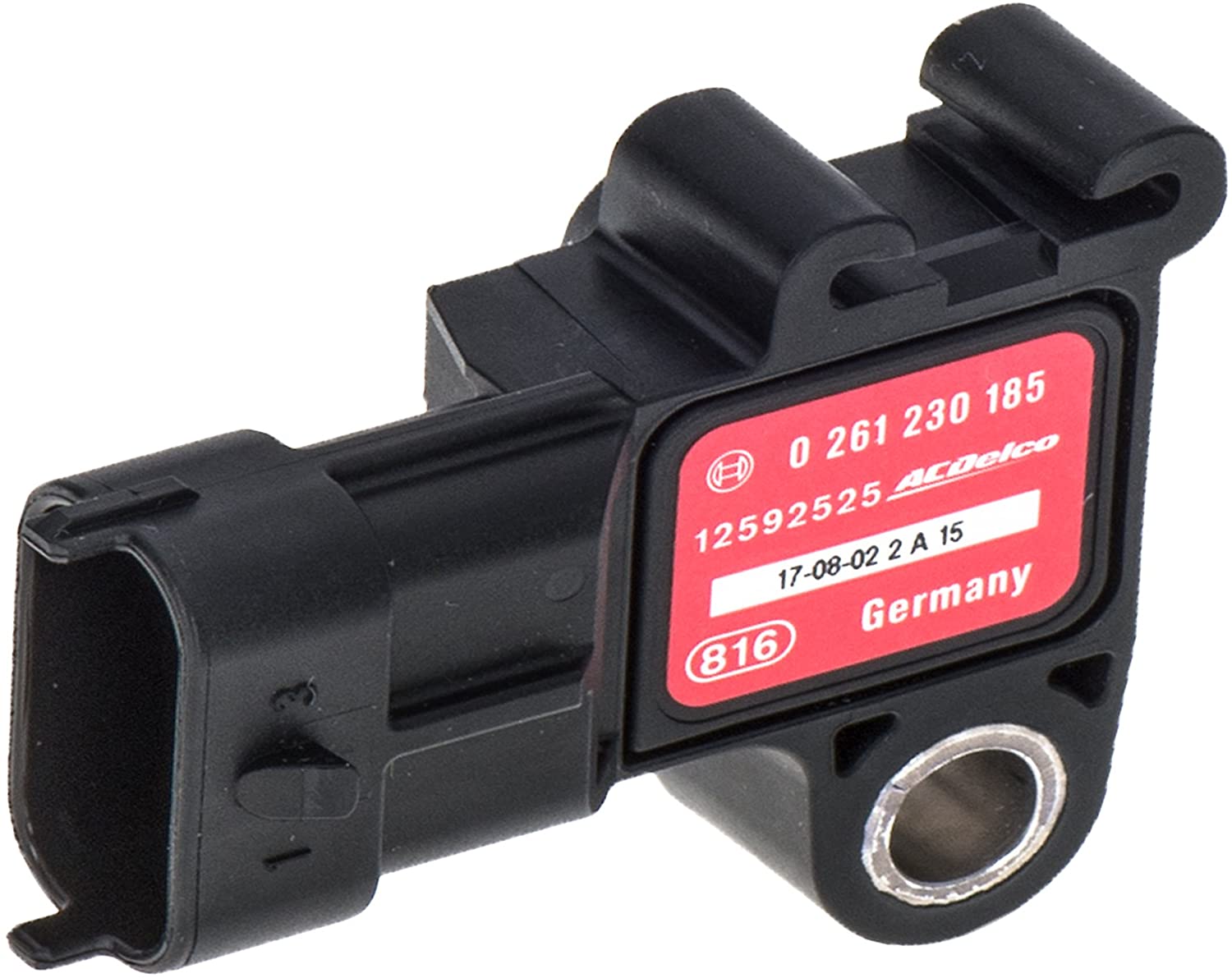

This Genuine Bosch sensor is used in vehicles worldwide and regarded by many as the most accurate and precise volume production sensor. The Bosch TMap is an excellent sensor for forced induction applications such as turbocharged and supercharged vehicles. 3 bar Map sensors are not intended for naturally aspirated applications.

Commonly used on LSA & LT Style GM engines

Specifications

Pinout:
1 power (5v)
2 ground
3 signal

MAP Sensor Linear (312.50)kpa
MAP Sensor Offset (-11.25)kpa

We are awaiting final specification data from Bosch on this particular item but customer information indicates the following calibration with linearity between points:

P1 -> 13.75 kPa at 0.40V
P2 -> 279.38 kPa at 4.65V
