Description

This is a production quality hand crimp tool that can be purchased for the terminals listed below.

If you wish to buy more than the available quantity listed, please email us at sales@bmotorsports.com so that we can assist you with your order.

Once out of stock, the part will be listed as "Special Order" and is subject to 8-12 weeks standard lead time.
The part may however already be on order and due to arrive sooner, feel free to contact us for more details.

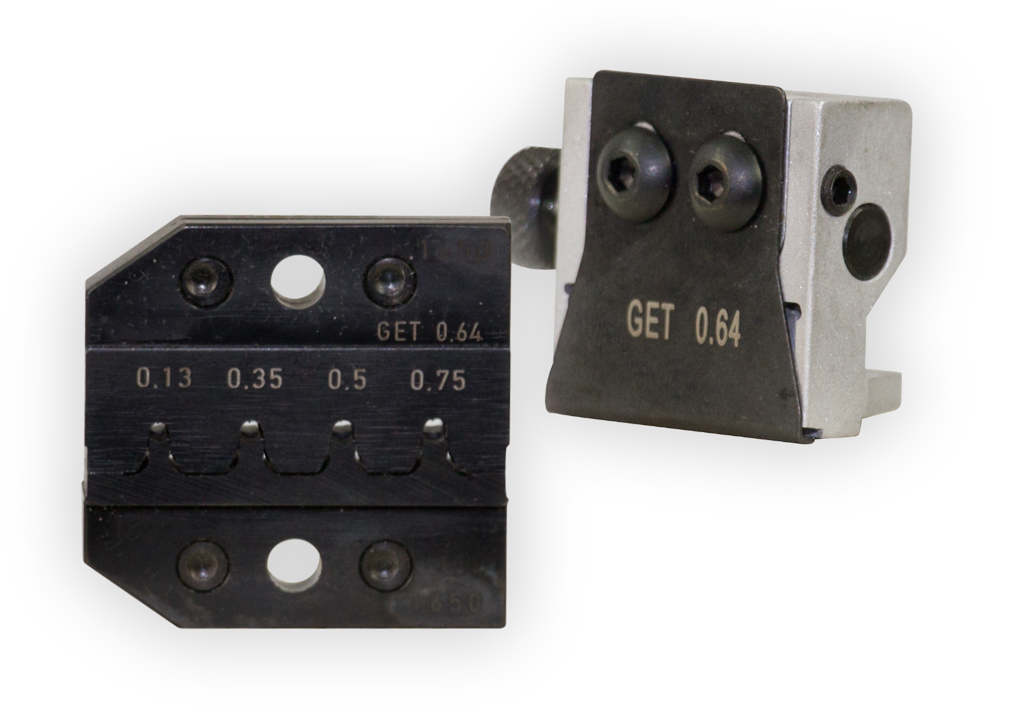

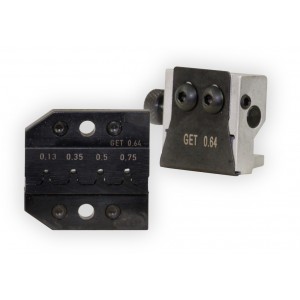

Complete box with 1 die set, 1 locator with integrated wirestop/terminal holder spare parts and reference data sheet for crimping of Delphi / TE GET 0.64 Terminals 0.13-0.75mm2


Must be used with the following crimp handles:
Production Quality Hand Crimper

Example pictures of crimper with dies are below. Crimper is sold seperately.




Cross References

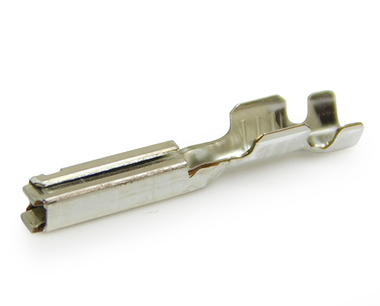

Female Terminal, TE GET, 0.50mm²-0.75mm² CONN-100698


Terminal technical info:

Terminal P/N	1564880-1, 13742841	1719957-1, 13714557	1719958-1, 13714558, CONN-100698
Material	Copper Alloy	Copper Alloy	Copper Alloy
Plating	Tin
Cable Range SQ-MM	0.13	0.22 - 0.35	0.5 - 0.75
Cable Range AWG	26 AWG	24-22 AWG	20-18 AWG
Contact Type	Female
